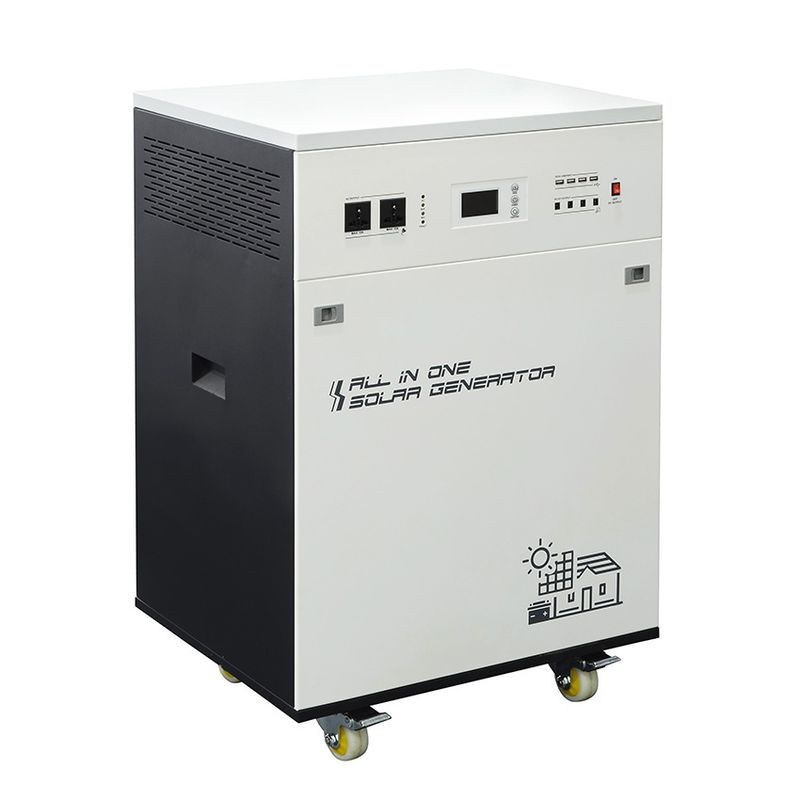

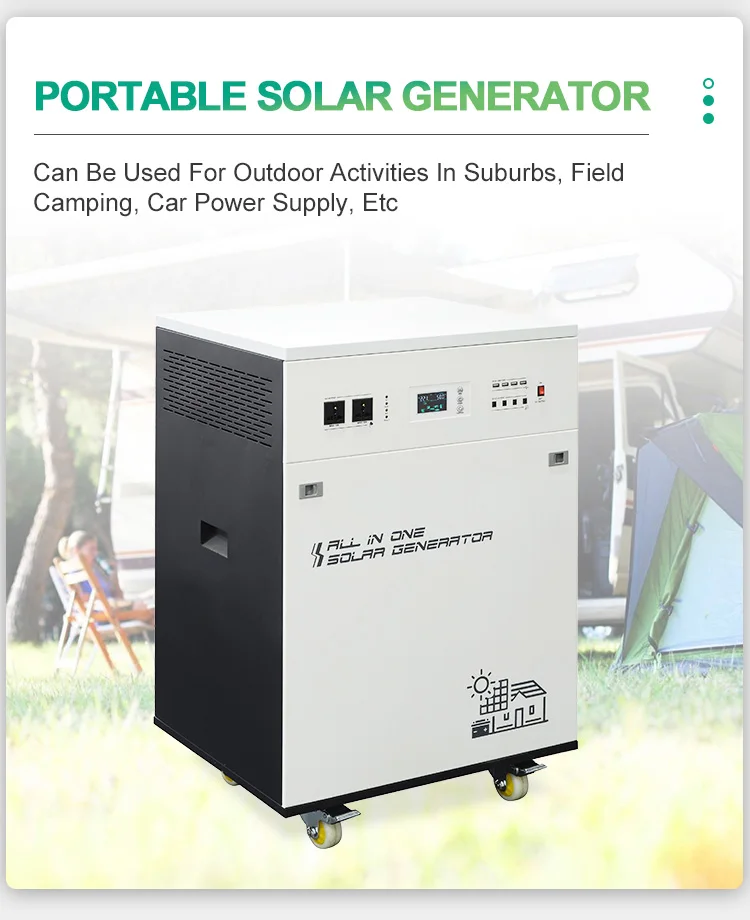

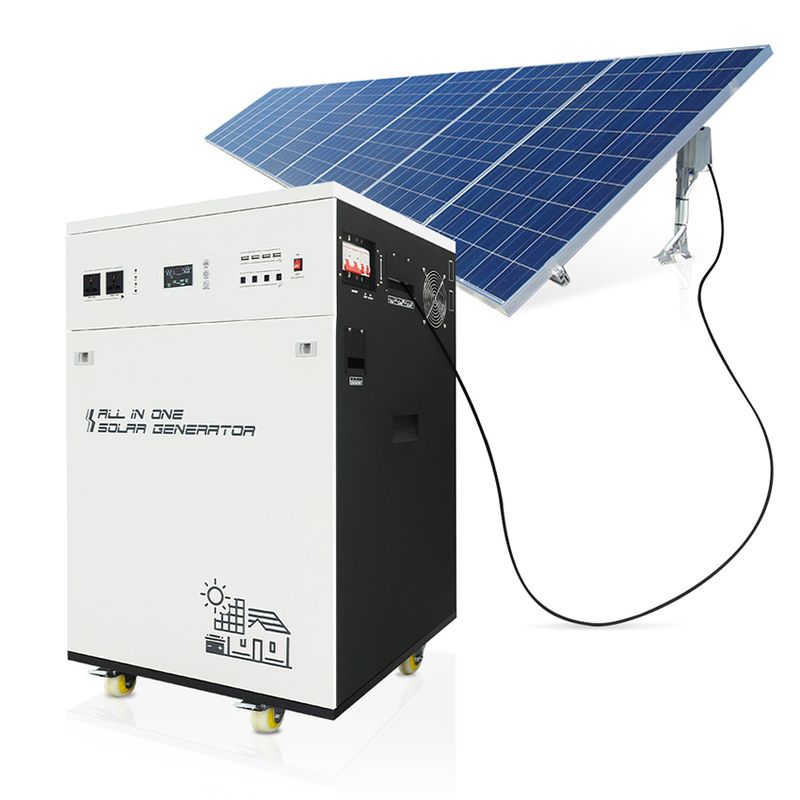

【Hot】1Kw 2Kw 1500W 5Kw 3Kw Portable Solar Generator 2000w 6000w 3000w 5000w 4000w 7000w 1000w Home Solar Generator Portable 220v
Includes all taxes
Meet your Seller
-
$978.59Sold by BILLIONS BIRDS
Description
TTN-ESS Series Inverter

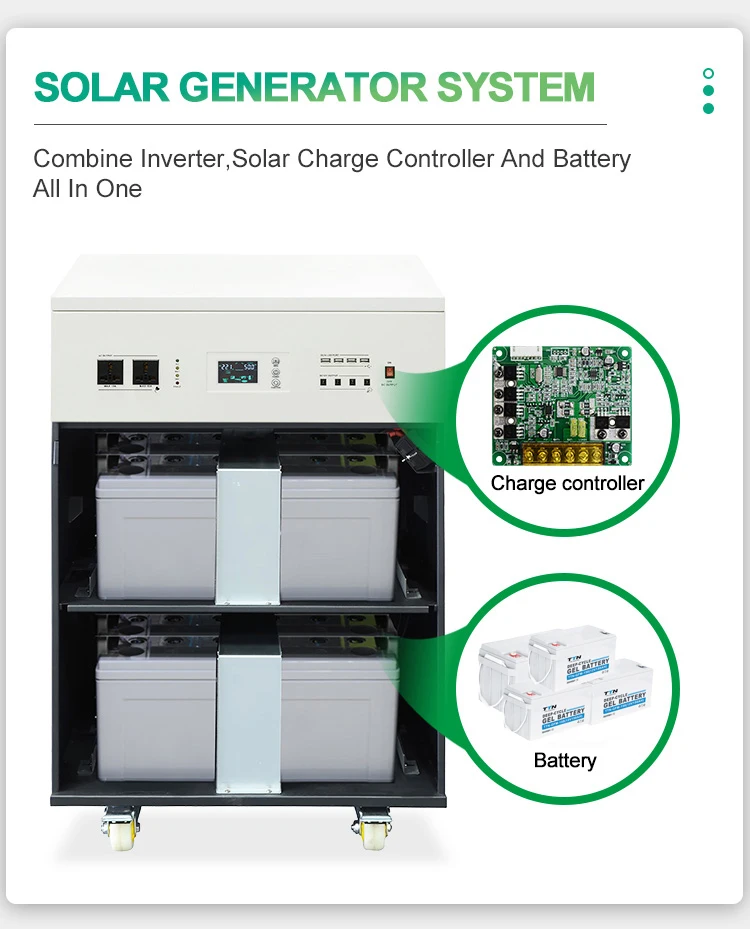

2. Combine inverter/solar controller/battery all in one.

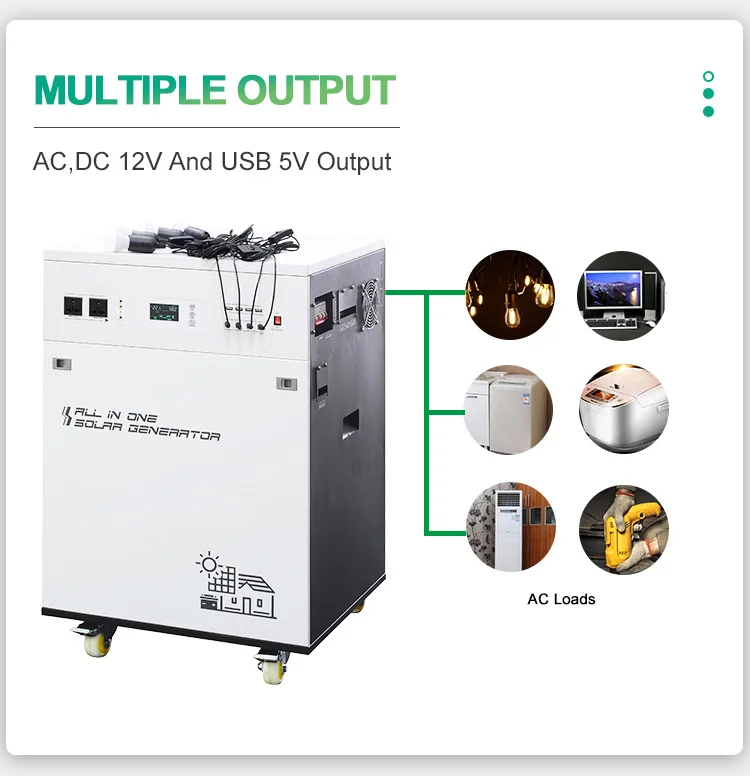

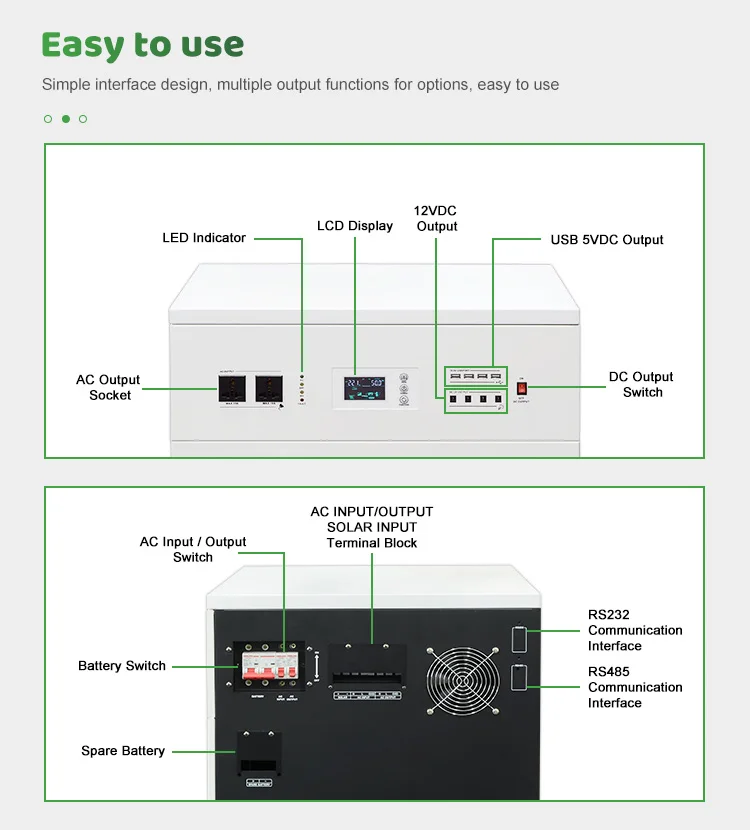

3. Multiple output: 2*AC output socket, 4*DC 12V, 4*USB.
4. Working mode AC prior/ECO mode/Solar prior selectable.
5. AC charging current 0-30A selectable.
6. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery
7. Adding fault code to monitor real-time work situations.

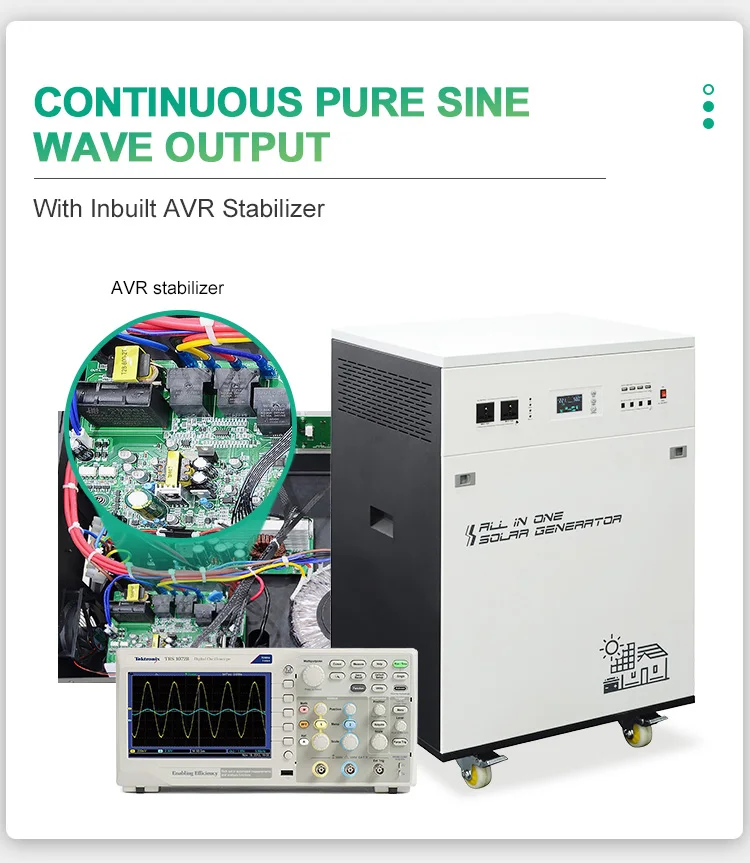

8. Continuous stable pure sine wave output with inbuilt AVR stabilizer.
9. Inbuilt automatic AC charger and AC mains switcher, stwitch time ≤ 4ms.
10. RS485/MOBILE APP(WIFI or GPRS) remote mornitoring.
|
Specification
|
||||||||||||||||
|
Model : TTN-ESS
|
301P
|
501P
|
102P
|
152P/W
|
202P/W
|
302P/W
|
||||||||||
|
Capacity
|
Rated power
|
300W
|
500W
|
1000W
|
1500W
|
2000W
|
3000W
|
|||||||||
|
Peak power（20ms）
|
900VA
|
1500VA
|
3000VA
|
4500VA
|
6000VA
|
9000VA
|
||||||||||
|
Input
|
Stardard battery voltage
|
12VDC
|
24VDC
|
|||||||||||||
|
AC input voltage range
|
73~138VAC(110VAC)/83~148VAC(120VAC)/145~275VAC(220VAC)/ 155~285VAC(230VAC)/165~295VAC(240VAC)
|
85VAC~138VAC (110VAC) / 95VAC~148VAC (120VAC) / 170VAC~275VAC (220VAC)/ 180VAC~285VAC (230VAC)/ 190VAC~295VAC (240VAC)
|
||||||||||||||
|
AC input frequency range
|
45Hz~55Hz（50Hz);55Hz~65Hz（60Hz)
|
|||||||||||||||
|
Output
|
Conversion efficiency
|
≥85%(Battery mode); >99%(AC mode)
|
||||||||||||||
|
AC Output voltage
|
110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode); 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% /
240VAC±10%(AC mode) |
|||||||||||||||
|
AC Output frequency
|
50/60Hz±1%(Battery mode); Tracking Automatically(AC mode)
|
|||||||||||||||
|
AC Output waveform
|
Pure Sine Wave
|
|||||||||||||||
|
THD
|
≤3%（Linear load)
|
|||||||||||||||
|
DC Output voltage
|
4*DC 12V; 2*USB（5V）
|
4*DC 12V; 4*USB（5V）
|
||||||||||||||
|
solar charger （Optional）
|
Charging mode
|
PWM
|

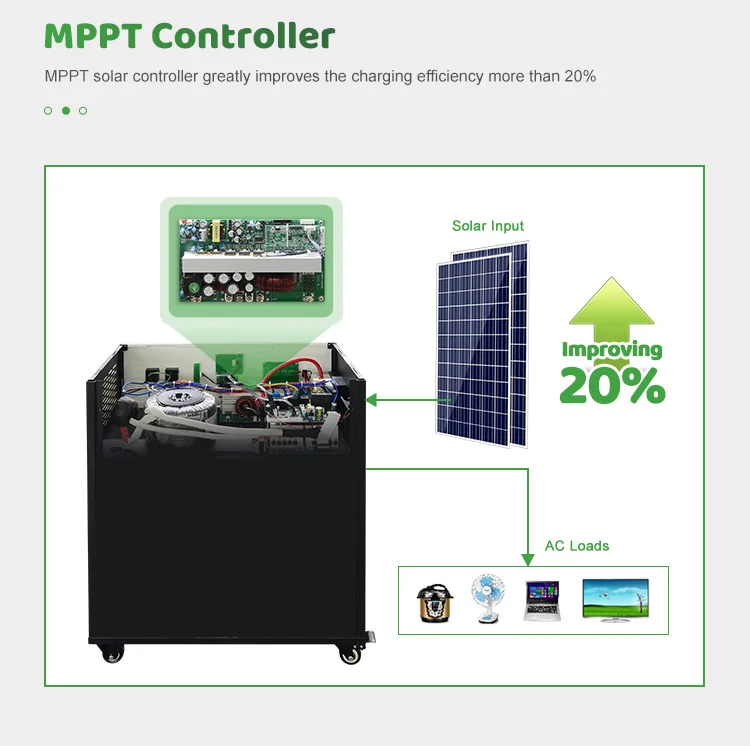

PWM/MPPT
|
|||||||||||||
|
Max PV input voltage(Voc)
(At the lowest temperature) |
50V
|
PWM: 50V; MPPT: 150V
|
PWM: 100V; MPPT: 150V
|
|||||||||||||
|
PV input voltage range
|
15V~44V
|
PWM: 30V~44V; MPPT: 30V~120V
|
PWM: 60V-88V; MPPT: 60V-120V
|
|||||||||||||
|
Charge & discharge current
|
20A
|
40A
|
60A
|
|||||||||||||
|
Max PV input power
|
280W
|
560W
|
1680W
|
3360W
|
||||||||||||
|

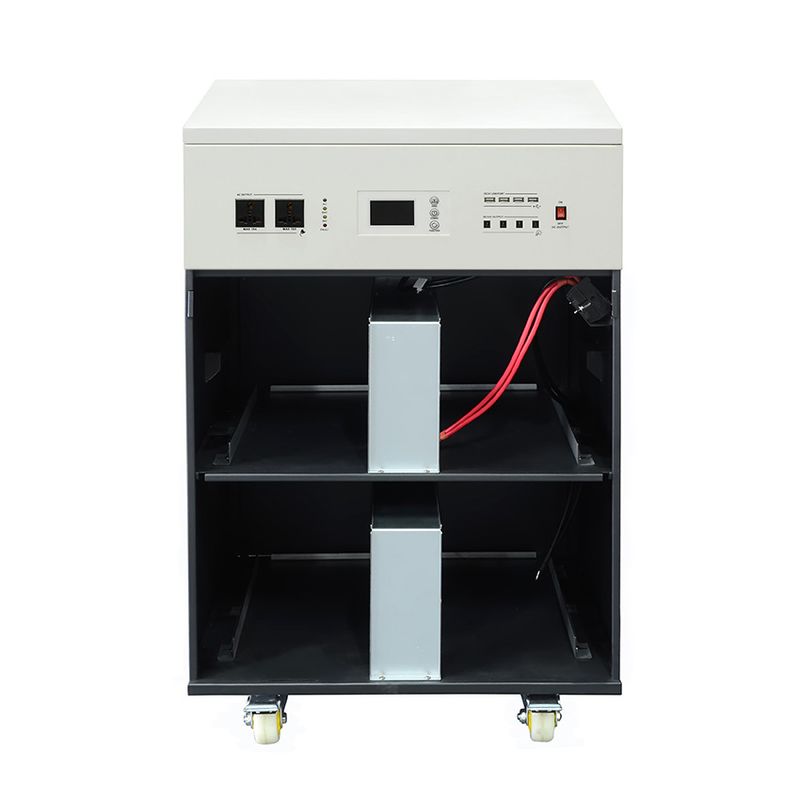

Inbuilt battery
|
Capacity
|
1*50AH
|
1*100AH
|
2*200AH
|
4*200AH
|
|||||||||||
|
Battery size(LxWxH)/pcs
|
229*138*210(228)
|
407*174*210(240)
|
522*240*218（244）
|
|||||||||||||
|
Physical
|
Dimention L x W x H(mm)
|
358*192*390
|
488*232*450
|
560*350*928
|
610*535*960
|
|||||||||||
|
Net weight(kg)(without battery)
|
8
|
10
|
16
|
37
|
39
|
43
|
53
|
|||||||||
|
Packing
|
Dimention L x W x H(mm)
|
400*252*500
|
550*295*625
|
638*427*1063
|
688*612*1093
|
|||||||||||
|
Gross weight(kg)(without battery)
|
11
|
13
|
21
|
47
|
49
|
53
|
68
|
|||||||||
|
Quantity/CTN
|
1pcs per wooden case
|
|||||||||||||||
|
Model : TTN-ESS
|
152P8/W8
|
202P8/W8
|
302P8/W8
|
402P/W
|
502P/W
|
602P/W
|
702P/W
|
|||||||||
|
Capacity
|
Rated power
|
1500W
|
2000W
|
3000W
|
4000W
|
5000W
|
6000W
|
7000W
|
||||||||
|

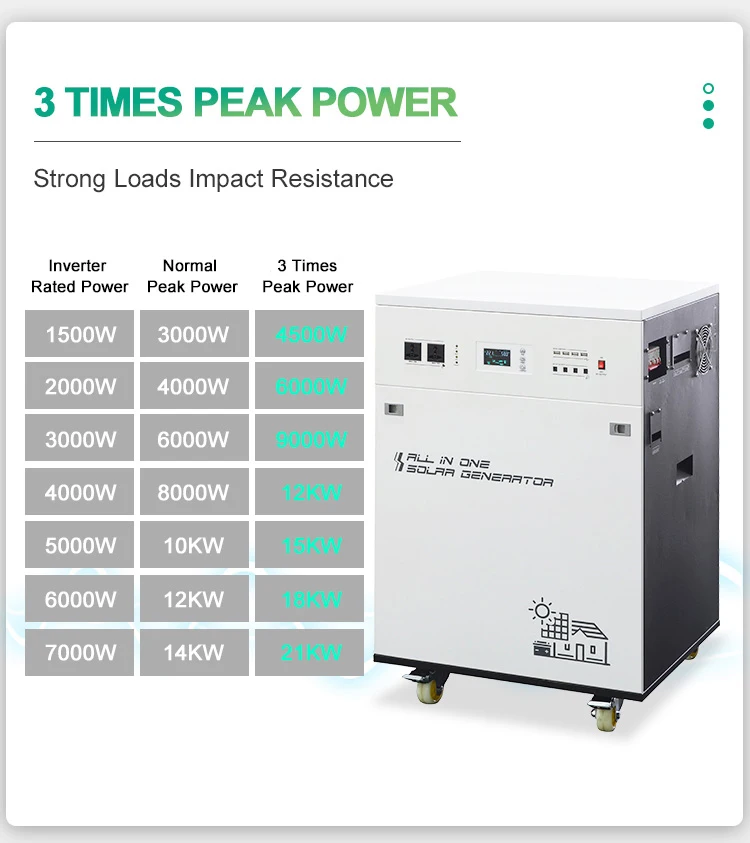

Peak power（20ms）
|
4500VA
|
6000VA
|
9000VA
|
12KVA
|
15KVA
|
18KVA
|
21KVA
|
|||||||||
|
Input
|
Stardard battery voltage
|
48VDC
|
||||||||||||||
|
AC input voltage range
|
85VAC~138VAC (110VAC) / 95VAC~148VAC (120VAC) / 170VAC~275VAC (220VAC)/ 180VAC~285VAC (230VAC)/ 190VAC~295VAC (240VAC)
|
|||||||||||||||
|
AC input frequency range
|
45Hz~55Hz（50Hz);55Hz~65Hz（60Hz)
|
|||||||||||||||
|
Output
|
Conversion efficiency
|
≥85%(Battery mode); >99%(AC mode)
|
||||||||||||||
|
AC Output voltage
|
110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode); 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% /
240VAC±10%(AC mode) |
|||||||||||||||
|
AC Output frequency
|
50/60Hz±1%(Battery mode); Tracking Automatically(AC mode)
|
|||||||||||||||
|
AC Output waveform
|
Pure Sine Wave
|
|||||||||||||||
|
THD
|
≤3%（Linear load)
|
|||||||||||||||
|
DC Output voltage
|
4*DC 12V; 4*USB（5V）
|
|||||||||||||||
|
solar charger （Optional）
|
Charging mode
|
PWM/MPPT
|
||||||||||||||
|
Max PV input voltage(Voc)
(At the lowest temperature) |
PWM: 100V; MPPT: 150V
|
|||||||||||||||
|
PV input voltage range
|
PWM: 60V-88V; MPPT: 60V-120V
|
|||||||||||||||
|
Charge & discharge current
|
60A
|
|||||||||||||||
|
Max PV input power
|
3360W
|
|||||||||||||||
|
Inbuilt battery
|
Capacity
|
4*200AH
|
||||||||||||||
|
Battery size(LxWxH)/pcs
|
522*240*218（244）
|
|||||||||||||||
|
Physical
|
Dimention L x W x H(mm)
|
610*535*960
|
||||||||||||||
|
Net weight(kg)(without battery)
|
53
|
55
|
59
|
61
|
63
|
64
|
66
|
|||||||||
|
Packing
|
Dimention L x W x H(mm)
|
688*612*1093
|
||||||||||||||
|
Gross weight(kg)(without battery)
|
68
|
70
|
74
|
76
|
78
|
79
|
81
|
|||||||||
|
Quantity/CTN
|
1pcs per wooden case
|
|||||||||||||||
|
AC charger
|
AC charging current
|
0~30A(Depends on model)
|
||||||||||||||
|
AC charging method
|
Three-stage(constant current, constant voltage, floating charge)
|
|||||||||||||||
|
Other
|
Transfer time
|
≤4ms
|
||||||||||||||
|
Protection
|
with over-voltage, low-voltage, overload, short circuit, high tempreature protections
|
|||||||||||||||
|
Display
|
LCD & LED
|
|||||||||||||||
|
Cooling way
|
Cooling fan in intelligent control
|
|||||||||||||||
|
Communication(Optional)
|
RS485/APP（WIFI monitoring or GPRS monitoring）(Models below 1000W (including 1000W) are not supported)
|
|||||||||||||||
|
Working mode
(selectable) |
d1
|
AC priority mode
|
||||||||||||||
|
d2
|
ECO mode
|
|||||||||||||||
|
d3
|
Solar priority mode
|
|||||||||||||||
Note:
For details, please refer to the manual recommendation or consult online customer service.
