What type of camera can work with this Wifi NVR?
1: Wired IP camera
(1) Our Brand: All Supported.
(2) Other Brand: Support NETIP and ONVIF Protocol (2.0 or 2.0 Version above)
2: Wifi Camera
(1) Our Brand: All Supported.
(2) Other Brand: Support ICSee APP Wifi Camera (Not all of the ICSee APP Versions)
We are not sure if it can be connected for use, Please purchase with caution;
If your Wifi Camera supports the ONVIF Protocol, Please use an RJ45 Cable connection as it may work.

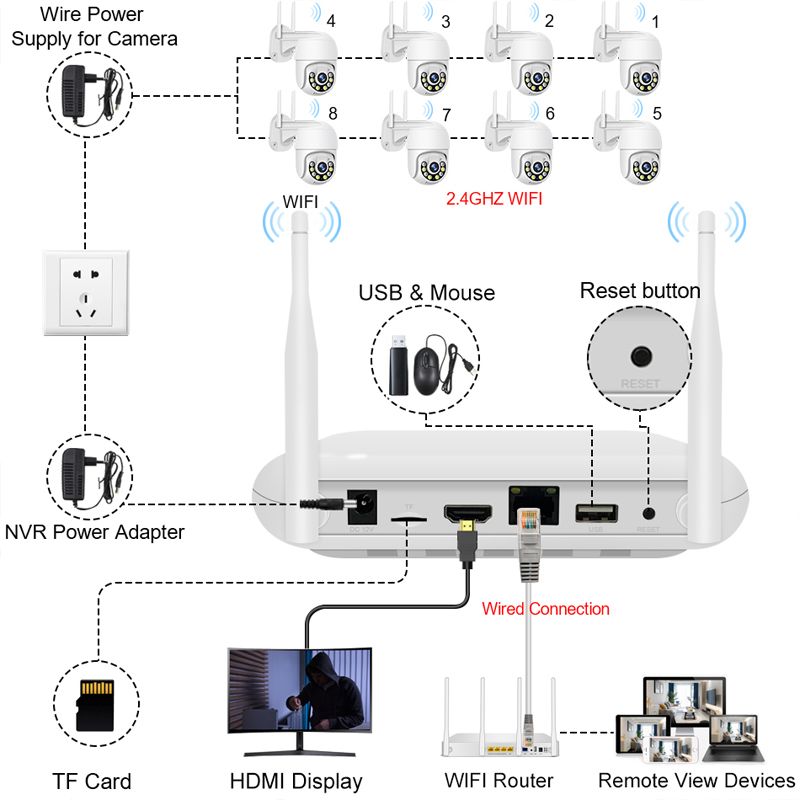

Wired IP Camera/Wifi Camera connection, Please refer to the schematic diagram:
Feature:
1. This Mini NVR suppor 3MP/5MP Wireless IP Camera, Support 8MP 4K IP Camera;
2. Support human form detection and face detection;
3. Support h.265ai / h.265 + (compatible with h.265 / H.264) video compression technology;
4. Support onvif protocol and access to third-party backend / platform;
5. Support Wifi / Wired IP Camera, built-in Micro SD card slot,Support SSD port, maximum support 128GB Micro SD card and 8TB 2.5“HDD (optional at the time of purchase)
6. Supports 7x24 hours loop recording, motion detection recording, and other recording modes, you can playback the recording to view;
7. Support web side, CMS, central management platform software XMEYE;
8. Supprt Cloud technology,Realize network penetration, front and rear end docking, and push alarm information to mobile phones

Model | 8CH | |
System | Processor | Mstar |
System | Embedded Linux | |
Video | Video input | 8ch5M |
Playback | 8ch5M | |
Decode | H.265AI/H.265+(compatible H.265/H.264) | |
Audio | Voice broadcast | Configure he alert tone |
Management | Inquire mode | App |
Storage mode | 2.5-inch hard disk storage. SD Storage, Cloud Storage | |
Wifi | Bands | 2.4GHz |
Standard | IEEE802.11b/g/n | |
Interface | HDMI output | 1*HDMI (MAX:1080P) |
SD | 1*SD | |
Ethernet port | 1*RJ45 1*10/100/1000Mbps Ethernet port | |
USB Port | 1*USB2.0 ports | |
General | Temperature | 0 ℃ - + 55 ℃ |
Humidity | 10% -90% RH | |
Power supply | DC12V | |
Consumption | <5W | |
Weight | Around 120g | |
Dimension | 171mm(L)* 136mm(W)* 37mm(H) |
Packing List
1* 8CH WIFI NVR
1* Power Adapter
1* USB Mouse
1* Wall Stickers

Smart AI Face Detection / Face Record
AI face detection is more easy to catch the detail arround you.When someone invades,security camera can clearly capture the details of the person's face.
(Your Camera Must be support XMEye Face Detection, or will not work.)




AI Humanoid Motion Detection
Customizable Motion Detection Events,you can create multiple motion detection settings for camera, including Human Body Detection,Line Crossing Detection, Intrusion Detection and Specific Region Detection.
(Your camera must support XM human detection, or will not work)

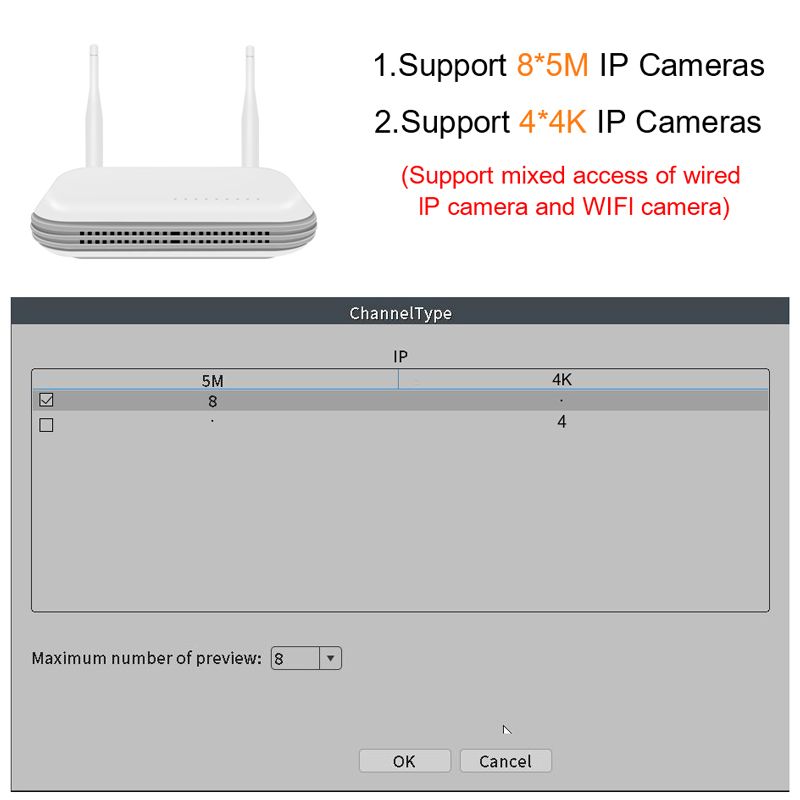

Channel Type of 8CH
Support 8CH 3MP or 4CH 5MP wired /wireless wifi cameras
For wired ip camera : camera must be support onvif protocol,only recommend to use RJ45 cable to connect wifi nvr and router.
For wifi ip camera : this wifi nvr was recommended to work with the wifi camera which application is " icsee " .
if you don't sure , pls contact us before purchasing .

Multi Languages:
English,Russian,Italian,Portuguese,Spanish,French,Germany.,etc...Total 28 languages

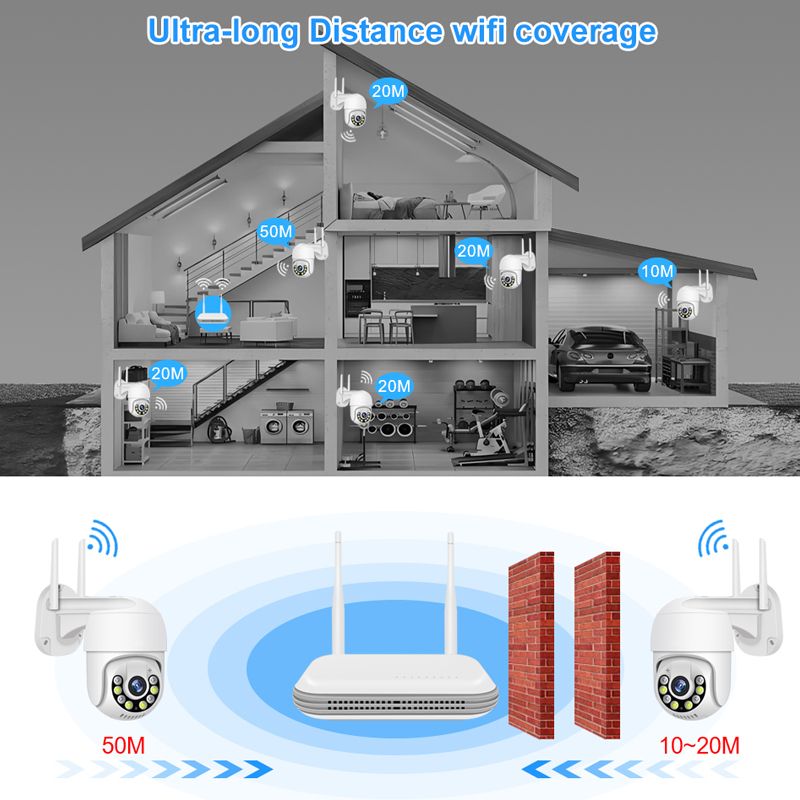

Ultra-long Distance wifi coverage
Wifi coverage can reach 50 meters without walls, 10-20 meters with one wall, and 10 meters with two walls.

Latest Cascade Technology
With the lastest cascade technology,it greatly enhances the coverage and stability of wireless signals.


Support ONVIF
you can connect any brand's Onvif IP Cameras to our this NVR;
Reminder:
Smar's Video Recorder all support ONVIF and NETIP Protocol;
Netip: It is a Private protocol, only applicable to Network Video Products of XM Schemeï¼›
Onvif: It is an international open network video product standard network interface protocolï¼›
Onvif Advantages:
Onvif likes a communication bridge, It can implement multiple devices(IP Camera and Video Recorder) from different manufacturers connected to each other, mutual Communication.
Onvif Disadvantages:
The standards of onvif protocol are also different for video network products of different manufacturers;
So,Their communication with each other will cause some bad problems, such as: motion detection can not work normally; Audio and video can't be synchronized; Loss of video data, etc......
(Note: We recommend that when you buying the Network Video Recorder, also buying the IP Camera from our store, Because they have perfect private protocol between them, it can fully display products all of the functions.)

Plug & Play
Can be quickly pair and connect with our smar Wifi cameras,plug and play is more convenient.
(contact us if you need cameras )

24/7 Loop Record And Playback

Easy access via multi-platform
Support Mobile Phone iOS, Android System,Remote view of mobile phones, any time... any where...

NVR Size and Multi angle display:
Advanced H.265 Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265++ video saves around 70% of the bit rate at the same quality of coding.

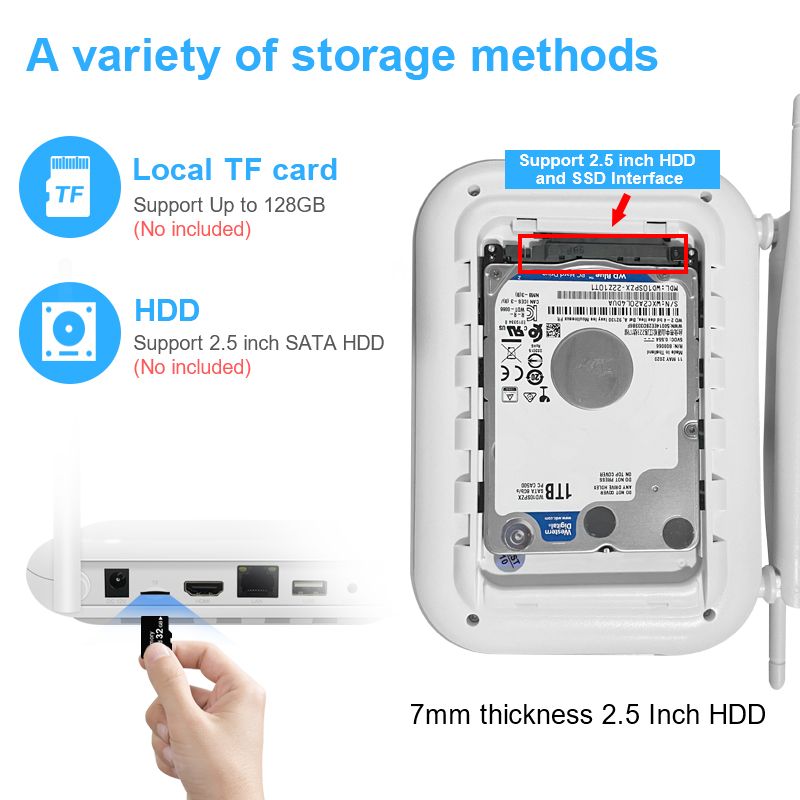

The NVR Support TF Card and HDD
Max support 128G TF Card, and support7mm 2.5 inch SATA HDD and SSD Interface.

How to choose a hard drive ?
Hard disk is necessary for video recording ,thanks to the H.265 High Efficiency Video Coding Technology ,the 1TB Hard disk enables to continuous record about 30 days video footage for 4 cameras 500G can record about 15 days for 4 cameras

How to remote view through Mobile phone?
1. Dowload XMEye Pro Free APP in your mobile phone;
2. Open the software register an account and login.
3. Add devices( Connect the camera to the NVR first)
4. Add successfully, enjoy live video
How to manage the cameras through PC client?
1. Please used your mobile phone to scan the QR code as below, and then click to downloadï¼›
2. Please install VMS software on your computer, then login VMS Software, Username: admin, Password:admin


3. Please click the Device Manager-IPV4 Search-choose address of IP Camera- ADD-SAVE,Search and Camera successfully;
4. Click t he Live View, then click IP Address of Default Group, then you will can Watching Video.



FAQ:
How to confirm which camera support this Wifi NVR ?
1: Wired IP camera
Support Netip and ONVIF protocol IP Cameras.
For Wired IP camera only recommend use RJ45 cable contact NVR to Router.
2: iCSEE Wifi Camera
This WiFi NVR only supports WiFi cameras with ICSee app for WiFi connection (other APPS' WiFi cameras don't support WiFi connection)
3: How to Connection ICSee Wifi Camera to WIFI NVR?
iCSEE camera have Original Camera and OEM camera difference, You need confirm which kind it is first.
For Original Camera, only use the "code for Wireless" to search camera, all will be automatic contact.
For OEM Cameras, You need press the "code for wireless"first, after search finished, press "wired configuration"to search the camera address again, then add the camera by Hand.
Default will be ONVIF protocol, you need edit it to NETIP and "34567"port.
4: Other APP name Wifi Camera
This Kind of camera must contact seller ask first, Make sure they can work together.
5.This WiFi NVR only supports ICSEE WiFi Camera with single lens and dual lens. It is currently uncertain whether it supports WiFi cameras with three camera heads. (Please confirm with the seller before placing an order.)
6.Why are some functions of the product not working properly?
Our this Wifi NVR supports Human Detection, Face Detection, and Car Detection; These 3 features depend on your camera must support the ICSee/XMEye Pro app and support these features.
