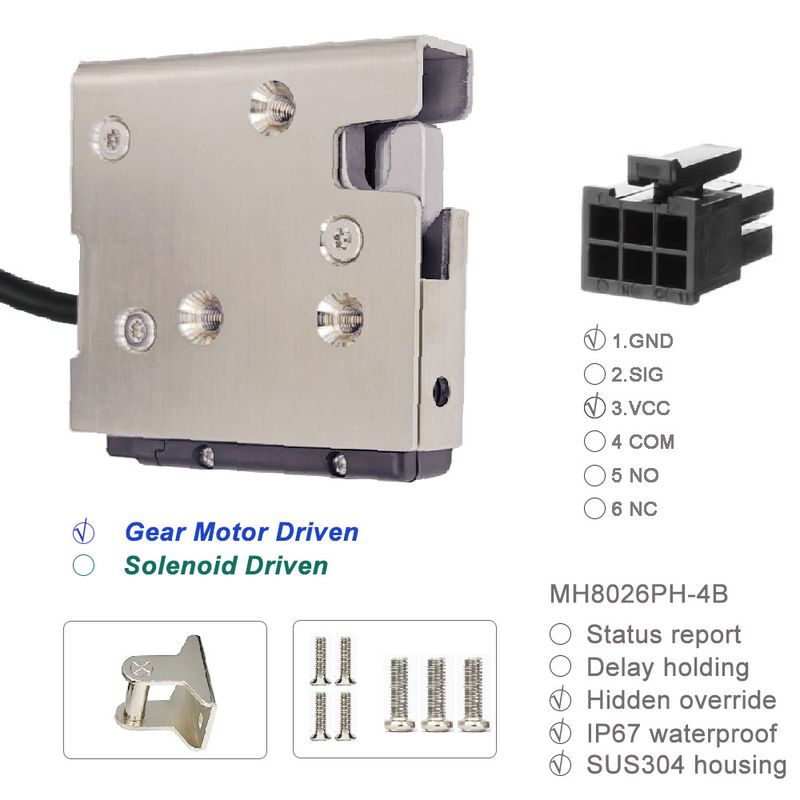

9VDC/12VDC/24VDC Stainless Steel Electromechanical Rotary Lock With Time Delay
9VDC/12VDC/24VDC Stainless Steel Electromechanical Rotary Lock With Time Delay MH8026SPH is an electric lock driven by gear-motor, which distinguishes it by low power consumption and high load capability. Designed with delay re-lock function, it allows flexibility of controlling the unlock time. An optional internal door sensor provides reporting of open/ close status and mechanical kits for manual override in case of power failure. With easy push-to-close operation, the Stainless Steel Electronic Rotary Latch builds an internal spring rod to push door open when electrified. It simplifies the access control of heavy duty vehicles and equipment.

Features:
Tough metal construction, stainless steel optional
Microprocessor controlled gear motor
Operates against heavy mechanical loads
Optional internal microswitch for reporting open/close status
Push to close and electronic release
Optional time delay for holding
Corrosion-resistant version available for outdoor use
High strength and durability
Accept control inputs from any access control devices

Specifications
Operation Voltage: | 5-24VDC Nominal |
Operating Current: | Less than 200mA at 12VDC |
Standby Current: | less than 15uA |
Time of Latch Release: | 1 second free load |
Operation Mode: | Fail secure |
Holding Force: | 600KG |
Cycle Rating: | More than 1,000,000 |
MS Contact Rating: | 5A @125V |
Working Temperature: | -40ºC ~ +80ºC |
Working Humidity | 85% |
Dimensions LxWxH: | 72mm*67mm*18mm |
Weight: | 330g |

Dimension

Installation
Packing list:
Electronic Rotary Latch
Hook
Installation Screws
Override kit is not included, need to order separately.

Application:
Parcel Delivery Lockers
Smart Lockers
Vending Machine Lockers
Telecommunication Kiosks
Bank Locker Kiosks and Cash Drawers
Electronic Mailboxes
Electronic Motorcycle Trunk
Smart Bike& Scooter station Lockers
pharmaceutical cabinets, cash drawers and display cases
Beverage Freezers And Keyless Refrigerator Lockers
