MODEL | AN-PVI-6000W | AN-PVI-10000W |
RATED POWER | 6KVA/6KW | 10KVA/10KW |
PHASE | 1-phase in/1-phase out |
MAXIMUM PV INPUT POWER | 4500W*2(9000W) | 4500W*3(13500W) |
GRID-TIEOPERATION |
PVINPUT(DC) |
Maximum DC Voltage | 500Vdc |
Start-up Voltage/Initial Feeding Voltage | 90Vdc/120Vdc |
MPPT Voltage Range | 60-450Vdc |
Number of MPPT Trackers/Maximum Input Current | 2/18A | 3/18A |
GRID OUTPUT(AC) |
Nominal Output Voltage | 220/230/240VAC |
Output Voltage Range | 184-264.5VAC or 195.5-253VAC or 184-264.4VAC(Selectable) |
Nominal Output Current | 26A | 43A |
Power Factor | >0.99 |
EFFICIENCY |
Maximum Conversion Efficiency(DC/AC) | 97% |
OFF-GRIDOPERATION |
AC INPUT |
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC |
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC |
Frequency Range | 50Hz/60Hz(Autosensing) |
Maximum AC Input Current | 40A | 50A |
GENERAL |
PHYSICAL |

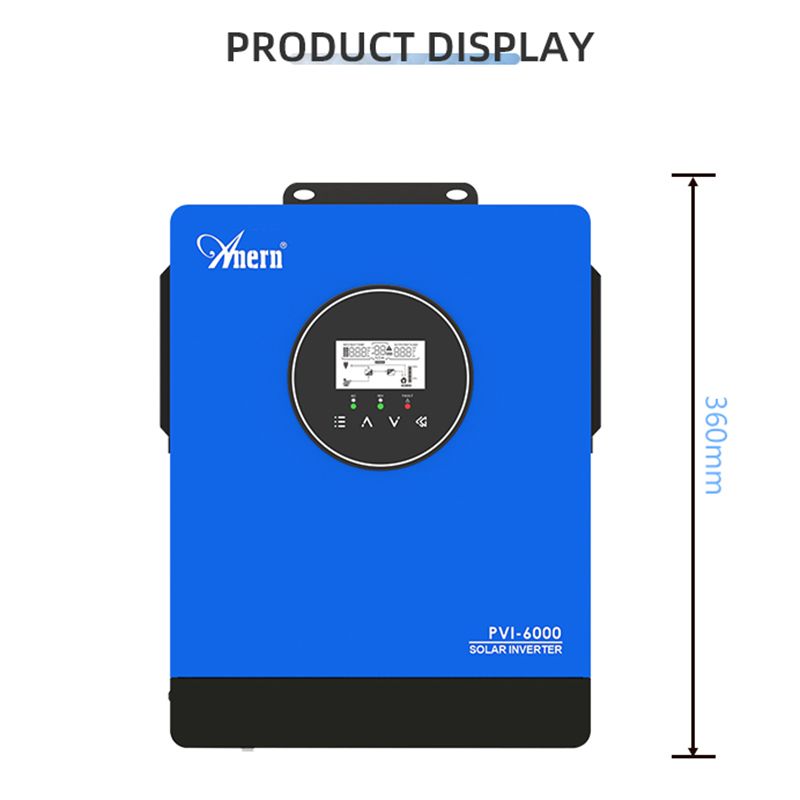

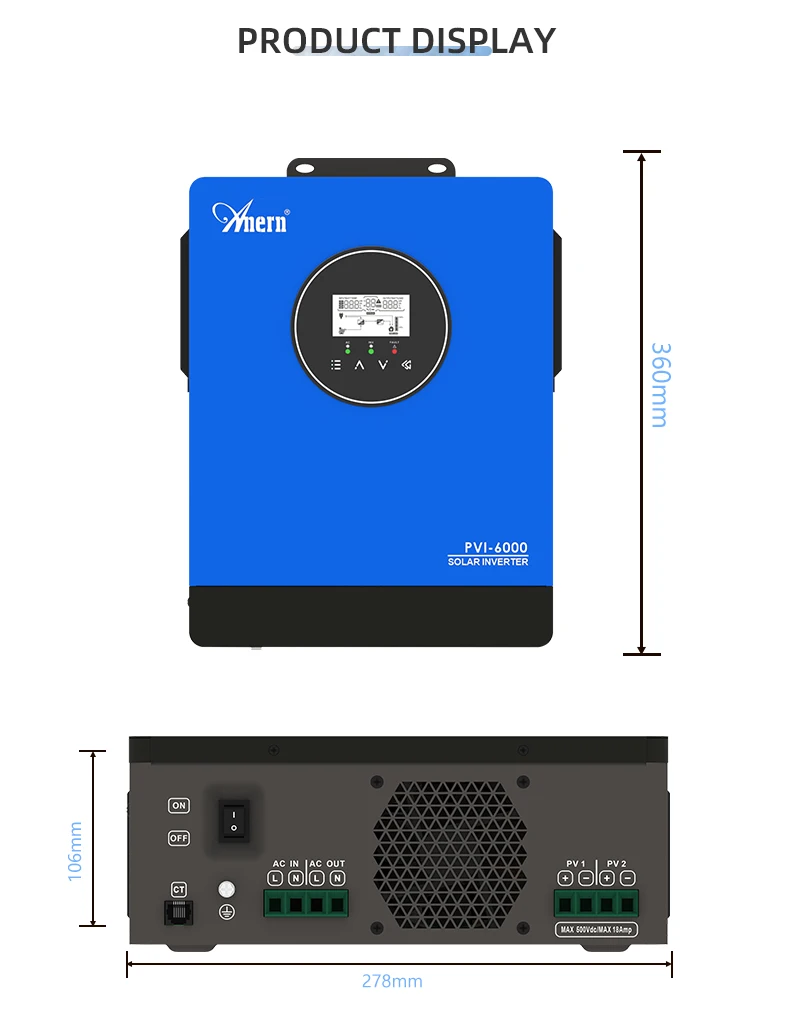

Dimension,DxWxH(mm) | 360x278x106 | 360x310x107 |
Net Weight(kgs) | 4.9 | 6.5 |
ENVIRONMENT |
Humidity | 5% to 95% Relative Humidity(Non~condensing) |
IP degree | IP21 |
Operating Temperature | -10℃~50℃ |
Storage Temperature | -15℃~60℃ |

Features:
Pure sine wave inverter
Configurable input voltage range for home appliances
and personal computers via LCD setting

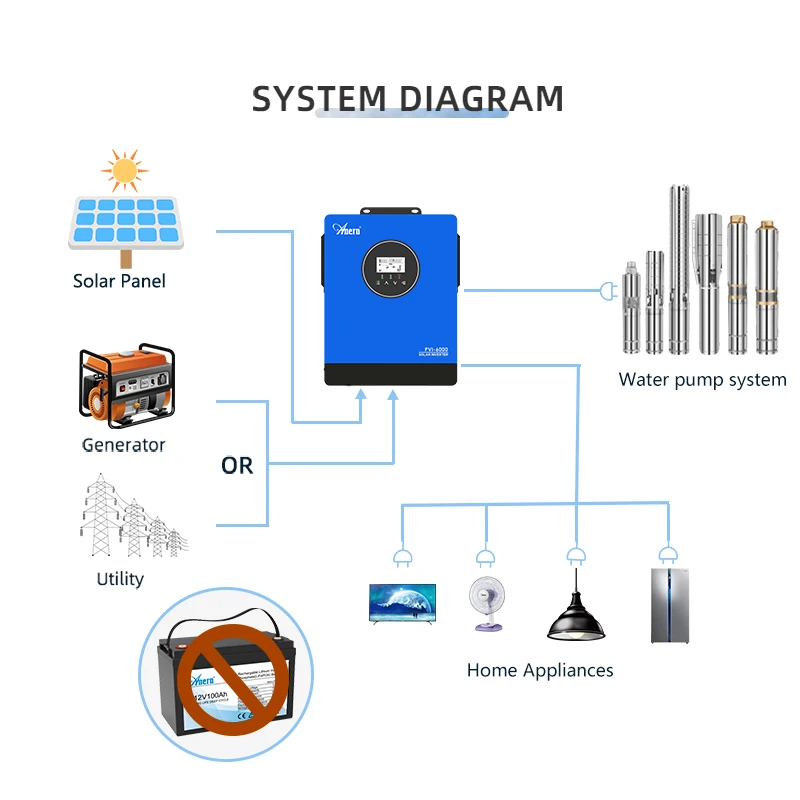

Combind to the grid based on applications via LCD setting
Compatible to mains voltage
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Cold start function
Dual mppt at 4KW and 6KW,three mppt at 10KW and 15KW
Can Running 1.5P motor with 4KW,3P motor with 6KW,
1.5P+3P motor with 10KW,3P+3P motor with 15KW
Full load work with solar only

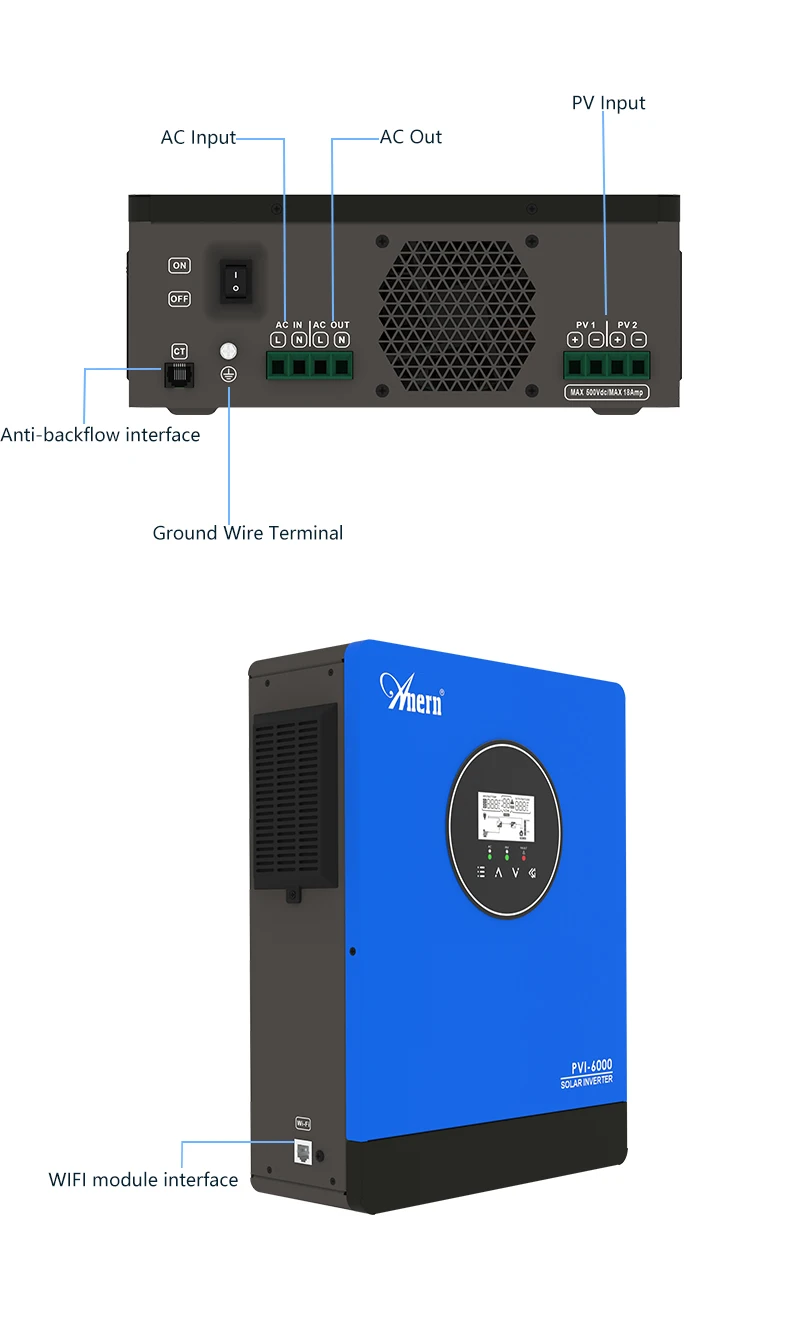

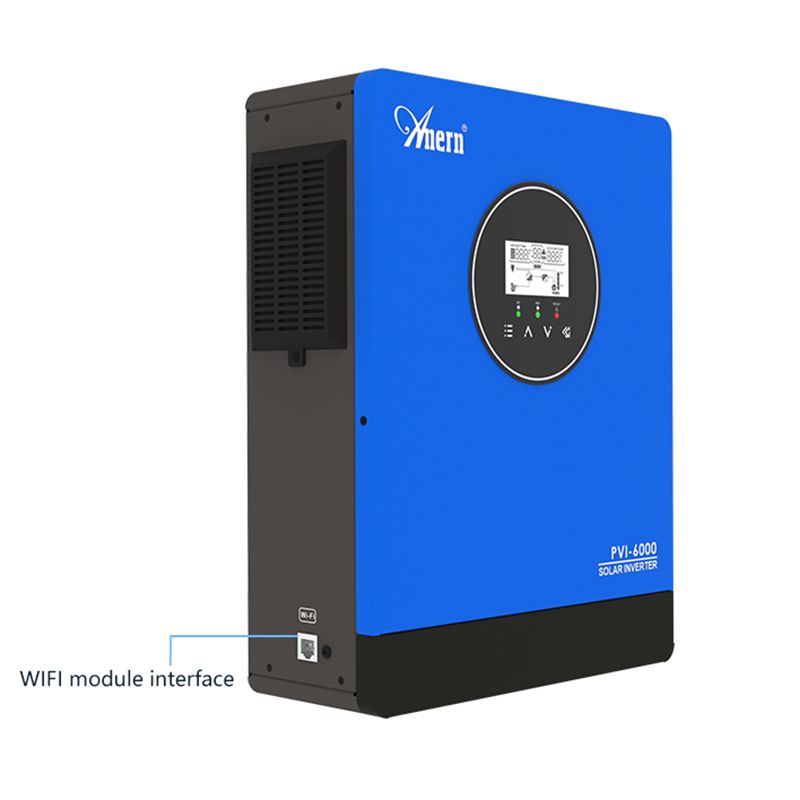

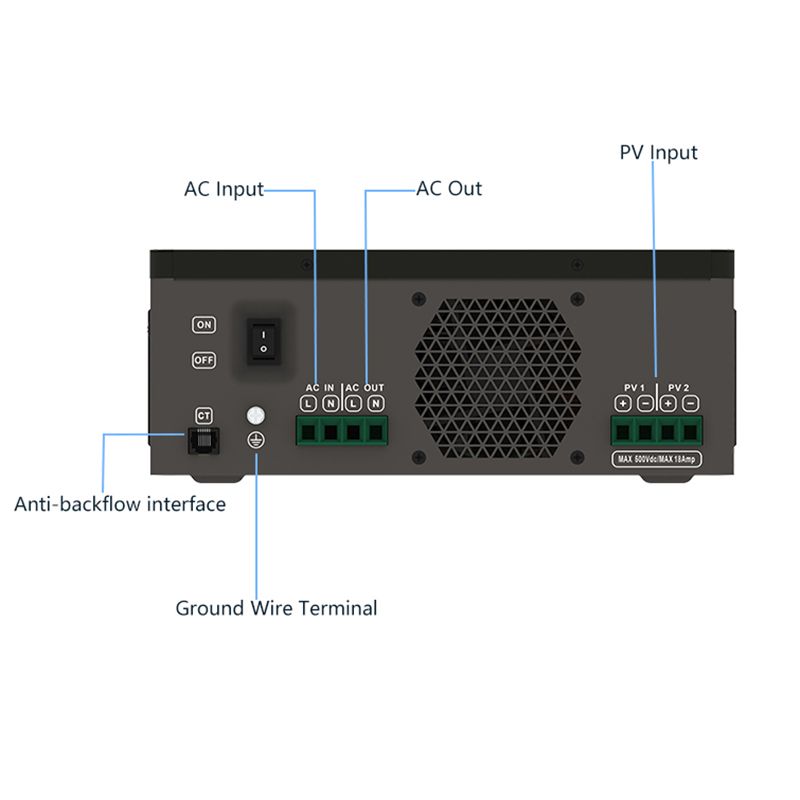

Note: Purchasing a model with a WiFi module will include a CT module. Models without a WiFi module do not include a CT module.





Inverter Use Notice:
1. The starting power of inductive load electrical appliances shall be at least three times of the rated power of the electrical appliances. If the starting power exceeds the inverter power, the inverter may be damaged. Please select a suitable model before purchasing.
2. Please connect the circuit correctly according to the instructions, and install switches for each circuit.
