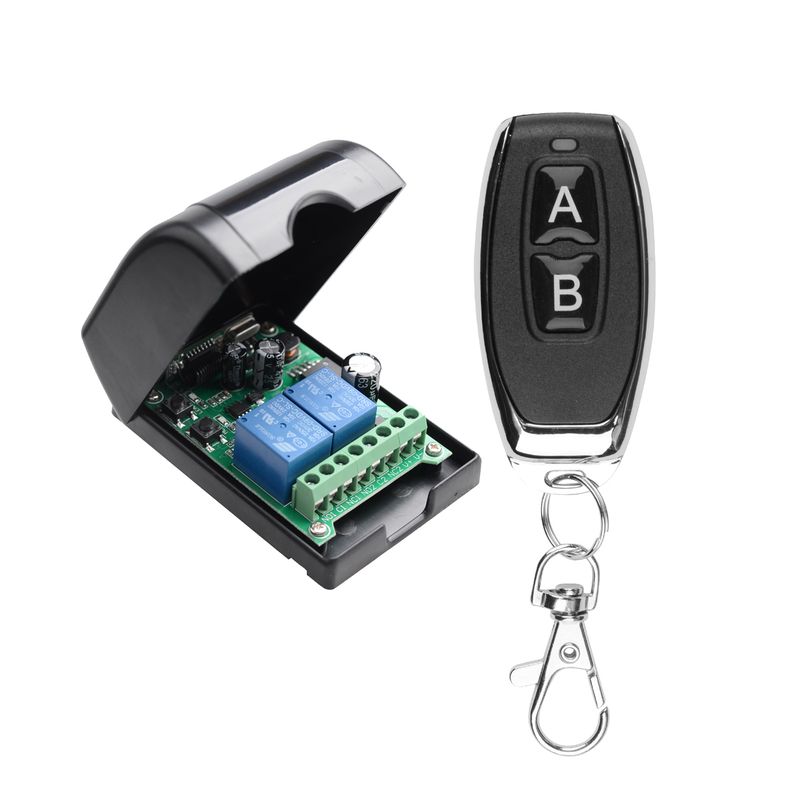

DC12V 24V 48V 433MHz RF Wireless Remote Control Switch 2 Channels Relay Receiver Diy Control for Garage Door Curtain Motor Light
Includes all taxes
Meet your Seller
-
$50.84Sold by BILLIONS BIRDS
Description
DC12V 24V 36 48V 433MHz RF Wireless Remote Control Switch 2 Channel s Relay Receiver Diy Control for Garage Door Curtain Motor Light
Features:
1. Using Intelligent microprocessor control, which can be applied to garage door control, light control, remote control curtain, access control system and all kinds of motor control systems.
2. Compact and lightweight, easy to install, safe and reliable to use.
3.Better health: excellent selectivity and stray radiation suppression
More safety: high temperature resistant flame retardant housing and high quality and adaptability relays
More convenient: 3 workiing modes, more convenient and quick switching, compact size of the remote control switch, easy to install and hide, low standby power consumption, longer service life, strong anti-interference, stable signal transmission, designed to match the wide-voltage chip, which can be applied to a variety of different operating voltages, more convenient management and control.
Note:
1. The remote control is Learning Code Type ,not copy type. It need to work with the 433mhz receiver or relay module.
2. If you want the remote control match with your receiver module, they need in the same conditions : 433mhz & EV1527 learning Code. You can also contact us to purchase a suitable Receiver or relay module.
3.If you have already purchased a kit and need to add a remote control or controller, you can purchase them separately and simply follow the instructions to pair them.
About Receiver:
Model No.: AK-RK02E
1. Working voltage: DC12-48V
2. Quiescent condition: Less than 6mA
3. Working temperature: -40 Degree +80 Degree
4. Receiver sensitivity: -105dBm
5. Working frequency: 433MHz
6. Output voltage: DC and Switch Signal is optional
7. Max load current: Less then 10A
8. Size: 8.5 x 5.7 x 2.6cm
About Transmitter:
1.Buttons: 2 Buttons A and B
2.Operating frequency :433MHz
3.Remote Distance: 50 Metres / 164ft (Open space)
4.Operating Current: 13 mAh
5.Encode: Fixed code / EV1527 code
6.Size: 5.7 x 3.2 x 1.1cm
About Working way:
Working way changed by Model button
Momentary: press model button 1 time
Relay: Press and hold -> On; Release -> Off.
Latched: press model button 2 times
Relay: Press -> On; Press other button -> Off.
Toggle: press model button 3 times
Relay: Press -> On; Press same button again -> Off¡
Delay 5 seconds: press model button 4 times
Press remote control A button, the relay A actuates and keeps working 5 seconds. The same as relay B .
About Learning and clearing Method:
Learning: press learning button 1 time, the LED indicator flash then press the transmitter button A, LED indicator flash 3 times and off, button A learning successfully.
press learning button 2 times, the LED indicator flash then press the transmitter button B, LED indicator flash 3 times and off, button B learning successfully.
Clearing: Hold press learning button about 8 seconds, indicator from ON to OFF, then press remote, Relay did not Respond, it means clearing code successful.
