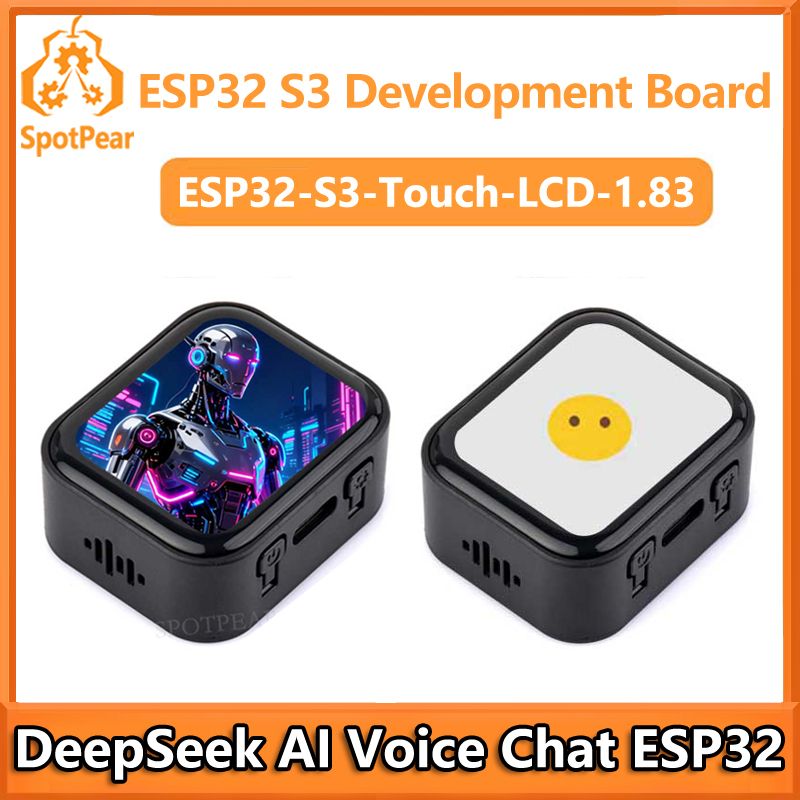

DeepSeek AI Voice Chat ESP32 S3 Development Board 1.83inch TouchScreen Display 240x284 ESP32-S3-Touch-LCD-1.83 For Xiaozhi

$54.12

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description



ESP32-S3 1.83inch Touch Display
Development Board

Embedded with ST7789P Display Driver and CST816D Capacitive Touch Chip

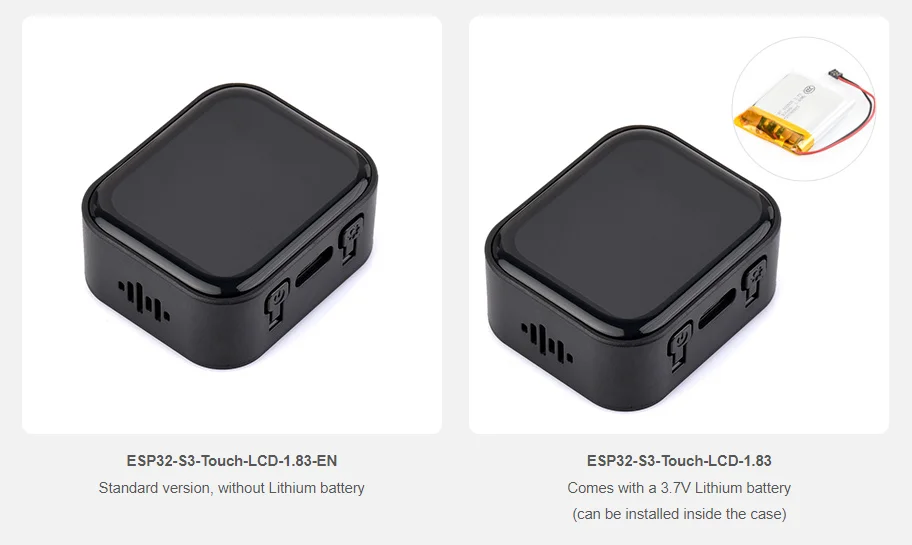

Version Options
Features

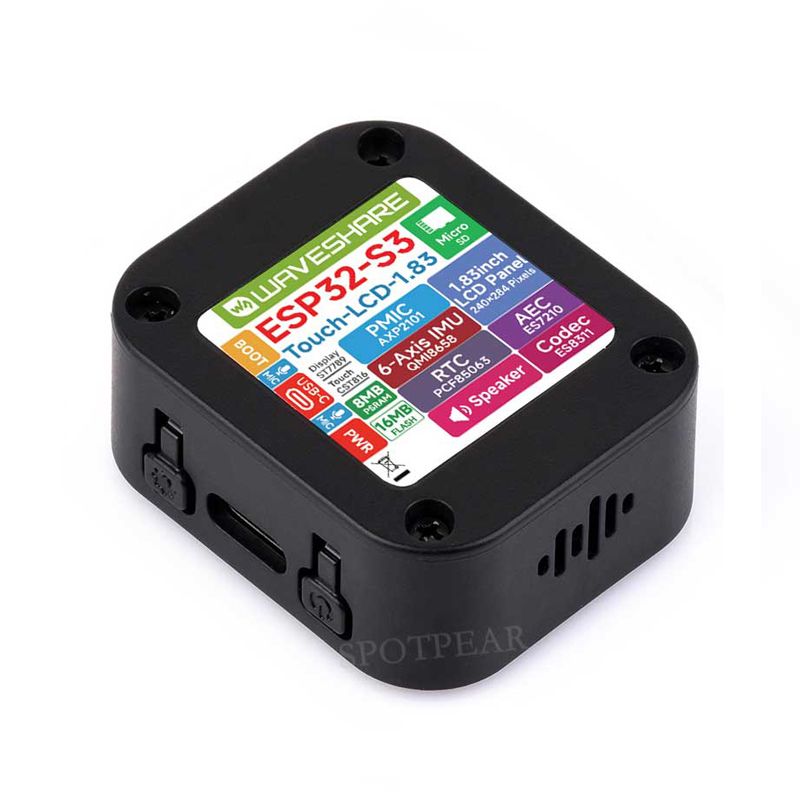

ESP32-S3-Touch-LCD-1.83 a high-performance, highly integrated microcontroller development board designed by Waveshare. Tiny size with onboard 1.83inch capacitive display, highly integrated power management IC, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC chip, low-power audio codec IC, and so on, which makes it easy for you to develop and integrate into the products quickly.

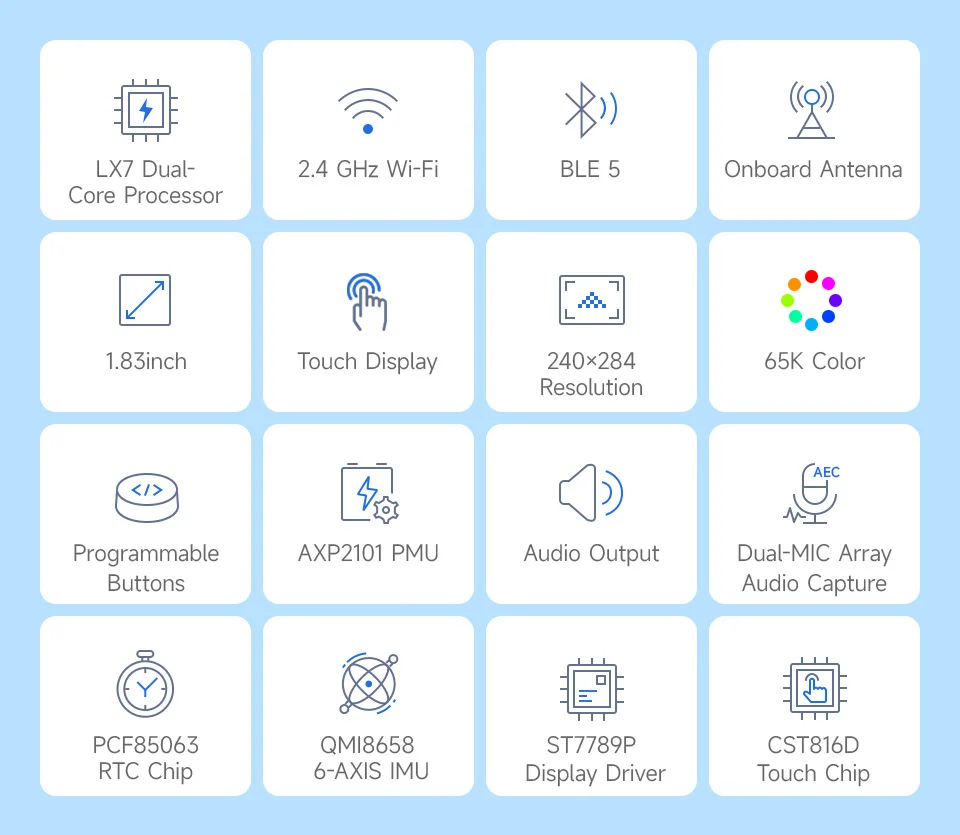

Key features include:

  • Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

  • Built-in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory

  • Adopts Type-C port to improve user convenience and device compatibility

  • Onboard 1.83inch capacitive touch display, 240 × 284 resolution, 65K color

  • Built-in ST7789P display driver and CST816D capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources

  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.

  • Onboard PCF85063 RTC chip connected to the battery via the AXP2101 for uninterrupted power supply

  • Onboard PWR and BOOT programmable buttons for easy custom function development

  • Onboard JST 1.2mm 2PIN 3.7V Lithium battery recharge/discharge header

  • Reserved 1 × I2C, 1 × UART and 1 × USB pads for external device connection and debugging, enabling flexible peripheral configuration

  • Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design

  • Adopts AXP2101 IC for efficient power management, supports multiple configurable output voltages, battery charging, battery management, and battery life optimization, etc.

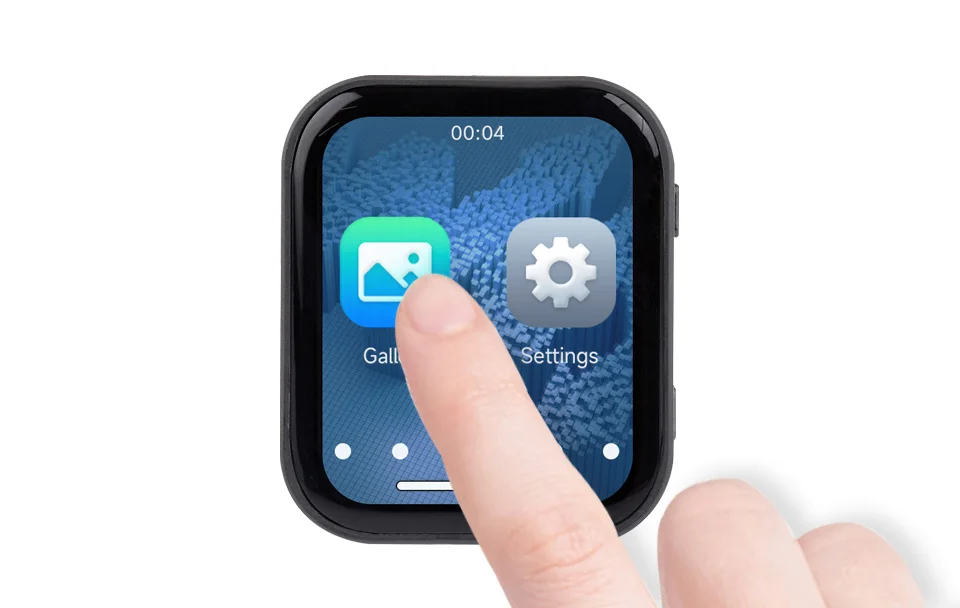

  • High touch screen transmittance, fast response and long lifetime

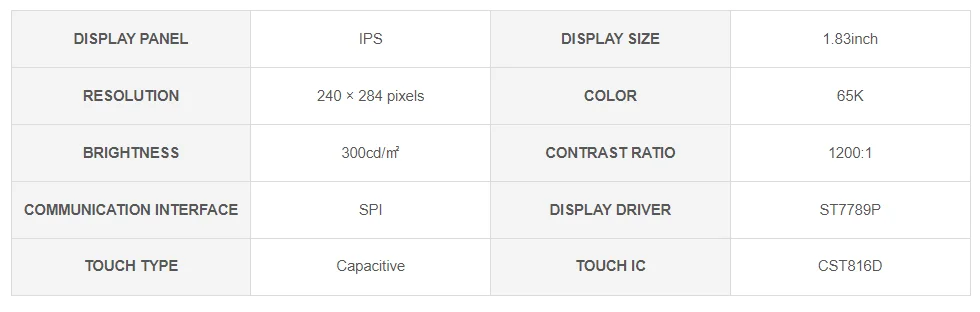

LCD Specifications

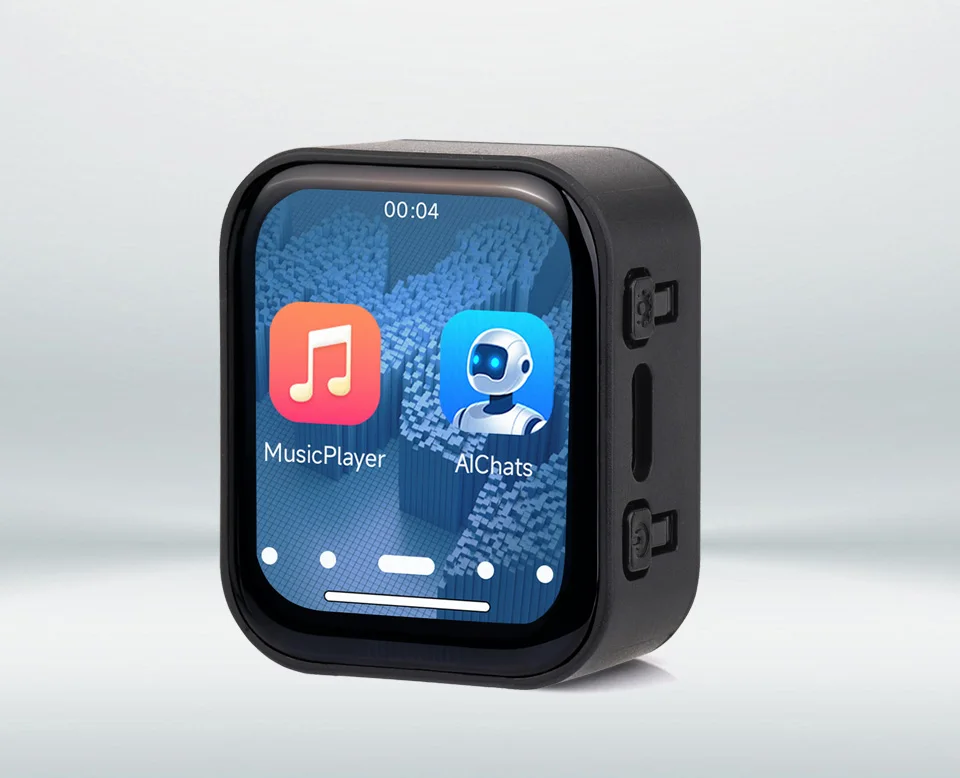

Tiny Size, Touch More Possibilities

Suitable For Various Smart Device Development, Enabling Human-Machine Interaction Function, Supports Connecting To A Battery For Independent Operation

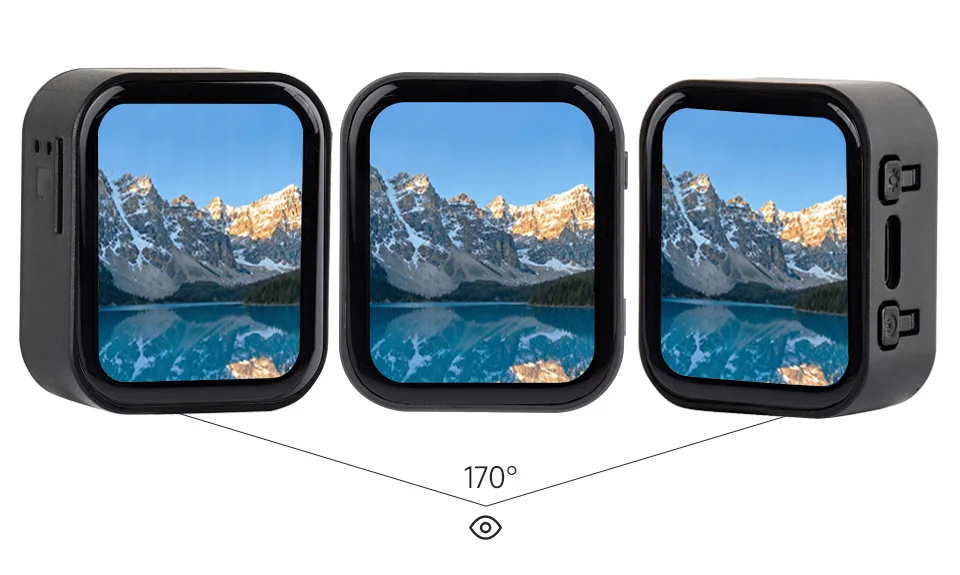

IPS Display Panel

Excellent Display Performance, Wide Viewing Angle

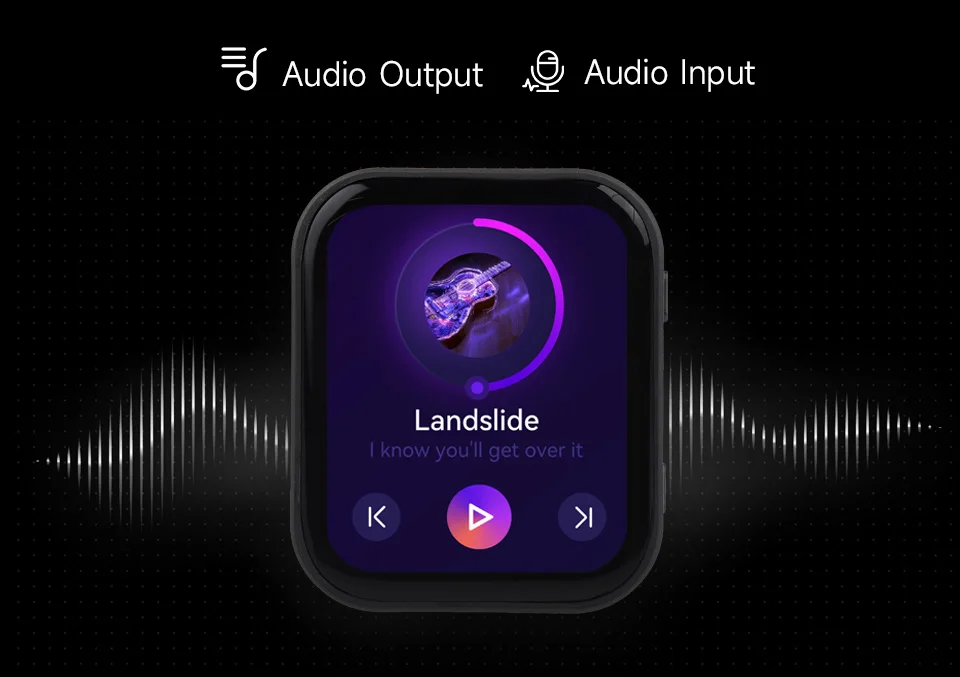

Onboard Audio Codec Chip

Onboard ES8311 Audio Codec Chip And ES7210 Echo Cancellation Circuit To Meet Daily Audio Application Scenarios

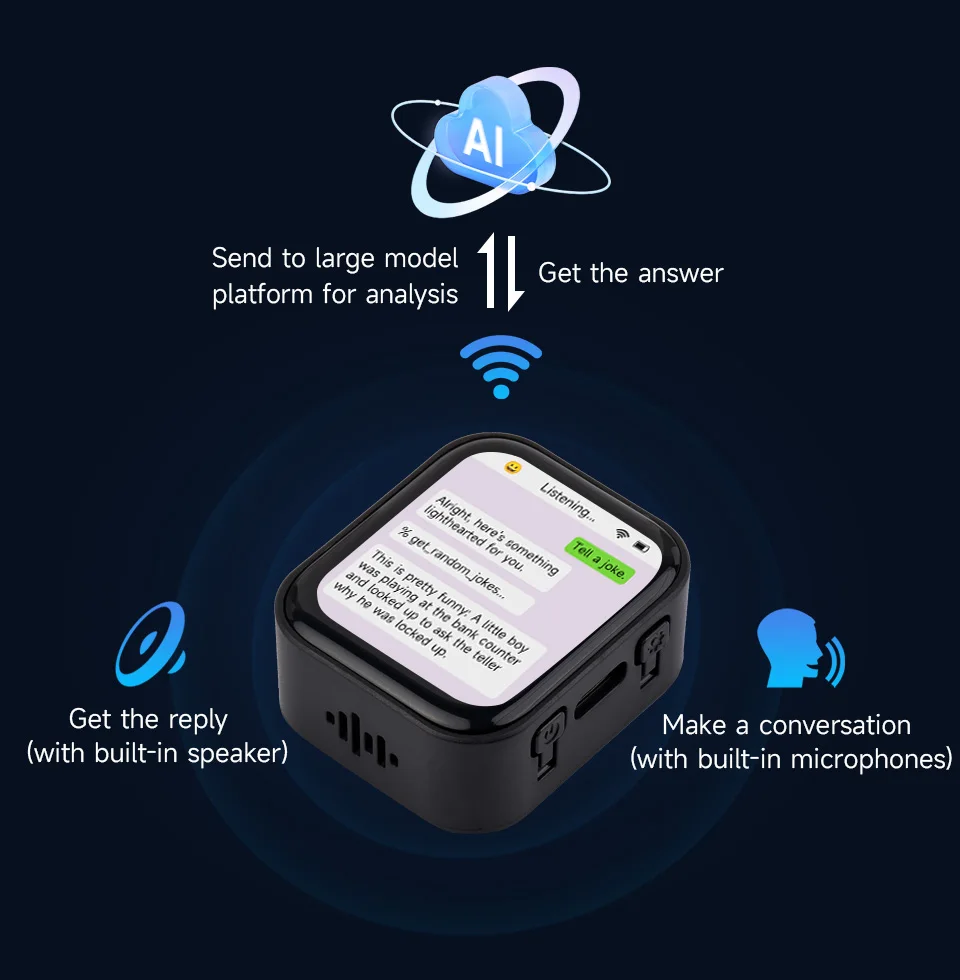

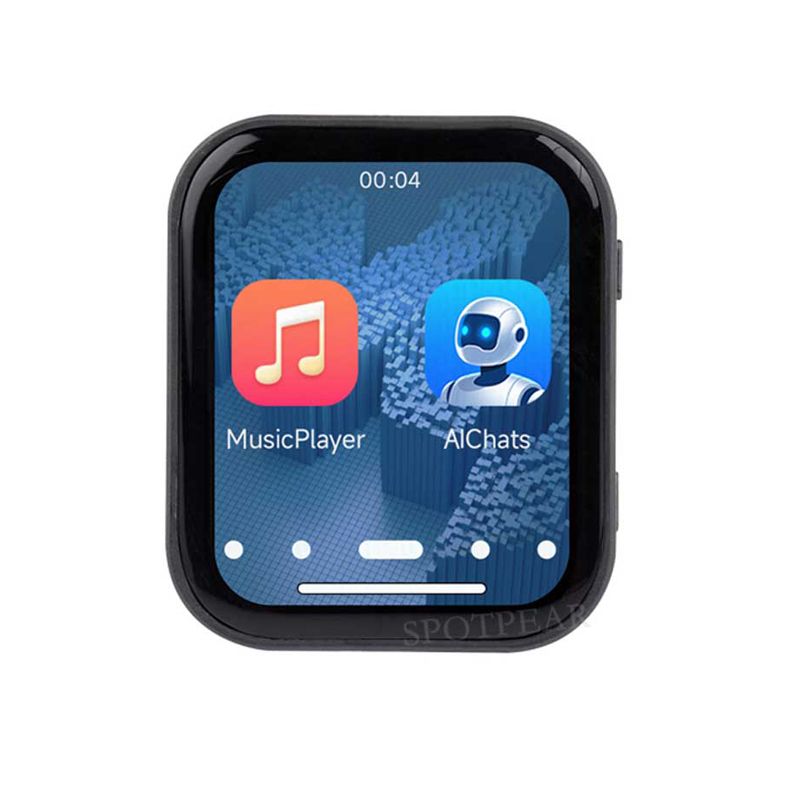

Supports Offline Speech Recognition And AI Speech Interaction

Allows Access To Online Large Model Platforms Such As DeepSeek, Doubao, Etc


Supports ESP-IDF, Arduino

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started



Wi-Fi And BLE 5 Support

ESP32-S3 Integrates 2.4 GHz Wi-Fi (802.11 B/G/N) With 40MHz Of Bandwidth Support, Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh


Function Introduction

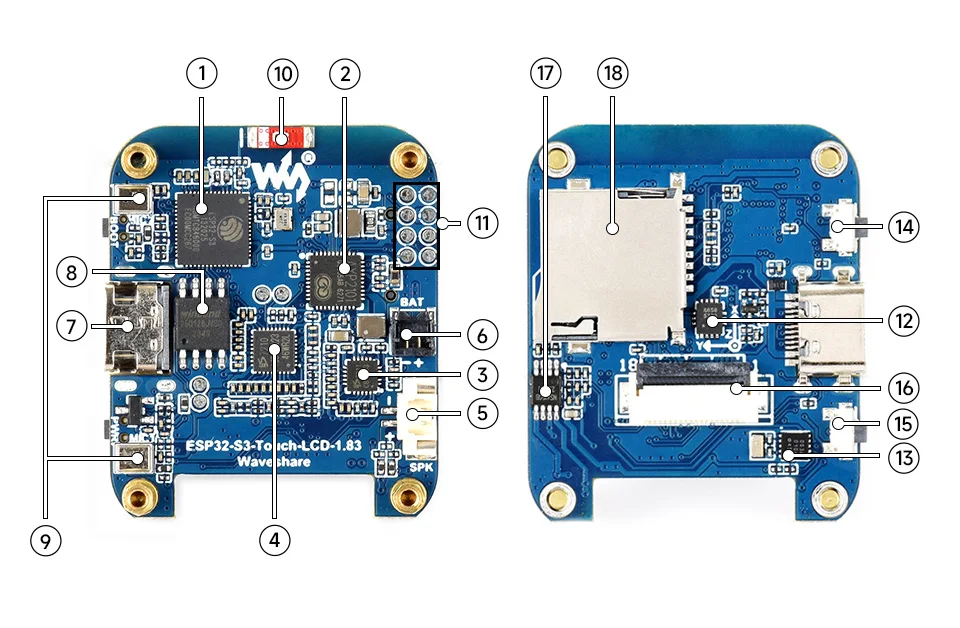

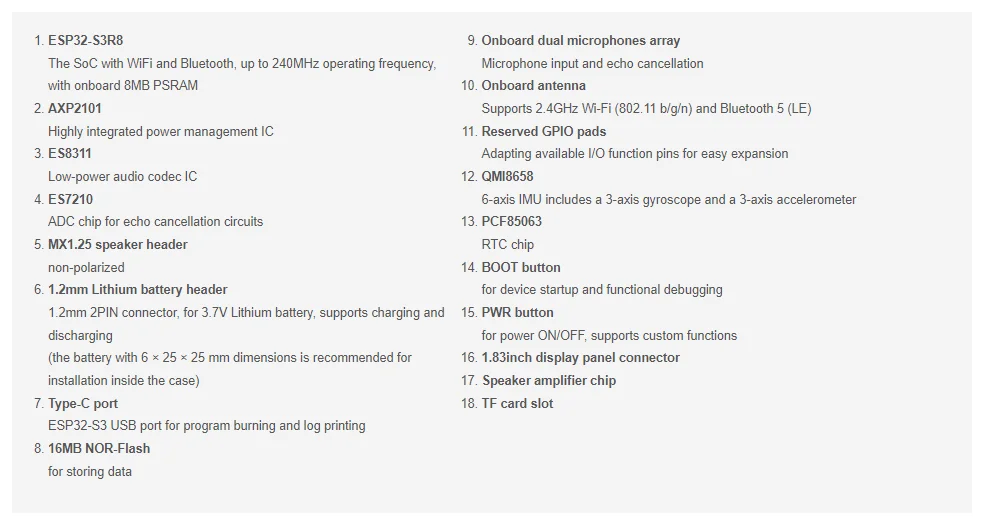

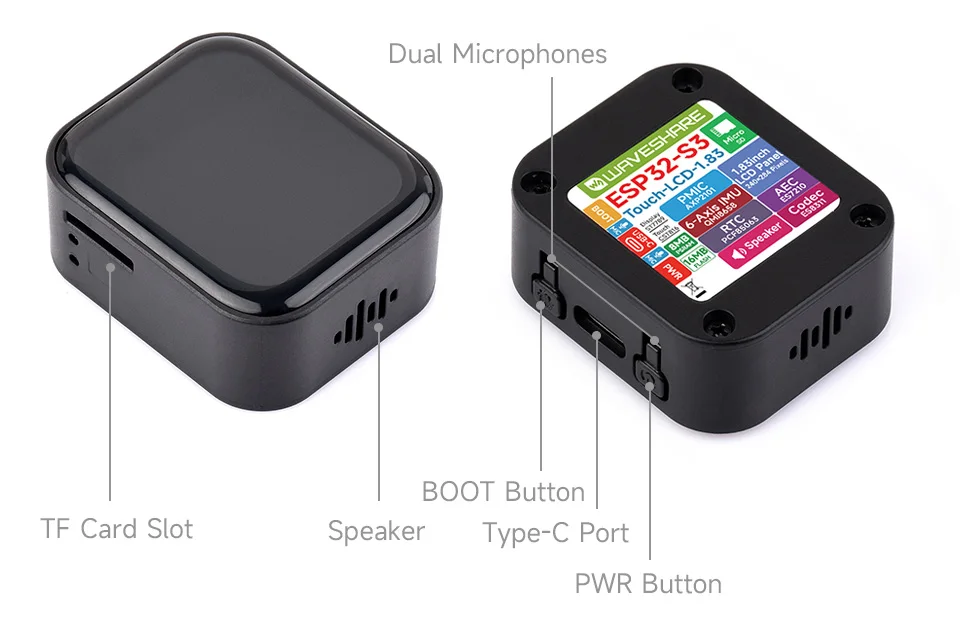

What's On Board

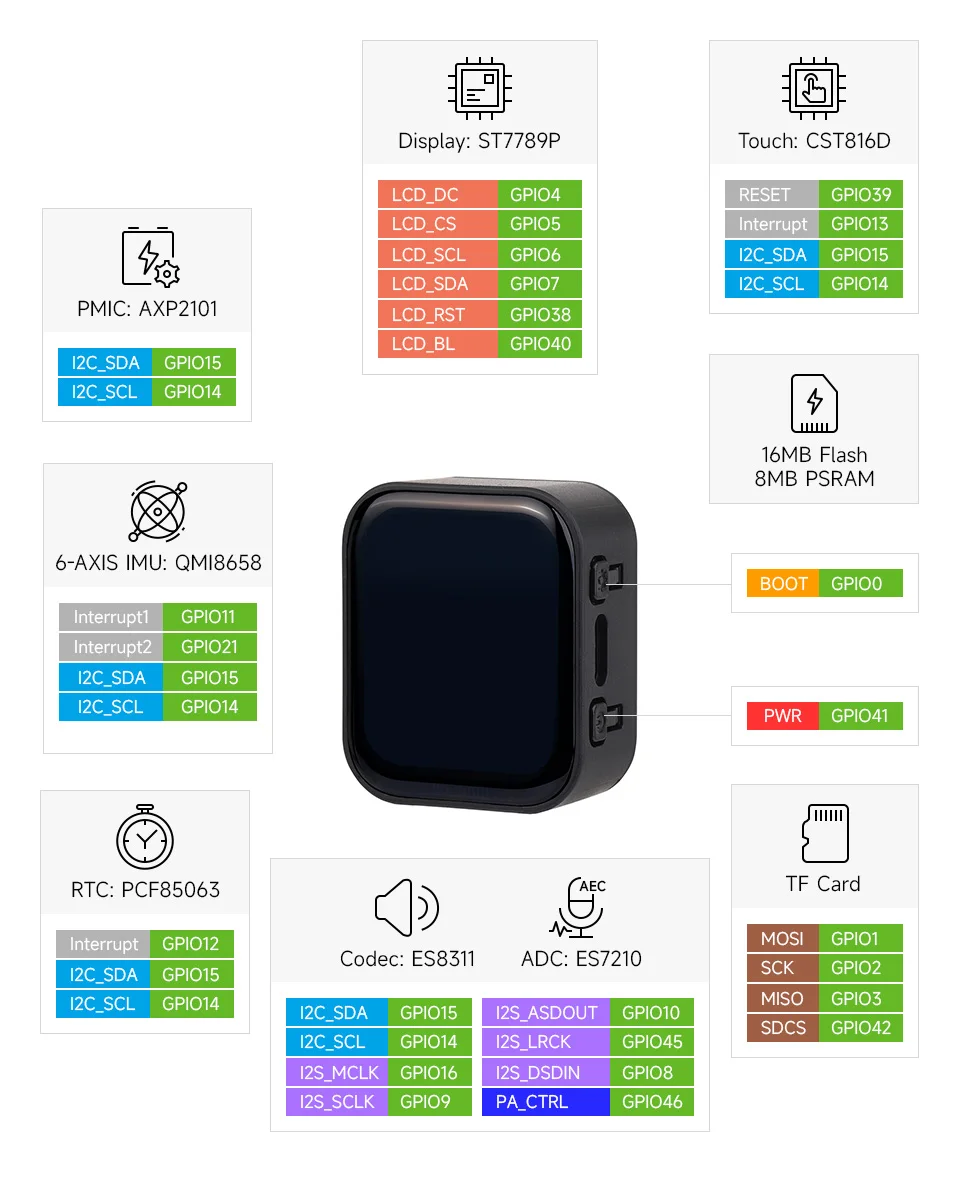

Pin Definition

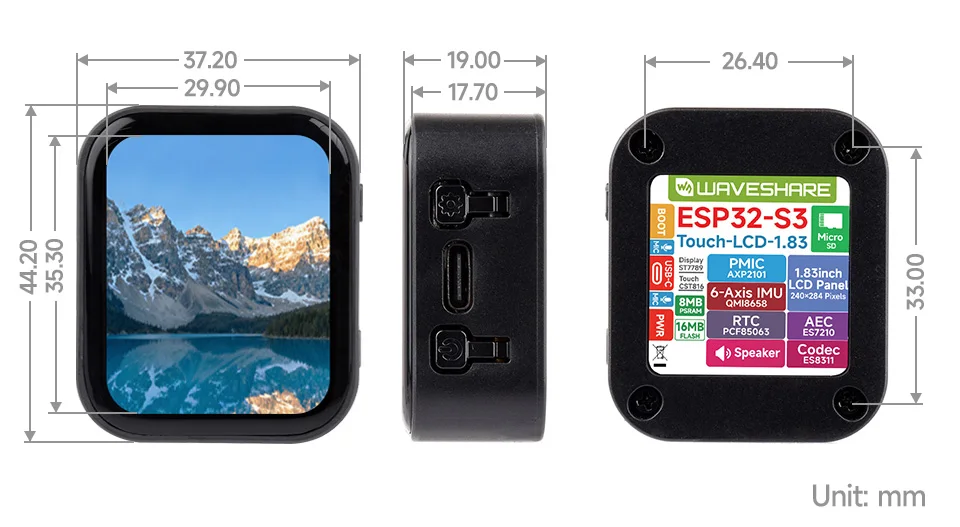

Outline Dimensions

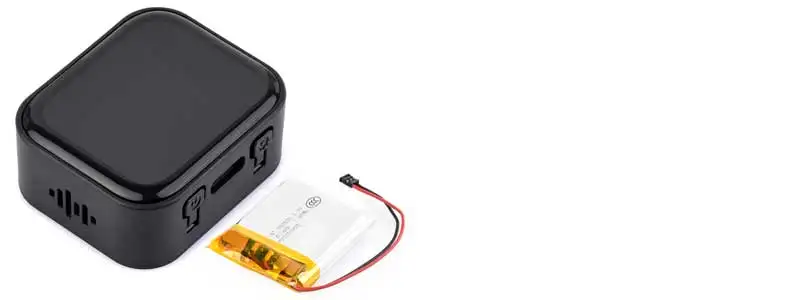

Package Contains

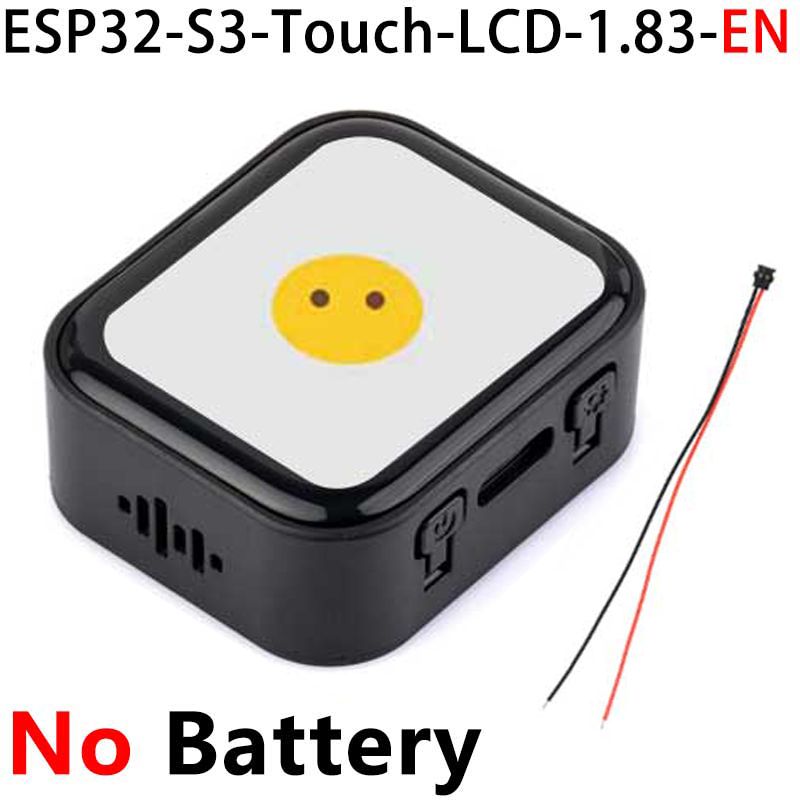

[] ESP32-S3-Touch-LCD-1.83-EN

[] ESP32-S3-Touch-LCD-1.83
