Includes all taxes
Package include:

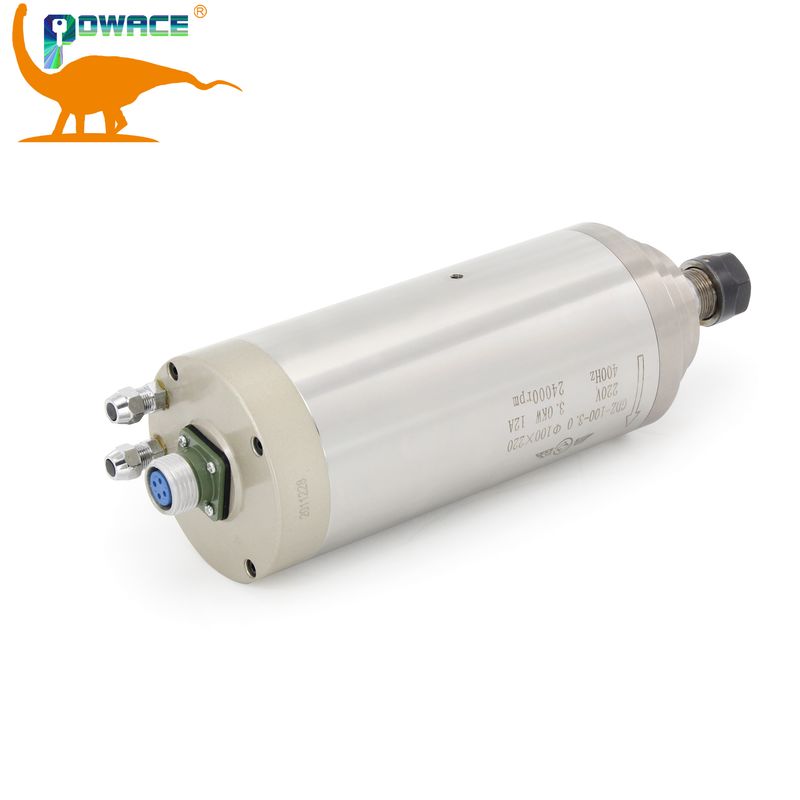

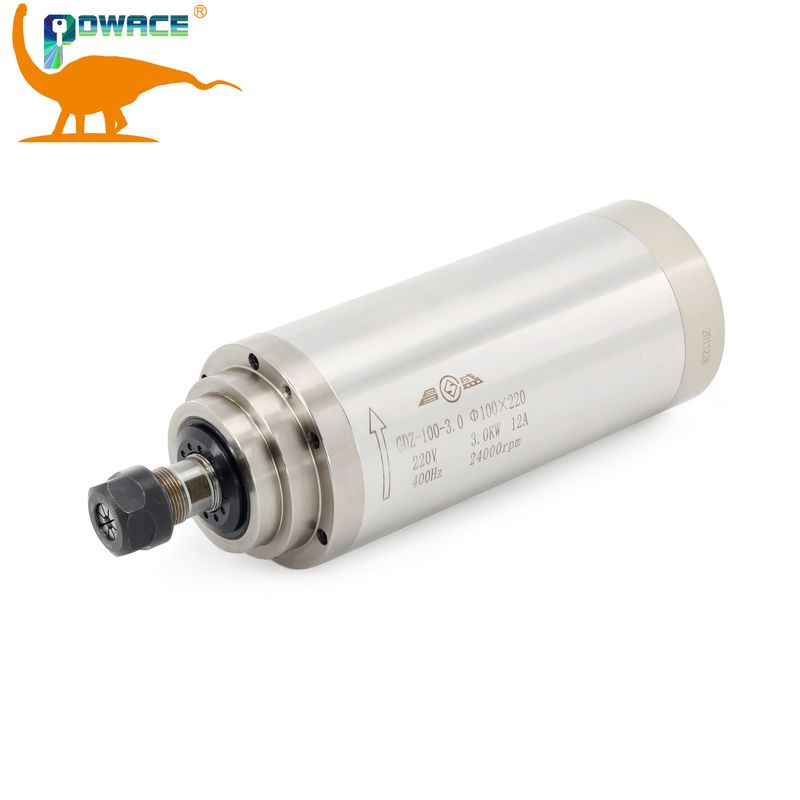

1x 3KWwater cooled spindle motor ER20,220V,24000rpm,100x220mm,4 bearings,400Hz
Kit 1:
1 x 3KW Water-cooled spindle ER20
1 x Inverter 3KW 220V、
Kit 2:
1 x 3KW Water-cooled spindle ER20
1 x Inverter 3KW 220V
1 x 100mm cast aluminium bracket
Kit 3:
1 x 3KW Water-cooled spindle ER20
1 x Inverter 3KW 220V
1 x 100mm cast aluminium bracket
1 x 80W pump 3.2M
1 x 6M water pipe
1 set ER20 Cllets(1-13mm) 14Pcs
English manual of the VFD will send to your email.

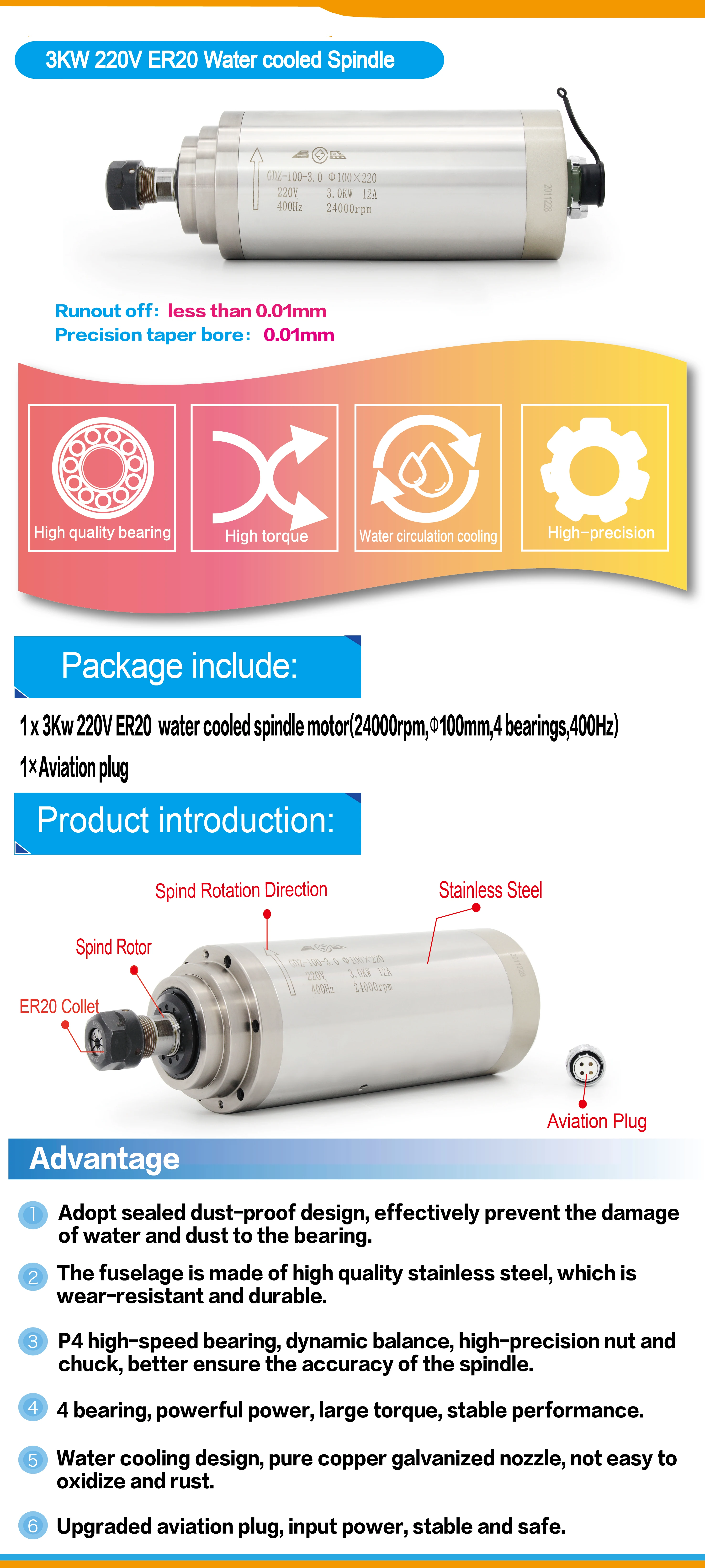

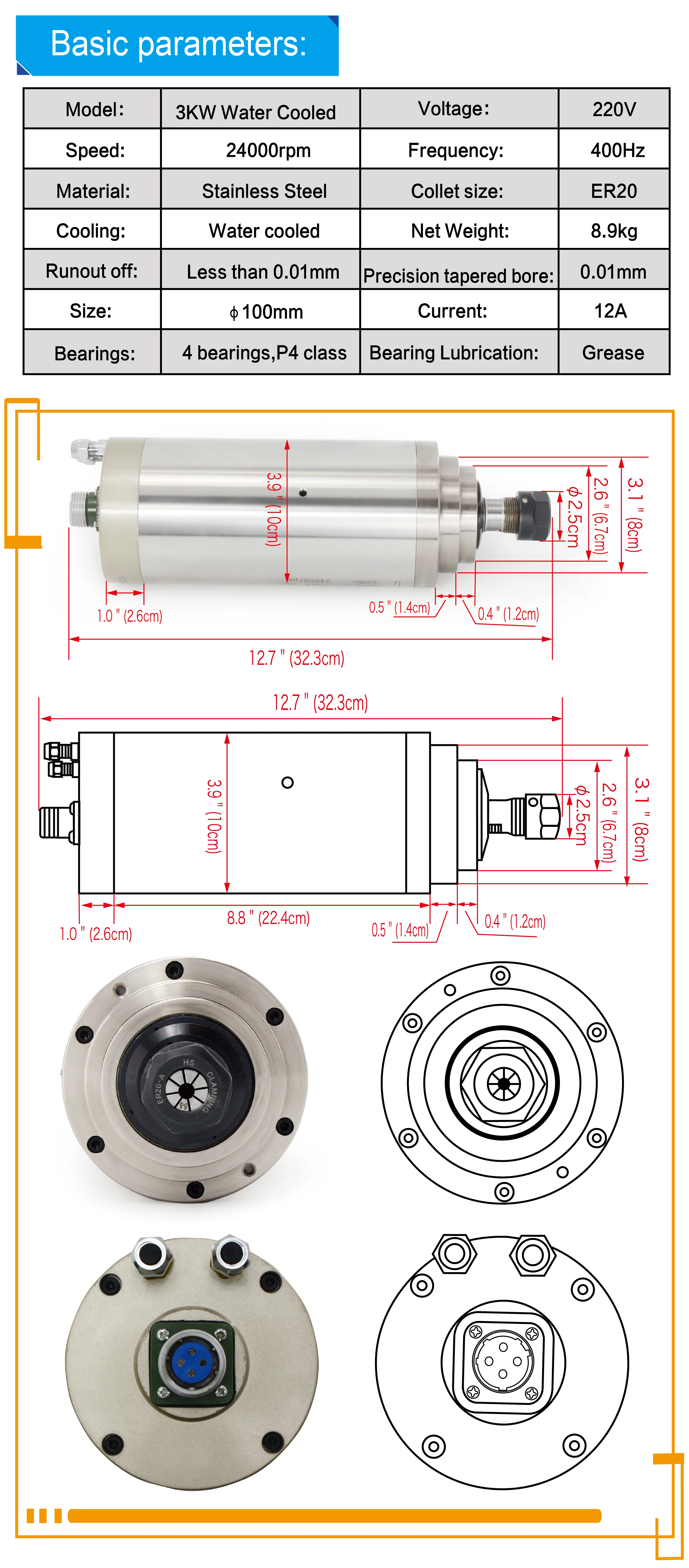

Specification:

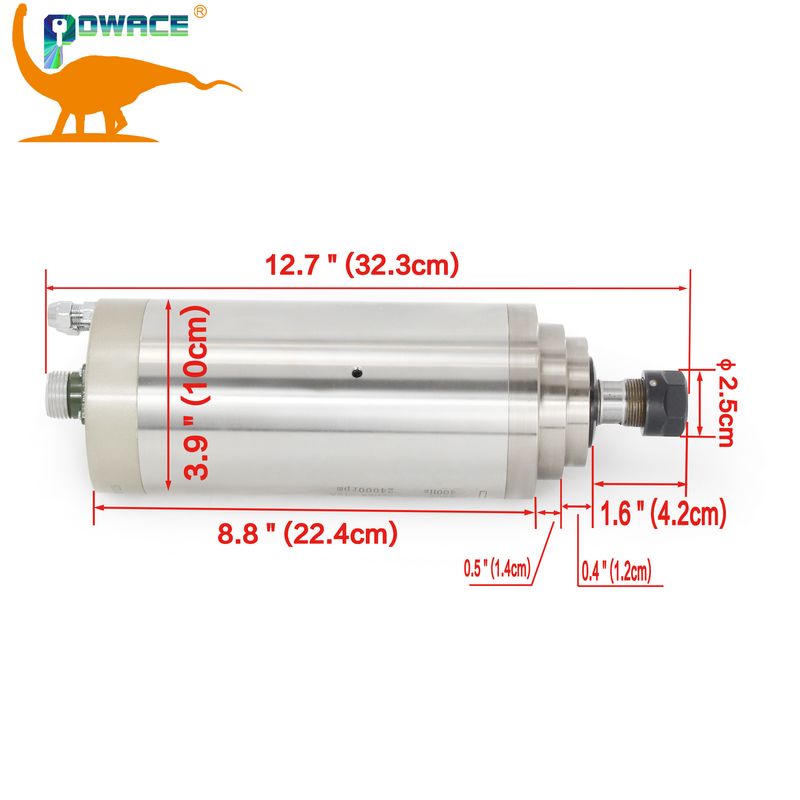

Size: 100x220mm(Middle body diameter:100mm x Length:220mm)
Power: 3Kw / 3000W
Voltage: 220VAC
Frequency: 0-400Hz
Speed: 24000rpm
Cooling: Water Cooled
Collet: ER20 collet
Runout off: less than 0.02mm
Bearing: 4pcs bearings ( 2 x7003+2 x7005 )
Bearing Lubrication: Grease

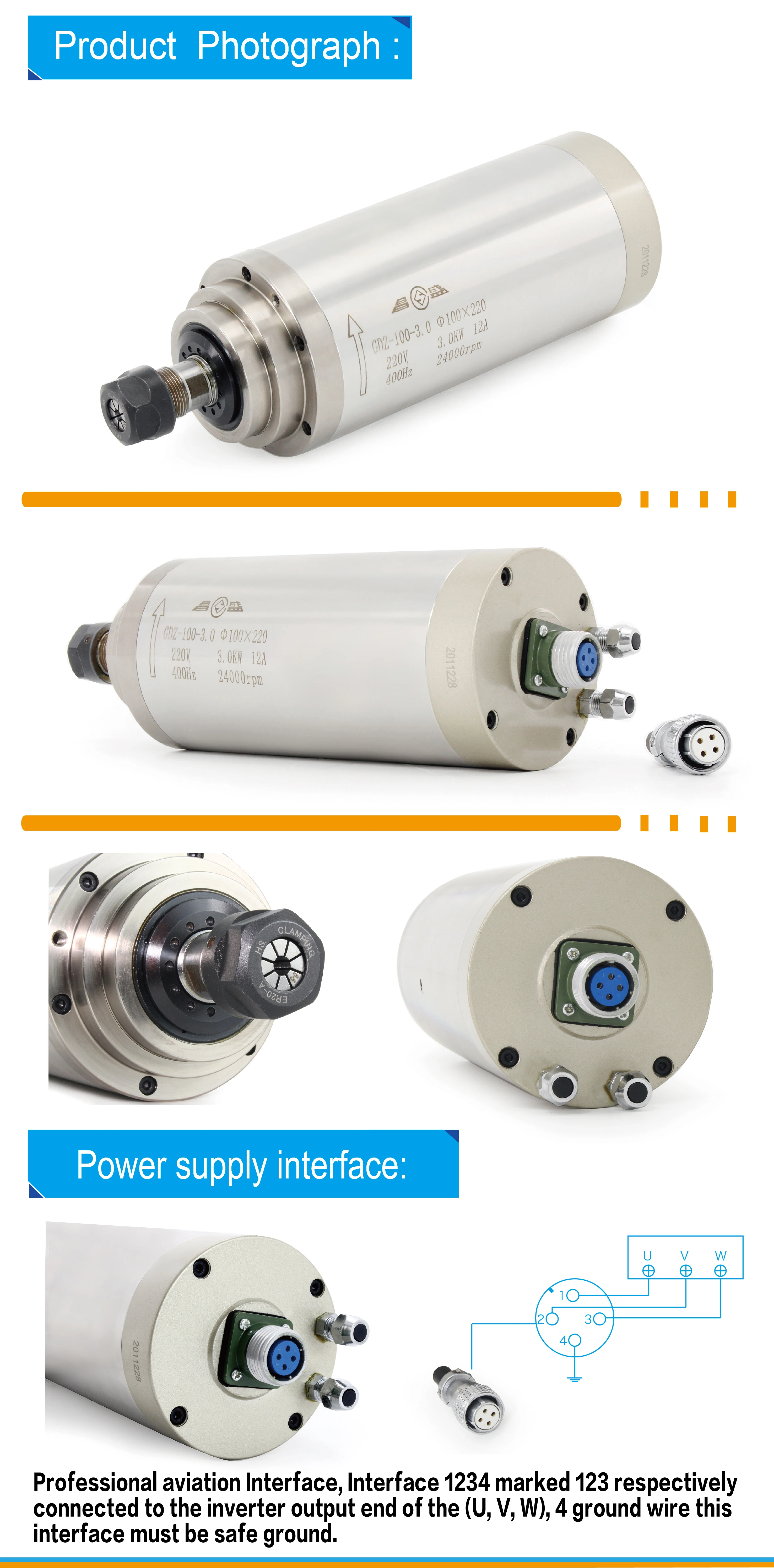

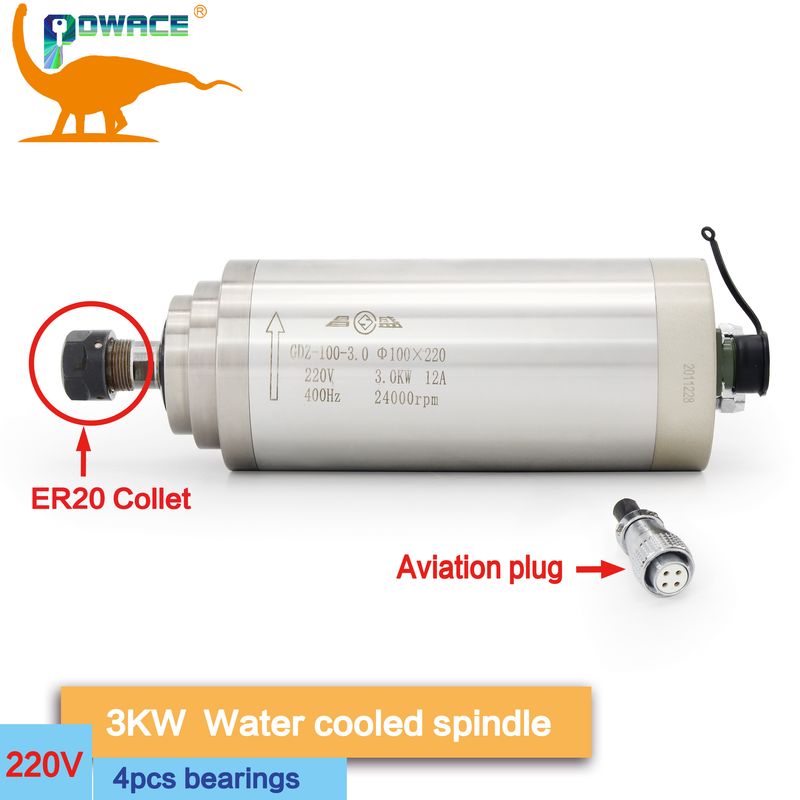

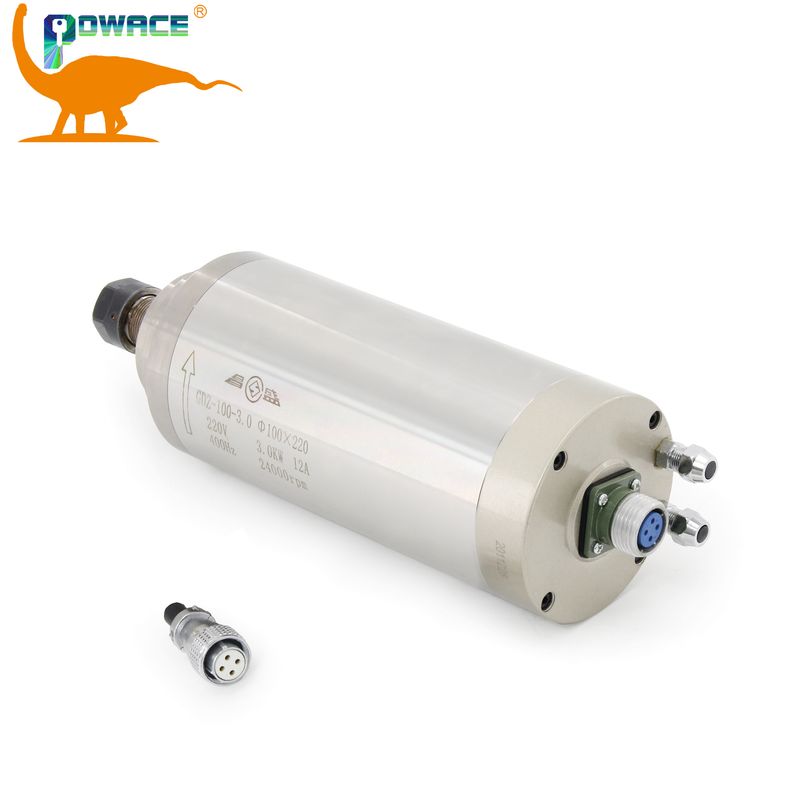

Power Interface: Professional aviation Interface, Interface 1234marked 123 respectively connected to the inverter output end of the (U, V, W), 4 ground wire this interface must be safe ground.



Specification:
Size: 100x220mm(Middle body diameter:100mm x Length:220mm)
Power: 3Kw
Voltage: 220VAC
Frequency: 0-400Hz
Speed: 10-24000rpm
Air Cooling ER20 collet chunk
Runout off: less than 0.02mm
Bearing: 4pcs bearing
Bearing Lubrication:Grease
Power Interface:Professional aviation Interface, Interface 1234 marked 123
respectively connected to the inverter output end of the (U, V, W), 4
ground wire this interface must be safe ground.

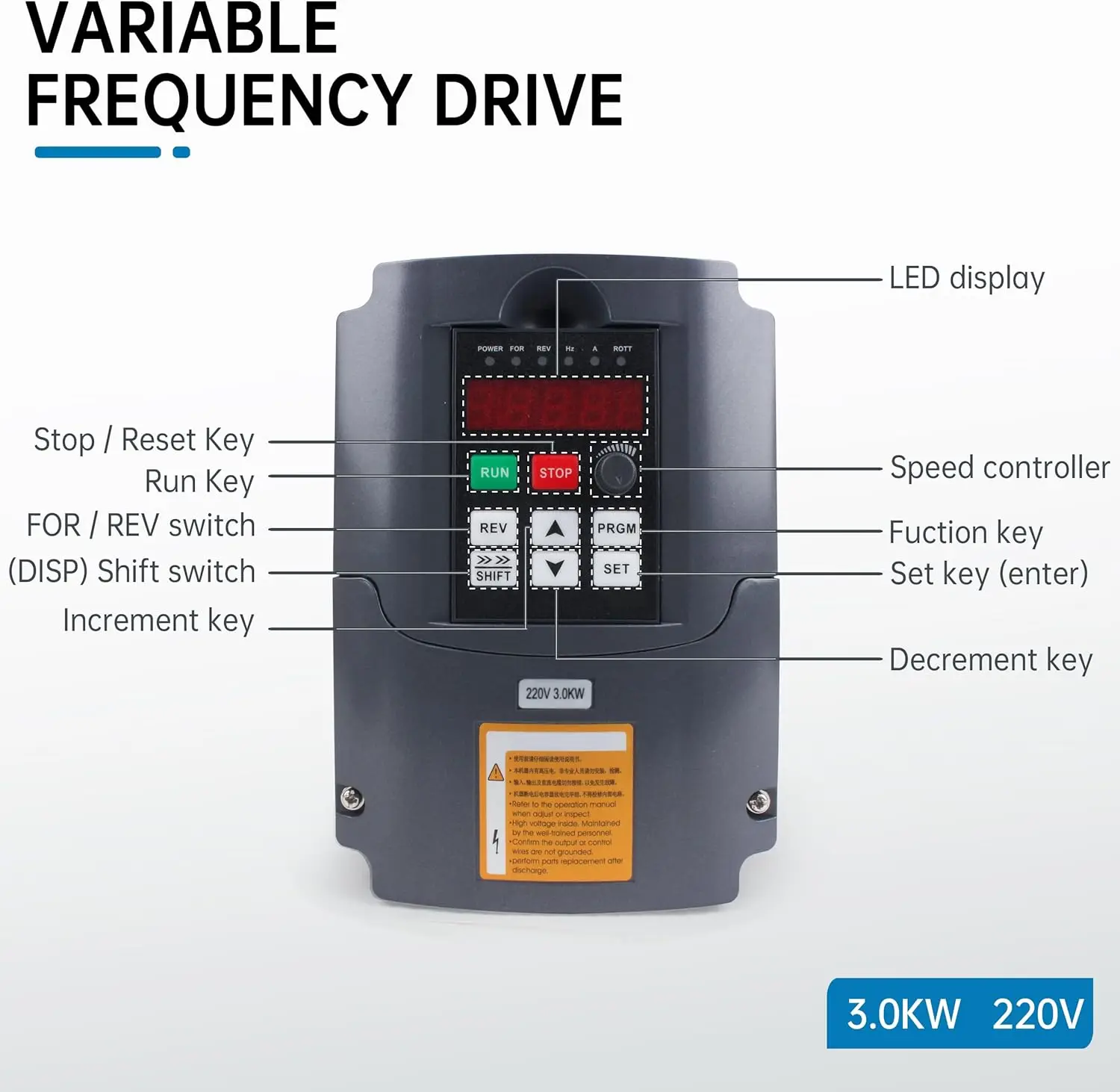

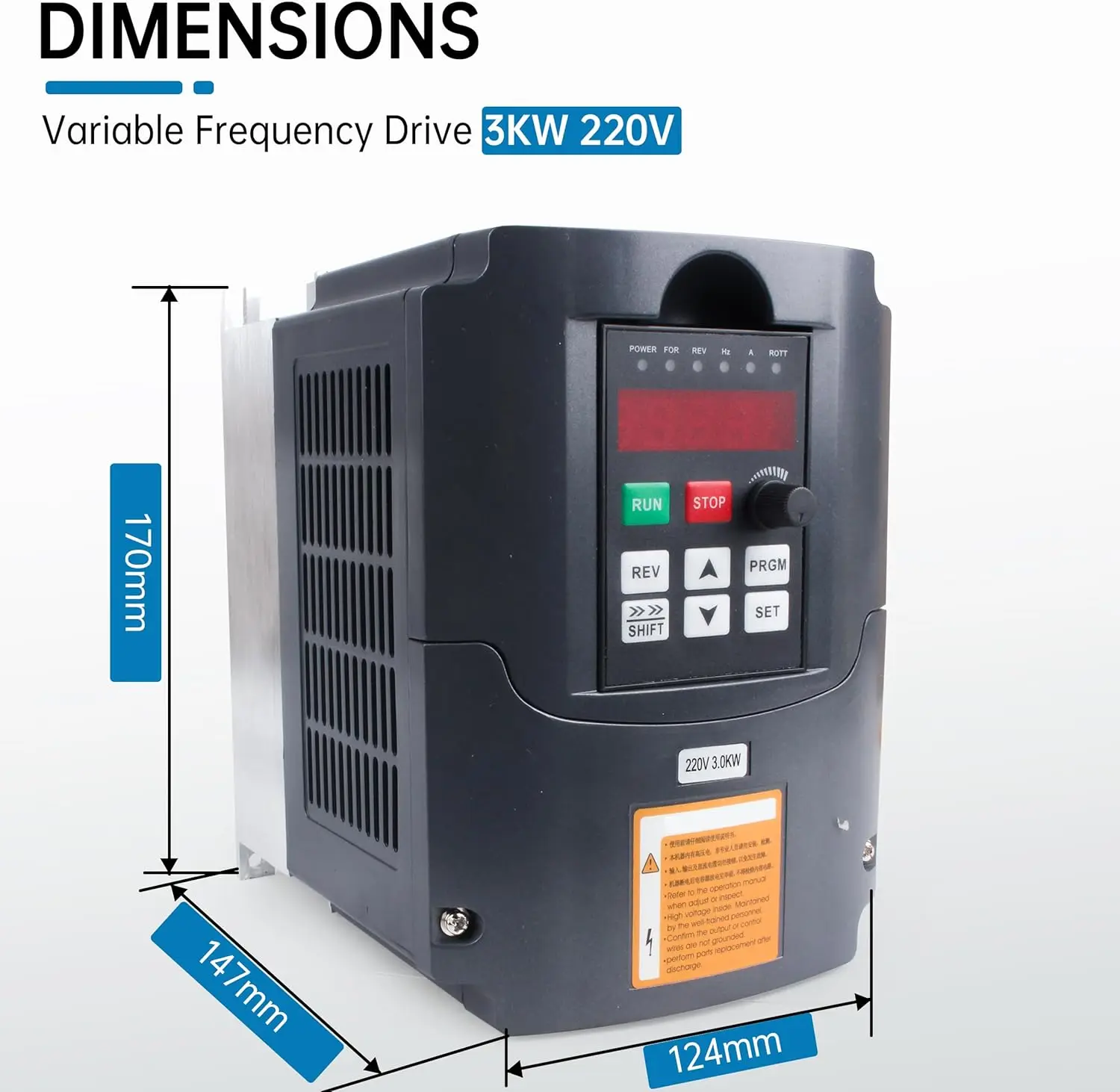

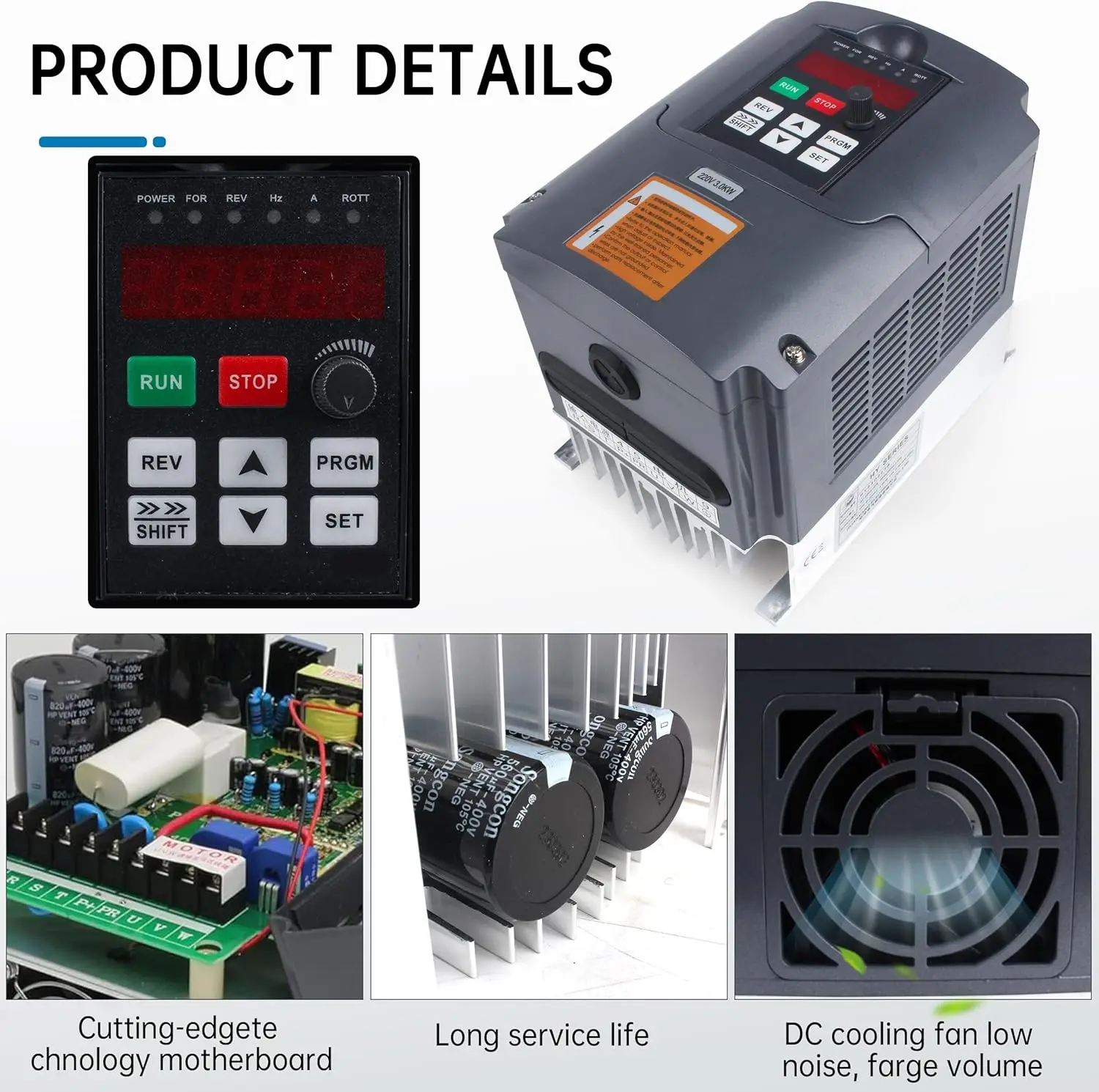

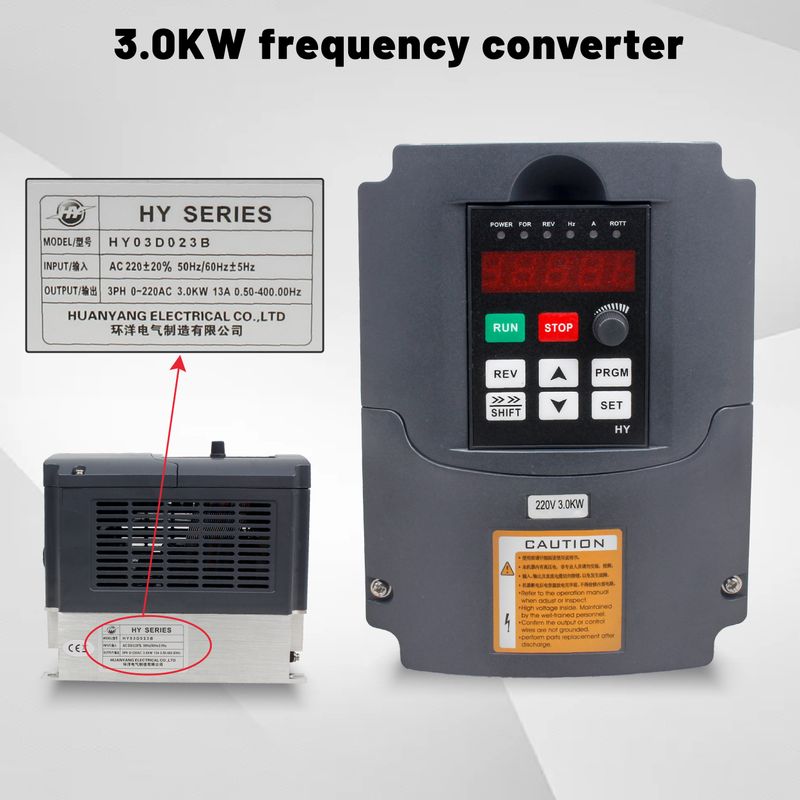

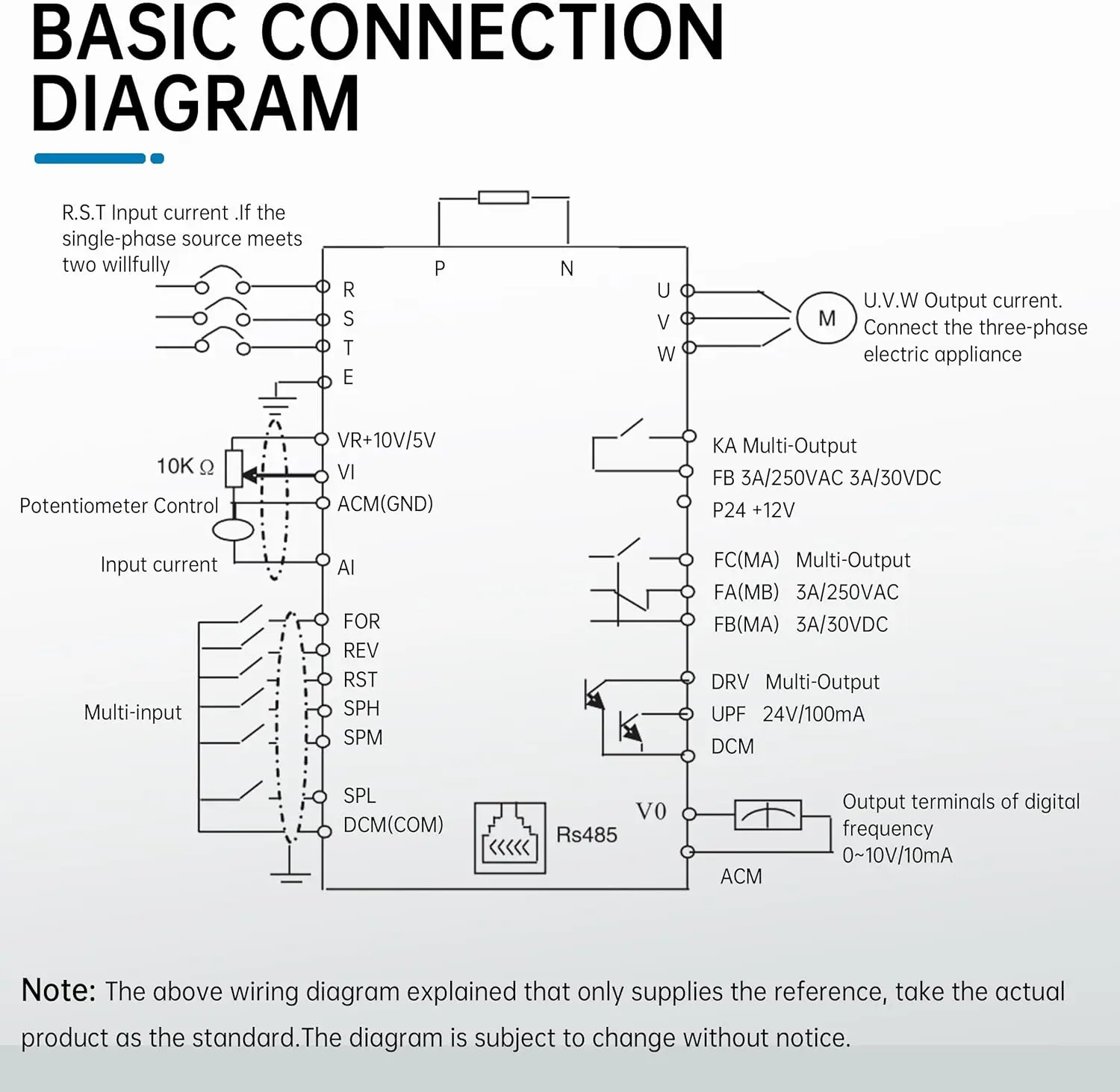

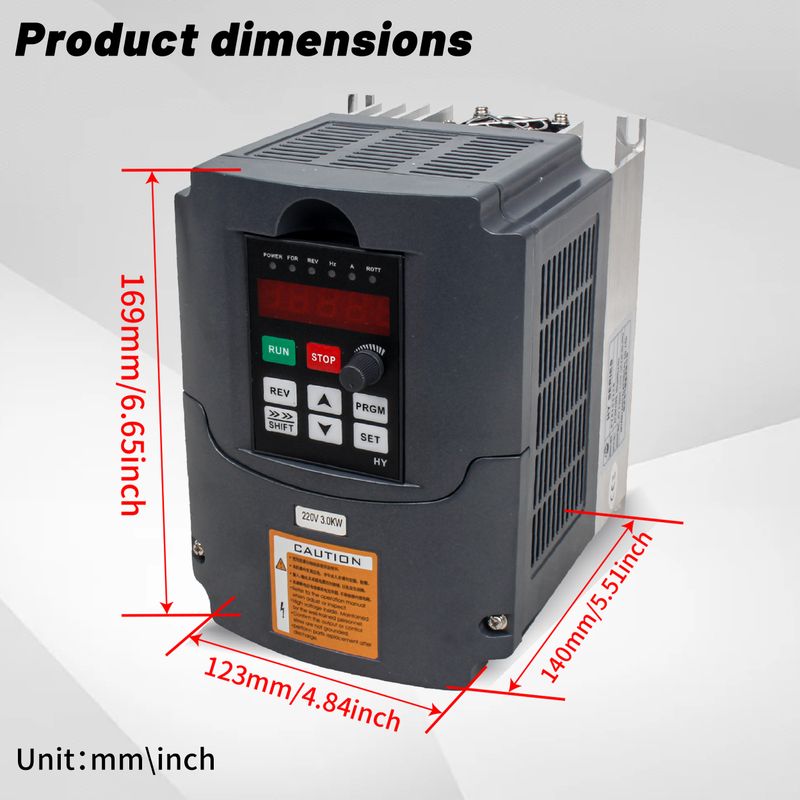

2、 3KW 220V VFD Inverter 4HP(Huan Yang Brand)



ProductFeature:
1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;
2)Easy PLC function can realize 16 legs of speed and inverter control function;
3)RS485 communication port, adopting standard international MODBUS main circuit control;
4)With extremely strong anti-jamming capability
5)Low output ratting torque0.5HZ-150%, low speed running ability;
6)Carrier adjustable by 16KHZ, completely soundless working environment;
7)Broad voltage working area, normal running in 304V-456V;
8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
9)Various
control technique by both synchronization and non-synchronization,
dynamically realize fast starting without changing brakes;
10)With perfect error protection and short circuit starting protection capability;
Tech parameters:
1) Input Voltage: 220V(+/-15%)
2) Output Voltage: 0-220V
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 or 3 phase
6) Output Phase: 3 phase
7) Current: 13A
8) Power: 3Kw
9) Warranty: 1 year from the date you purchased
Advantage:
1) Control mode is SPWM,it is very easy to use and convenient;
2) Protection functions are very strong;
3) Fin over-heat protection;
4) Overload protection;
5) Fuse protection;
6) Restart after instant stop,stall protection;
7) Powful function;
8) Reliable quality.

Specification
Series | HY inverters | |
Control Mode | SPWM | |
Input Power | 380V class:380V(+/-15%);220V class:220V(+/-15%) | |
5-Digits Display & Status Indicator Lamp | Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc. | |
Communication Control | RS-485 | |
Working Temperature | -10~40 Celsius Degrees | |
Humidity | 0-95% Relative Humidity(without dew) | |
Vibration | Below 0.5G | |
Frequency Control | Range | 0.1~2500.0Hz |
Accuracy | Digital: 0.1%(-10~40 Celsius Degrees); Analog: 0.1% (15Celsius Degrees---45Celsius Degrees) | |
Setting Resolution | Digital: 0.1Hz; Analog: 0.1% of max. Operating frequency | |
Output Resolution | 0.1Hz | |
Operator Setting Method | Press directly keys to set. | |
Analog Setting Method | External Voltage 0-5V,0-10V,4-20mA,0-20mA. | |
Other Functions | Frequency lower limit, starting frequency, stopping frequency, three skip frequencies can be respectively set. | |
General Control | Ramp Control | Selectable 4-speed steps ramp-up and -down time (0.1-6500s). |
V/F Curve | Set V/F curve at will. | |
Torque Control | Torque increase settable by max. 10.0%. The starting torque can reach 150% at 1.0Hz. | |
Multi-Inputs | 6 | |
Multi-Outputs | 5 | |
Other Functions | Auto | |
Protection Functions | Overload Protection | Electronic relay protection motor drive Drive(for constant torque 150% per min. for the kinds of fan 120% per min.) |
FuseProtection | When the fuse breaks, the motor will stop. | |
Over-voltage | 220V class:DC Voltage >400V 380V class:DC Voltage >800V | |
Under-voltage | 220V class:DC Voltage <200V 380V class:DC Voltage <400V | |
Restart After Instant Stop | Restart with Frequency Track after Instant Stop | |
Stall Protection | Stall protection in ramp operation | |
Output Short Circuit | Electrical circuit protection | |
Other Functions | Fin | |

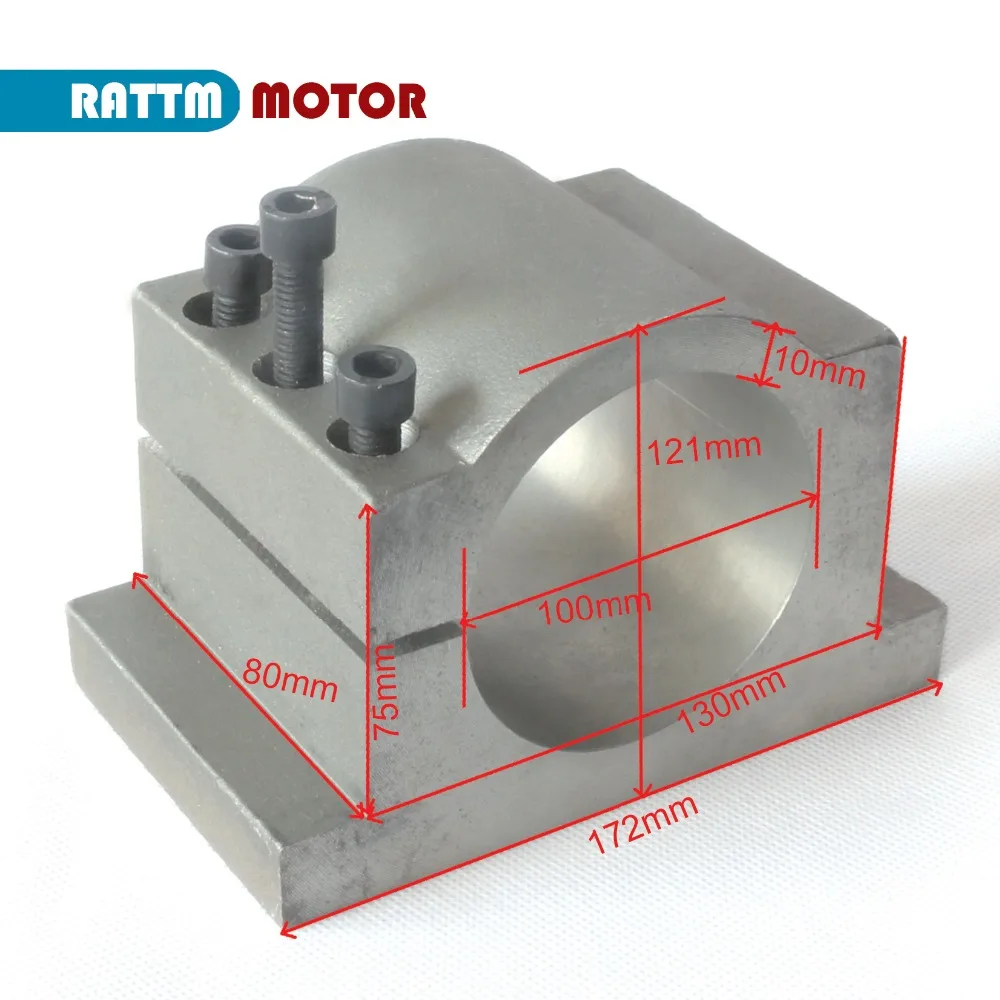

3、100mm Cast Aluminium Bracket

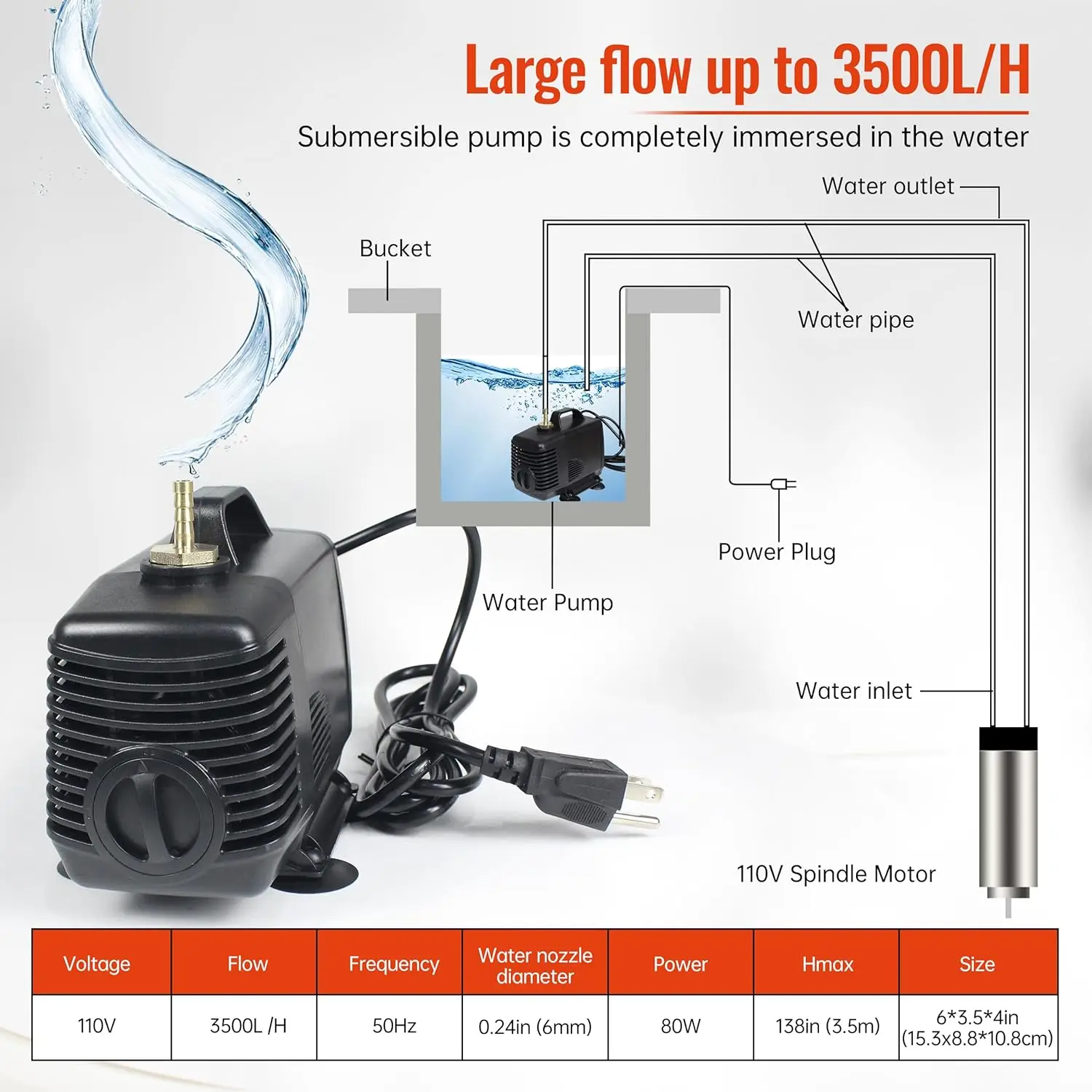

4、 80W CNC spindle motor water pump 3.2m 220VAC


Specification:
Pump length:3.2m
Voltage:220-240VAC
Power:80W
Flow:3000L/H
Size:150x80x140mm
Water nozzlediameter:6mm
Application:fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too
5、1 Set (1-13mm)14Pcs ER20 Collets

ER20 Description
Out dia (D1):11.5mm
Height (H):18mm
Hole dia (D2):1-13mm
Run-out tolerance 0.1mm (0.006")
First class 1065 carbon steel
Hardened & precision ground
