FX1N-14MT PLC industrial control board Simple delay relay module

Description

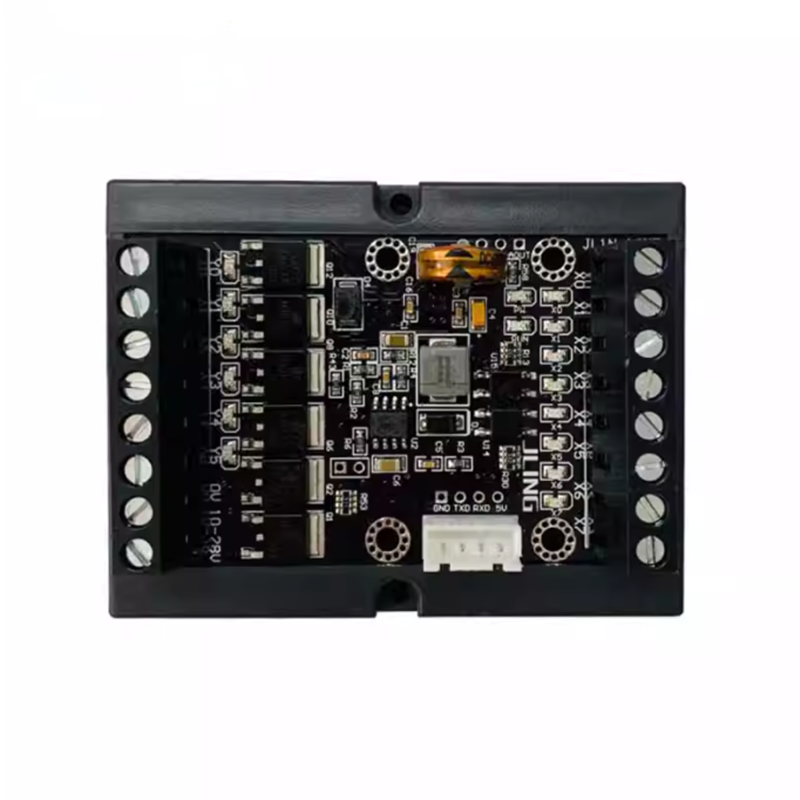

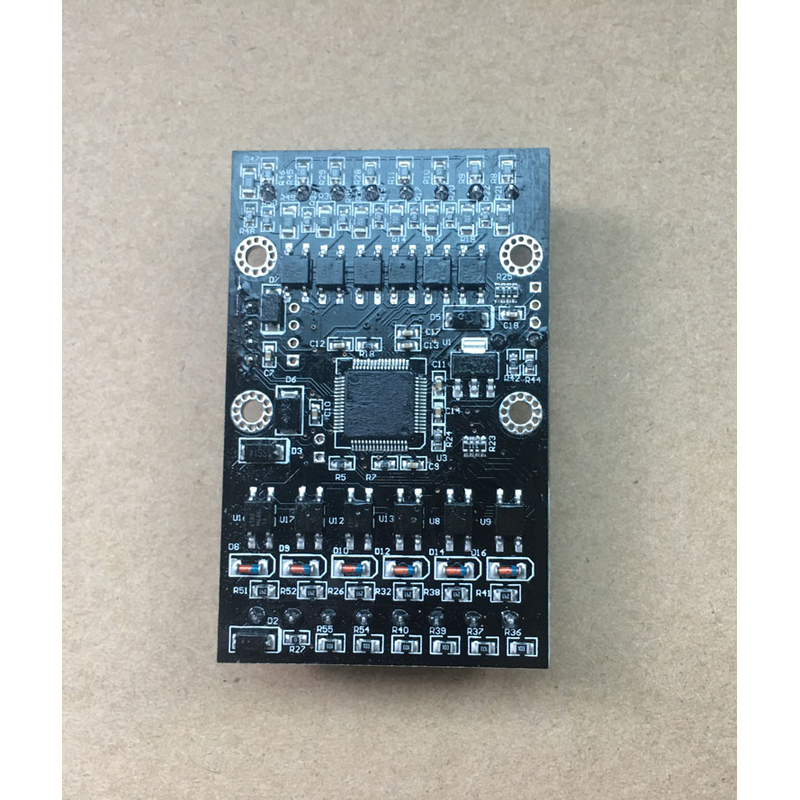

Package 1: FX1N-14MT bare board

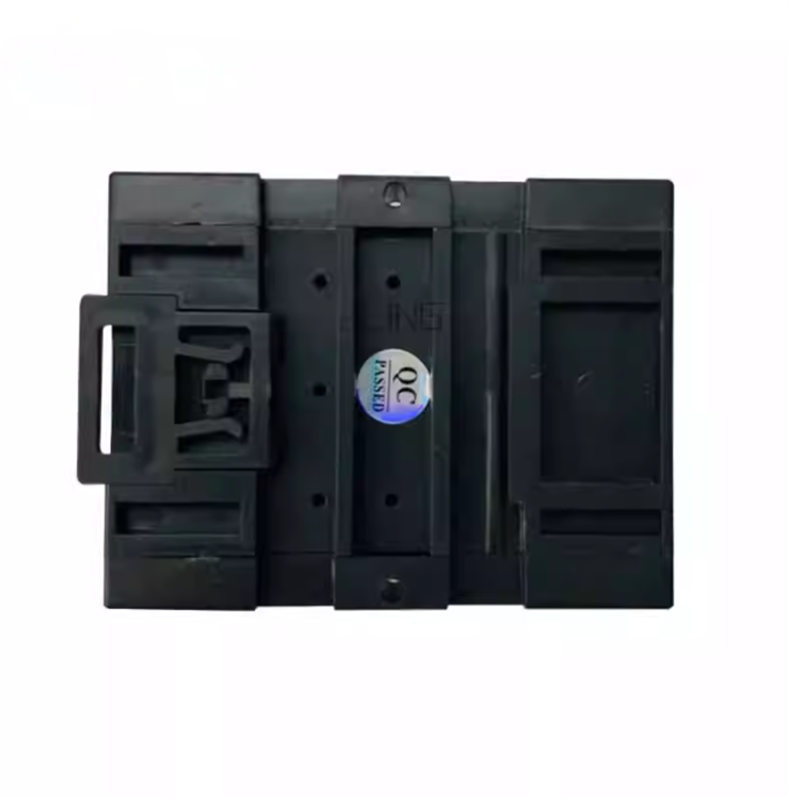

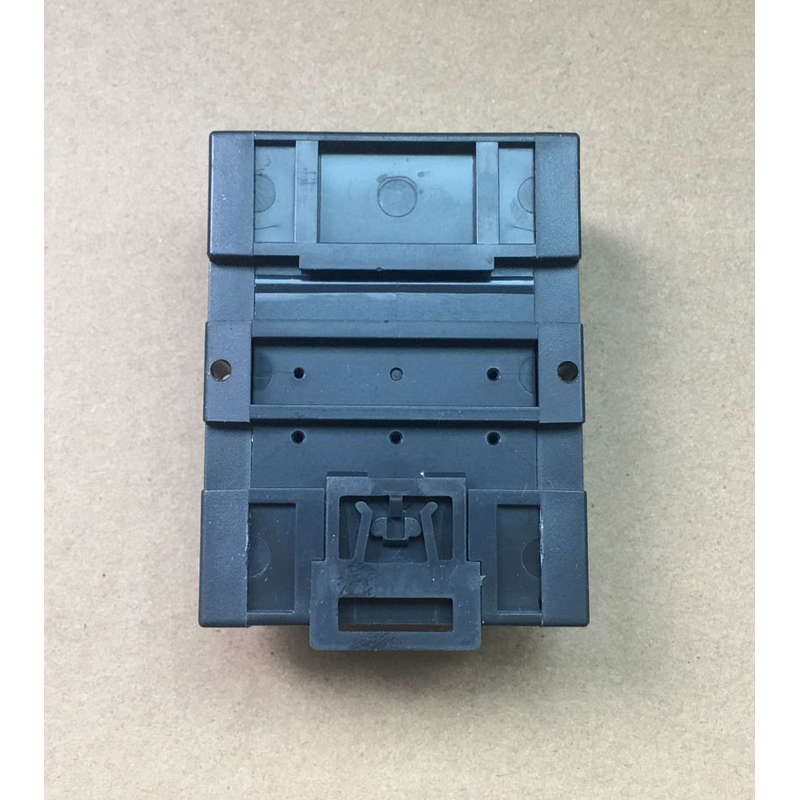

Package 2: FX1N-14MT+ shell

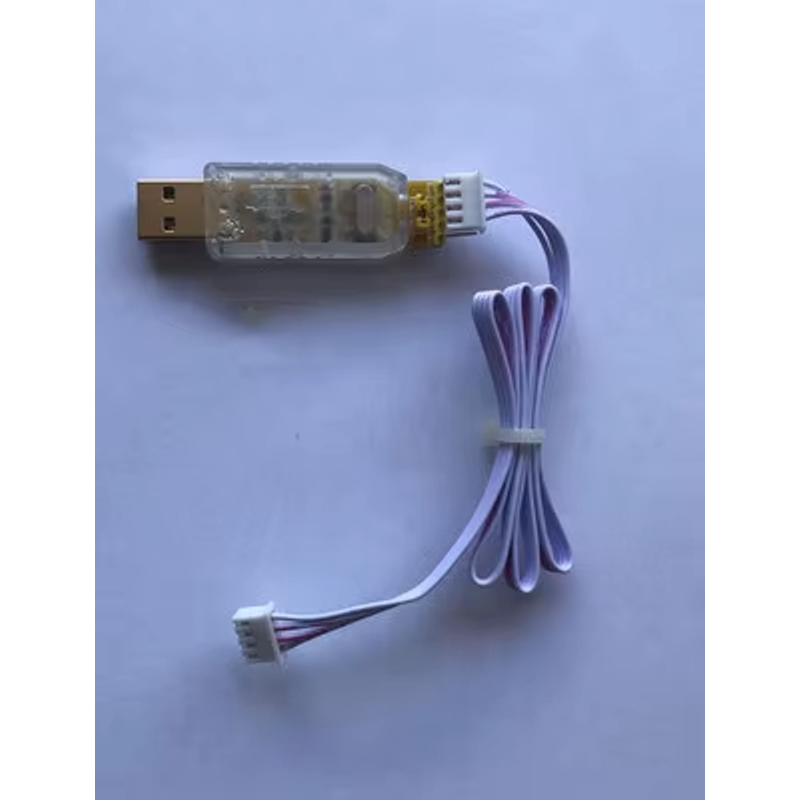

Package 3: USB to TTL programming line

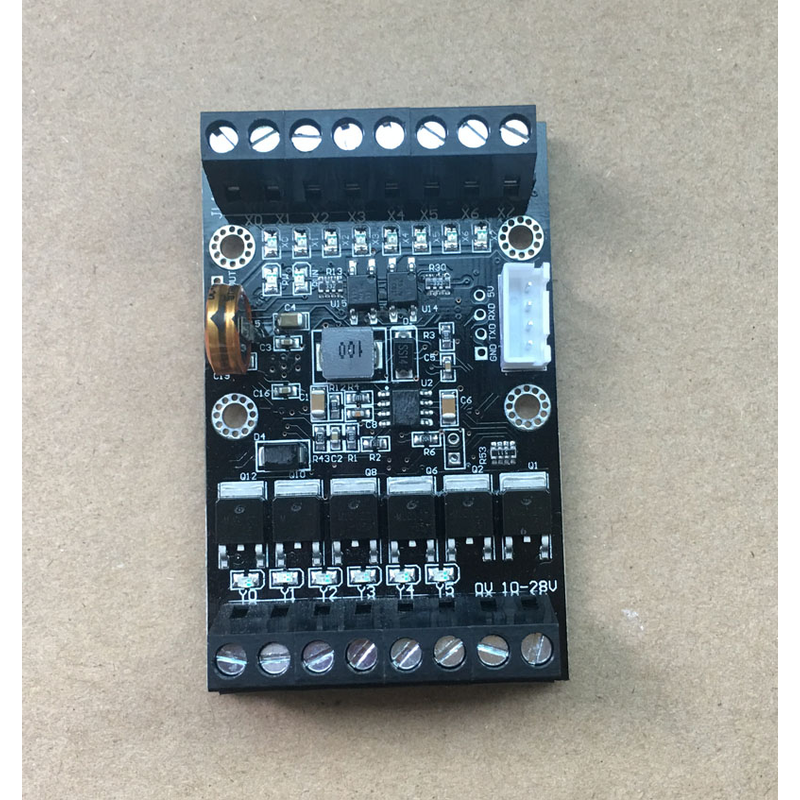

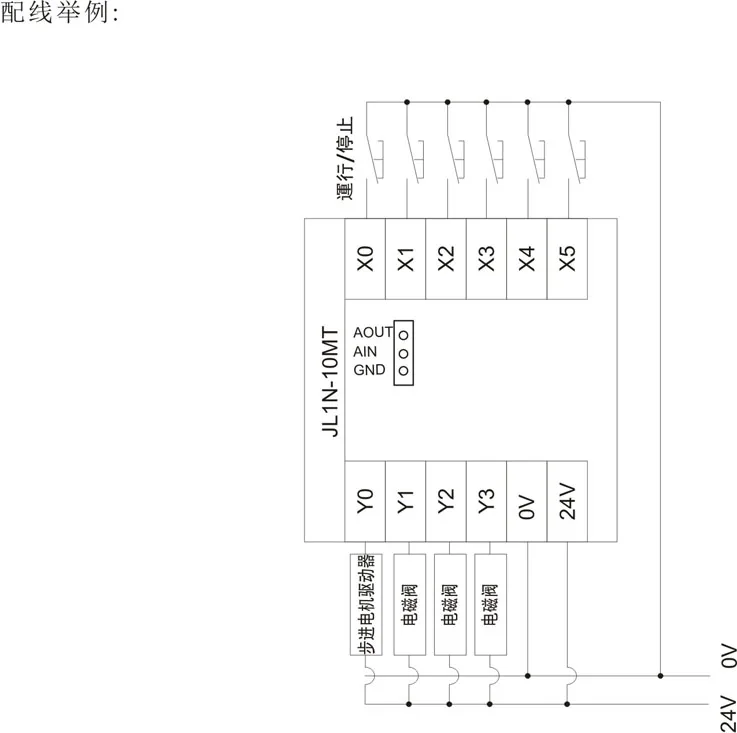

8-point input, 6-point transistor open collector output, wide supply voltage 10-28VDC
Dimensions: length X width X height: 46X73X20mm. Mounting hole size: 38*22.5 Secure with 4 M3 screws.

This board is a PLC board, directly using GX programming software to write ladder diagrams, directly written to the PLC, can be monitored online, the price is even cheaper than the single-chip board.

Advantages of using a PLC board:
1. Easy to program, customers can learn to program in one day
2. Reusable
3. High stability
4. Easy to expand

1. Comprehensive, systematic anti-interference treatment, power supply circuit through multiple anti-interference design, no fear of all kinds of harsh electromagnetic interference working environment.

2. Use powerful 32-bit high-speed ARM core CPU; can be programmed with FXGPWIN or GX Developer

Can be downloaded\Debug\Monitor

(No software conversion is required, the same download method as regular PLC)

Scope of application: It can be flexibly used in various industrial automatic control applications, such as metallurgy, chemical, plastic, textile, food, packaging, printing, building materials, woodworking, central air conditioning, environmental protection equipment and single process control equipment. Mechanical, industrial assembly lines, industrial control equipment for various machine tools.

6. This industrial control board can supply power to 10VDC-24VDC, and the selection type is FX1N. Input: X0-X7 a total of 8 points, output: Y0-Y5 a total of 6 points. Maximum memory capacity: 8000 steps (the board has been sprayed with three anti-paints to better adapt to complex application environments)

Module function:

This module is programmable control, can realize thousands of functions, stable and reliable working performance, built-in watchdog timing circuit, effectively guarantee the module to run for a long time! ! ! .

Some of the common features are shown below:

1. Turn on the power, the relay 1 is closed after N seconds of closing; then the relay 2 is closed after N seconds of closing.
2. Turn on the power, the relay 1 is turned off after N seconds of closing; then the relay 2 is turned off after N seconds, and then cycles.
3. When the power is turned on, the relays 1 and 2 are not activated. When there is a signal or a button is triggered, the relay 1 is turned off after N seconds is closed; then the relay 2 is turned off after N seconds and then turned off until the next trigger, repeating the same action.
4. By programming the signals 1, 2, any control of the relays 1 and 2 can be achieved.
5. When signal 1 has a signal, relay 1 is closed and relay 2 is open; when signal 2 has a signal, relay 1 is open and relay 2 is closed.
6. Only the NPN sensor signal can be connected, and the sensor signal can be programmed to realize any control of the relay.
7. When signal 1 has a trigger, control relay 1; when signal 2 has a trigger, control relay 2.
8. Turn on the power, control the motor to rotate for N seconds, then reverse N seconds, and cycle.
9. When the signal 1 has a signal, the motor is controlled to rotate forward; when the signal 2 has a signal, the motor is controlled to reverse.
The above are just some examples. The functions that the module can achieve are far more than these.

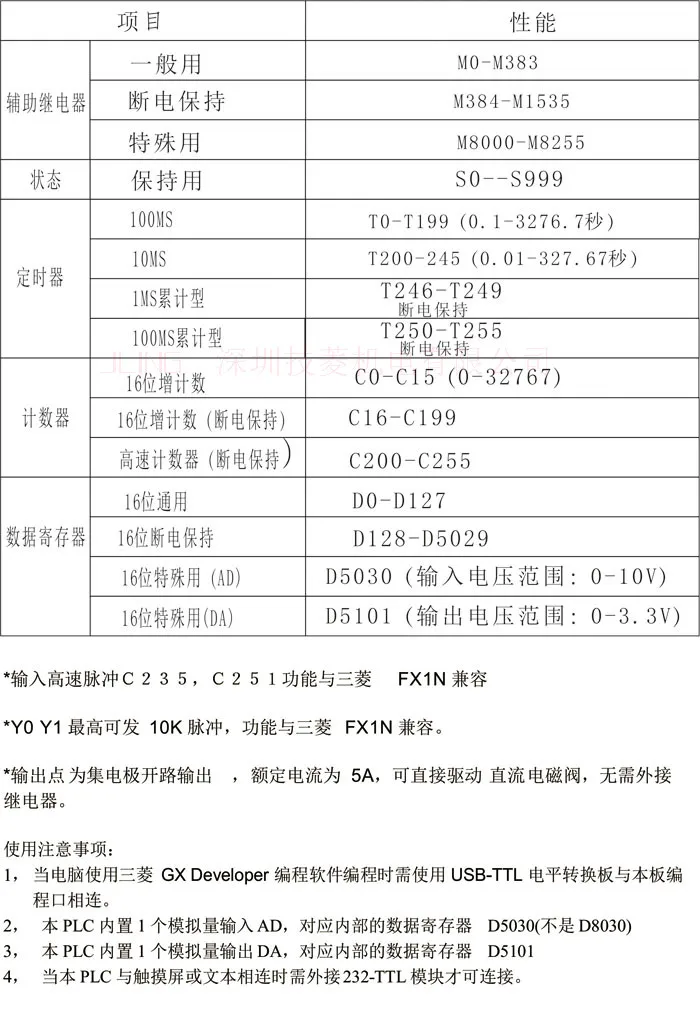

project

performance

Auxiliary relay

General use

MO-M383

Power outage

M384-M1535

Special use

M8000-M8255

status

Keep in use

S0--S999

Timer

100MS

T0T199(0.1-3276.7second)

10MS

T200-245(0.01-327.67second)

1MS cumulative type

T246-T249

Power outage

100MS cumulative type

T250-T255

Power outage

counter

16-bit increment

C0-C15(0-32767)

16-bit increment (power-off retention)

C16-C199

High speed counter (power off retention)

C200-C255

Data register

16-bit universal

D0-D127

16-bit power-off retention

D128-D5029

16-bit special use (AD)

D5030(Input voltage range：0-10V)

16-bit special use (DA)

D5101(output voltage range:0-3.3V)

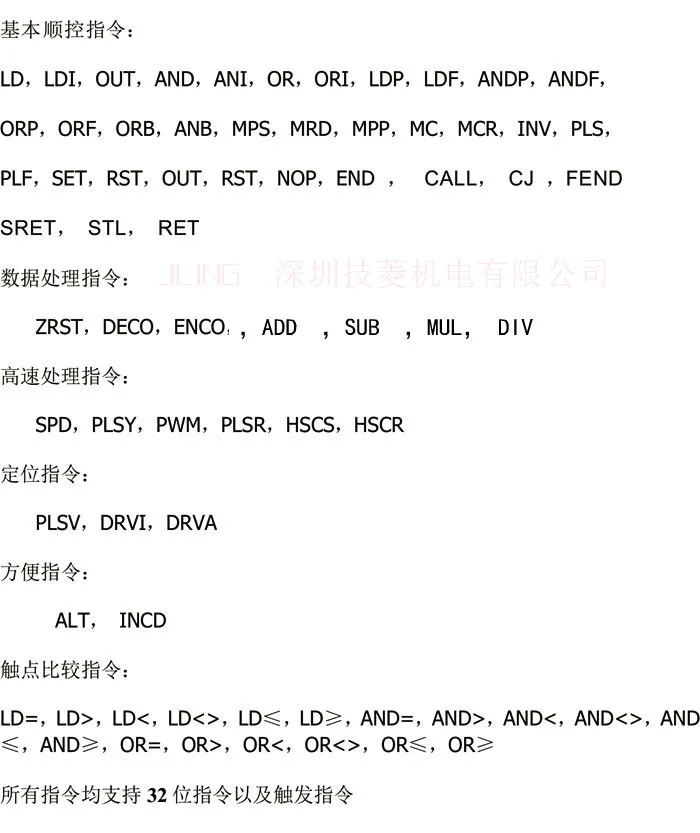

Input high speed pulse C 2 3 5, C 2 5 1 function compatible with FX1N
Y0 Y1 can send up to 10K pulse, and its function is compatible with FX1N.
The output point is an open collector output with a rated current of 5A, which can directly drive the DC valve without external relay.

Precautions for use:
1. When the computer is programmed with GX Developer programming software, it must be connected to the board programming port using a USB-TTL level conversion board.
2. This PLC has one analog input AD built in, corresponding to the internal data register D5030 (not D8030).
3. This PLC has one analog output DA built in, corresponding to the internal data register D5101.
4. When the PLC is connected to the touch screen or text, the external 232-TTL module can be connected.
