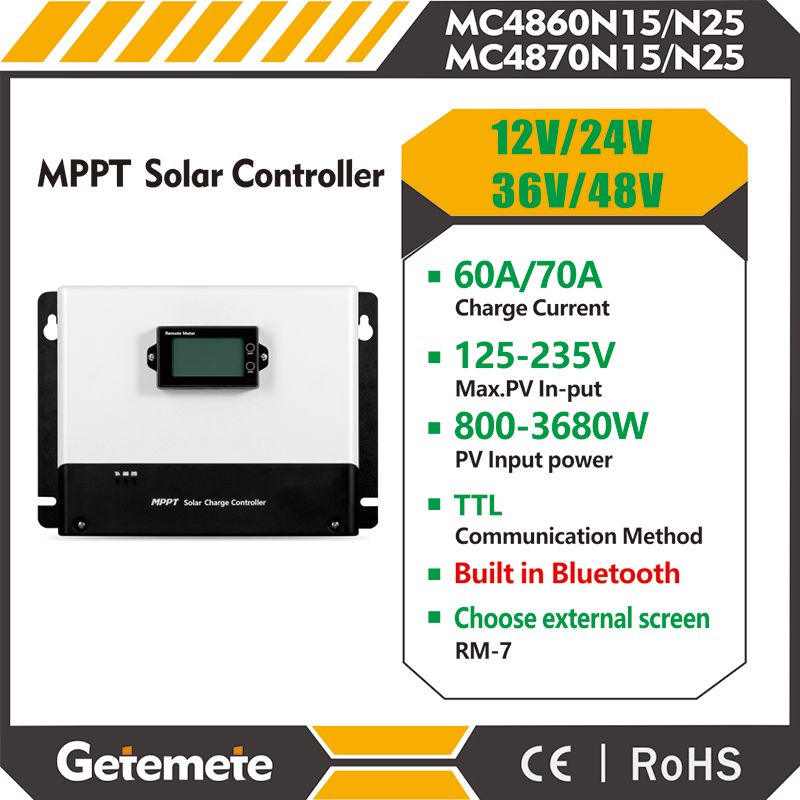

Introduction:
The controller adopts the leading PowerCatcher maximal power Tracking technology in the industry to
achieve maximal energy Tracking for solar panel, so that it can quickly and accurately trace the maximal power
point of the solar battery, acquire the maximal energy of the solar panel and significantly improve the energy
utilization ratio of the solar system. Widely applied to solar off-line photovoltaic system for managing solar panel
and storage battery in operation, the controller is the core control component of off-line photovoltaic system.
The inside of the controller possesses sound electronic failure detecting and protection function to avoid the
product component damage caused by installation error and system failure.
The controller is equipped with an LCD display screen to simultaneously support data interaction, setting
and other operations with mobile phone APP, PC upper computer and other devices.

Feature:
1、PowerCatcher maximal power Tracking technology can still trace the maximal power point of solar battery in the
complicated environment. Compared with traditional MPPT Tracking technology, it enjoys higher response speed
and higher Tracking efficiency.
2、MPPT charge efficiency is greater than traditional PWM charge efficiency by about 15% ~20%.
3、MPPT Tracking efficiency can be as much as 99.9%.
4、Adopting advanced digital power technology, the circuit energy conversion efficiency can be as much as 98%.
5、The products support lithium batteries, charging output has active voltage stabilization function. In case of open
circuit of lithium batteries or BMS overcharging protection, the storage battery end of the controller shall output
stable target voltages in time, thereby possessing good lithium electric activation function.
6、Preset a variety of battery types: lithium batteries, sealed batteries, colloidal batteries, open batteries and self-
definition.
7、Lead-acid batteries support temperature compensation function.
8、With charging line loss compensation, the voltage of the battery terminal can be accurately controlled.
9、With current-limiting charging, in case of too much battery panel power (charging current is greater than rated
current), the controller automatically reduces the charging power so that it can operate within the rated charging
current.
10、With built-in overtemperature protection mechanism, when the temperature exceeds the set temperature value,
the charging power shall decline in a linear way with the temperature.
11、It supports parallel function and breaks through the power limit of single unit. Therefore, combination of several
units can meet greater charging power.
12、With built-in bluetooth 4.0BLE module, it can achieve mobilephone APP data interaction.
13、Supporting standard Modbus protocol, it provides protocol technology support to facilitate secondary
development and application by users.
14、Programmable relay output

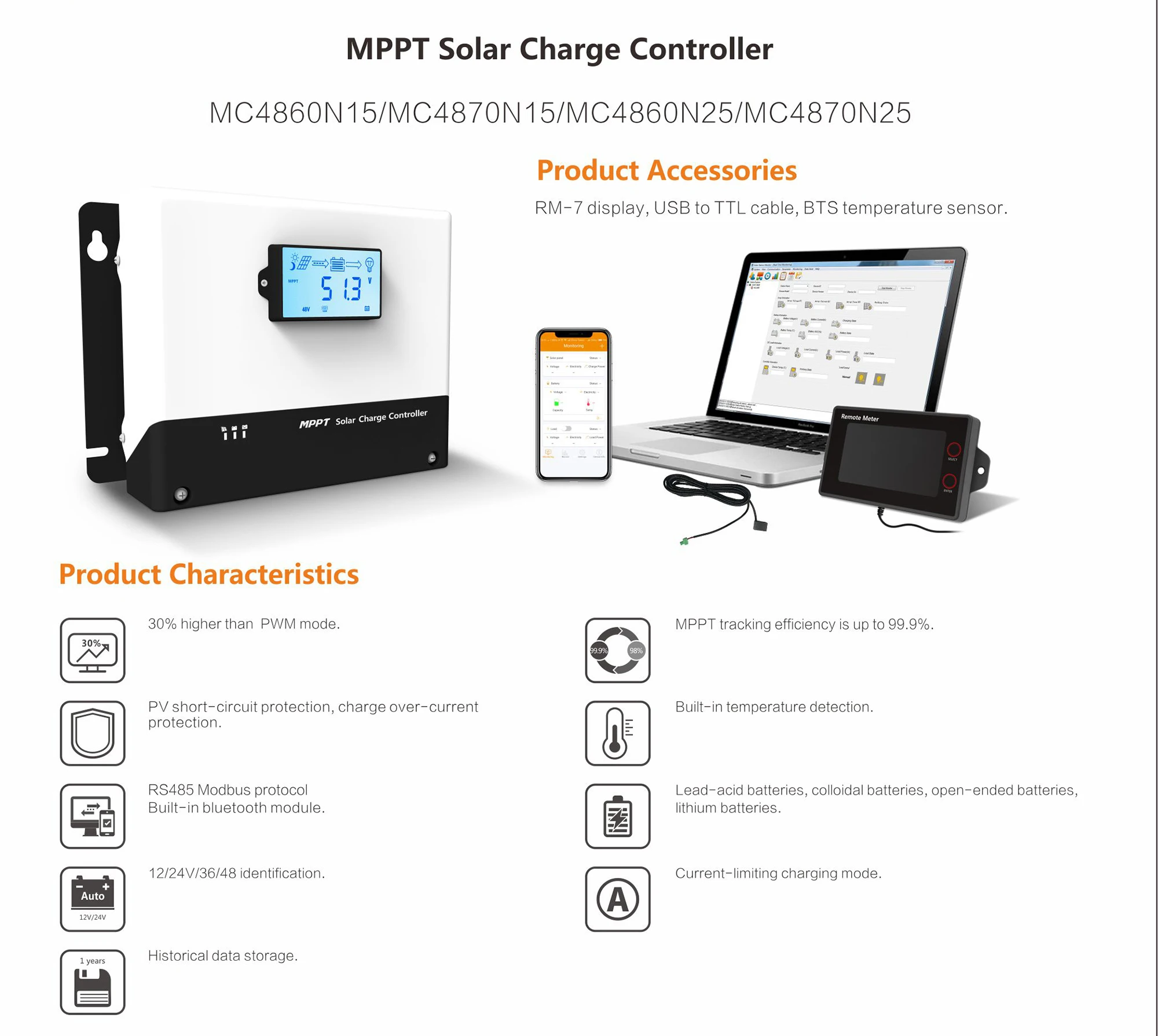

Description of Appearance and Interface:

①Liquid crystal display (LCD)
②Bluetooth 4.0BLE module
③Positive interface of battery
④Negative interface of battery
⑤Negative interface of solar panel
⑥Positive interface of solar panel
⑦RS485 communication interface
⑧Key
⑨TTL communication interface

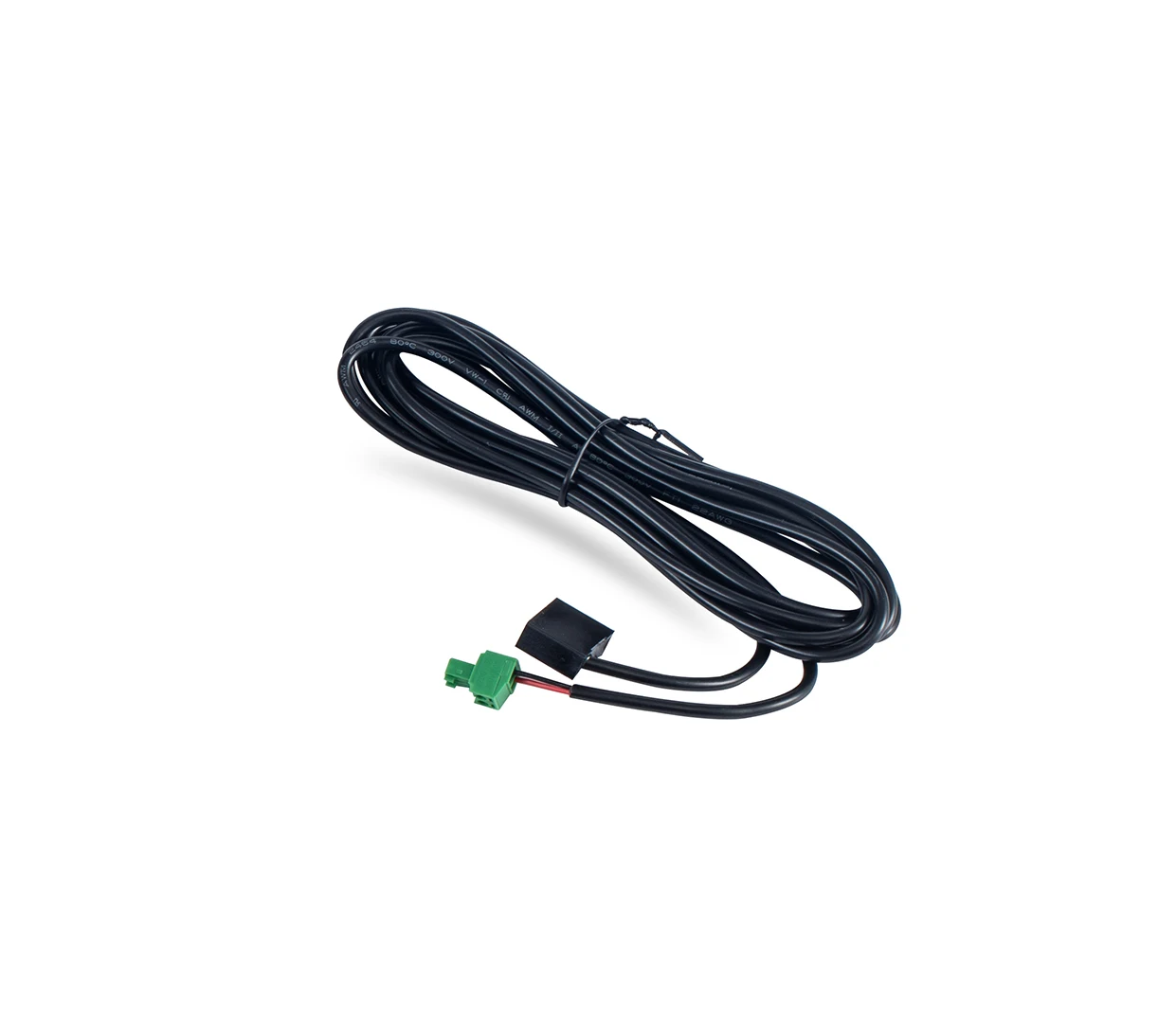

⑩Battery temperature sampling interface
⑪Battery voltage sampling interface
⑫Relay output interface
Note: Negative poles of storage battery and solar battery are a common negative pole design
Remote Meter:

System Wiring Schematic Diagram:
Sepecification:
Model | MC4860N15 | MC4870N15 | MC4860N25 | MC4870N25 |
System Voltage | 12V/24V/36V/48V | |||
No-load loss | 0.54W | |||
Battery voltage | 9V~64V | |||
Maximal PV open-circuit voltage | 150V | 250V | ||
Rated charging current | 50A | 40A | ||
Maximal voltage range at | Battery voltage +2~110V | Battery voltage +2~180V | ||
Rated charging current | 60A | 70A | 60A | 70A |
Settable charging current | 0-60A | 0-70A | 0-60A | 0-70A |
Power of solar panel (12V) | 800W | 920W | 800W | 920W |
Power of solar panel (24V) | 1600W | 1840W | 1600W | 1840W |
Power of solar panel (36V) | 2400W | 2760W | 2400W | 2760W |
Power of solar panel (48V) | 3200W | 3680W | 3200W | 3680W |
Charging conversion efficiency | ≤98% | |||
MPPT tracing efficiency | >99% | |||
Temperature compensation | -3mV/℃/2V (default, settable lead-acid); no temperature compensation | |||
Communication way | TTL/Isolated RS485; baud rate 9600, digital bit 3, stop bit 1, no check bit | |||
Bluetooth | Built-in bluetooth 4.0BLE module, achieving mobilephone APP monitoring | |||
Internal temperature protection | When interior temperature of controller is higher than | |||
External temperature | The temperature is used for battery temperature compensation and | |||
Programmable relay | DPST 10A/250VAC;10A/30VDC | |||
Protection function | Battery overcharging protection, battery over discharge protection, | |||
Operation temperature | -35℃~+65℃(No derating within 40 ℃) | |||
Elevation | ≤3000m | |||
Protection grade | IP32 | |||
Weight | 3.6kg | |||
Product size | Conventional:266*194*119mm | |||

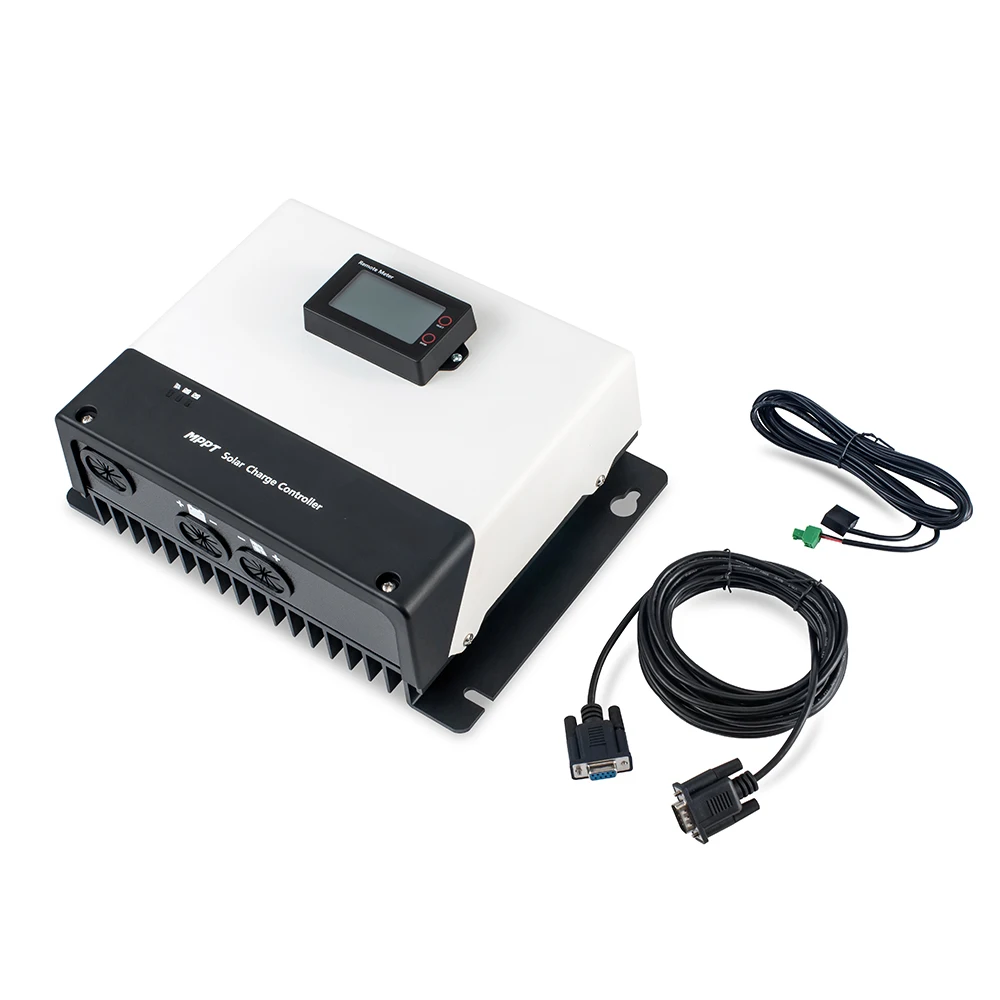

Package Include:

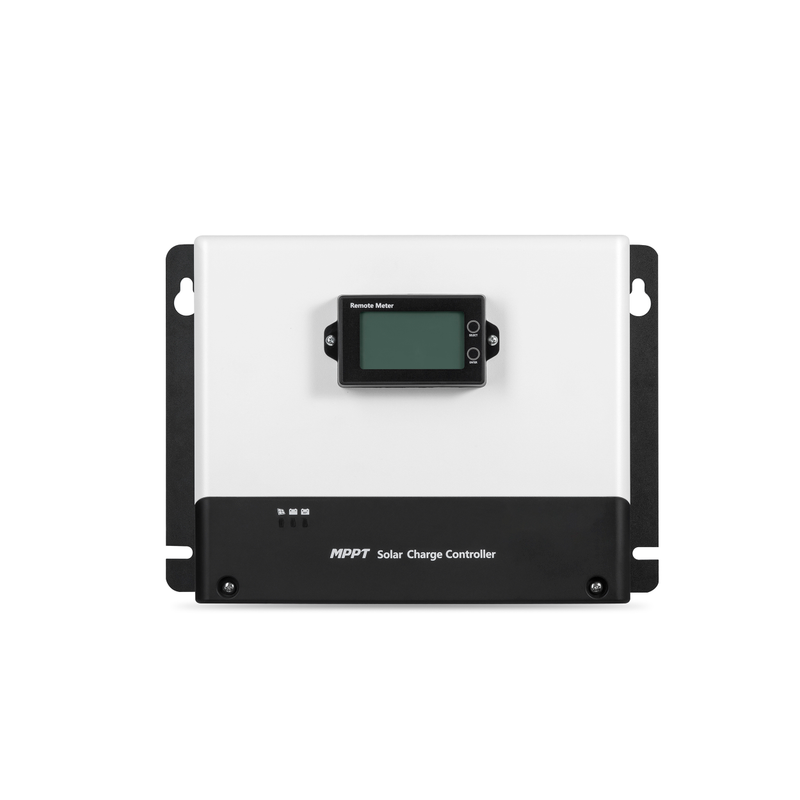

Item Pictures:
