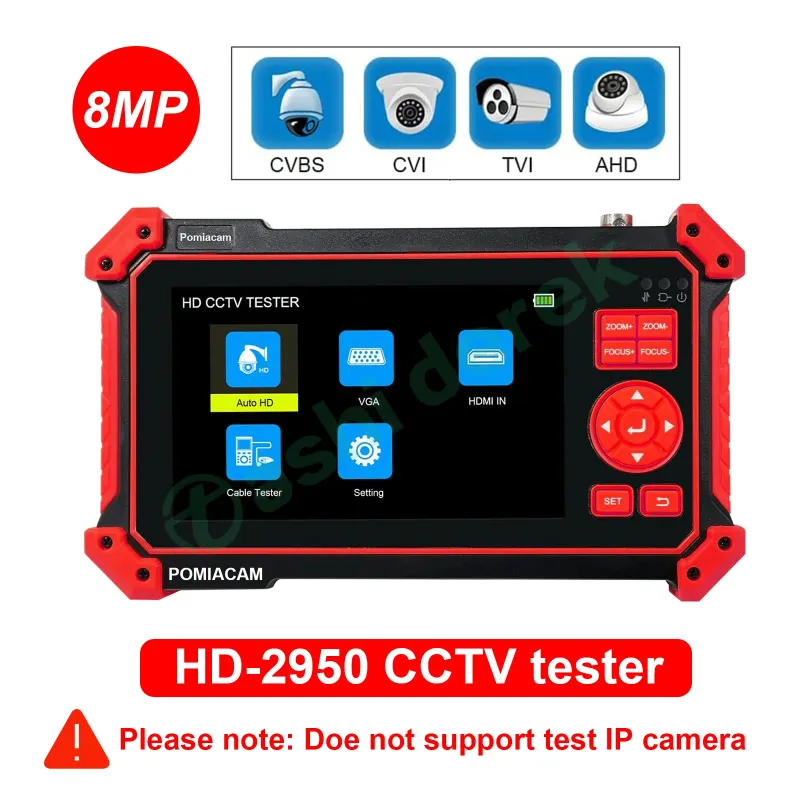

HD-2950 Tester Monitor CVBS 8MP AHD/CVI/TVI 4-In-1 Camera Tester CCTV 5 Inch Monitor Support PTZ Audio VGA HDMI Cable Testing

$202.50

Includes all taxes

Color
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Model:HD-2950 (This model does not support test IP network camera)


Screen/Resolution:5 inch TFT-LCD screen / 800*480 resolution
CVBS:1 channel BNC input, NTSC/PAL (Auto adapt), PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as for PELCO-D/P, for Samsung, for Panasonic, etc

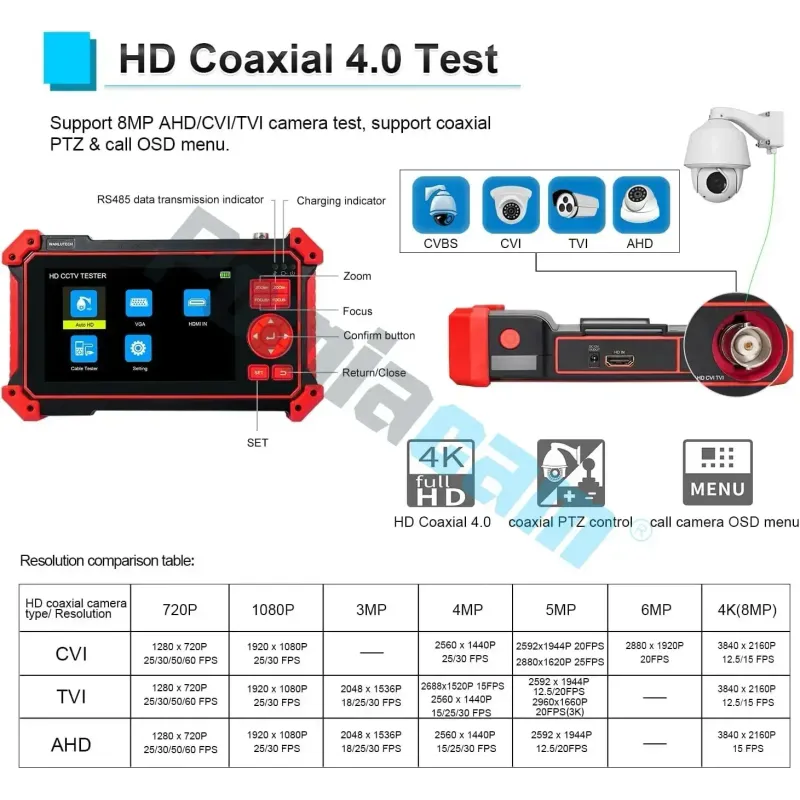

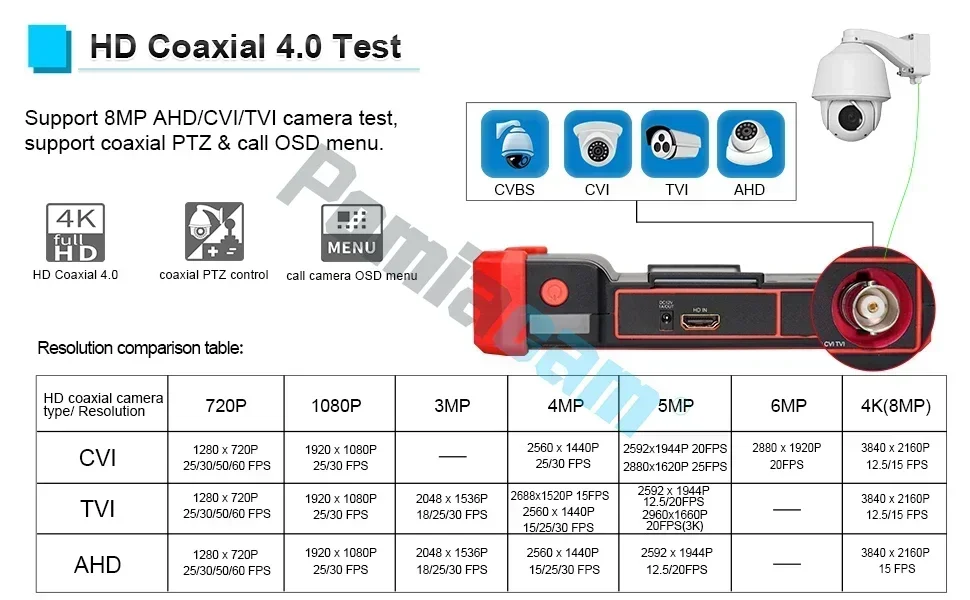

AHD CVI TVI camera test:

MAX 8MP TVI camera test, 3840 x 2160P 12.5/15 FPS,

8MP CVI camera test, 3840 x 2160P 12.5/15 FPS,

8MP AHD test, 3840 x 2160P 15FPS,
support UTC control and call OSD menu.

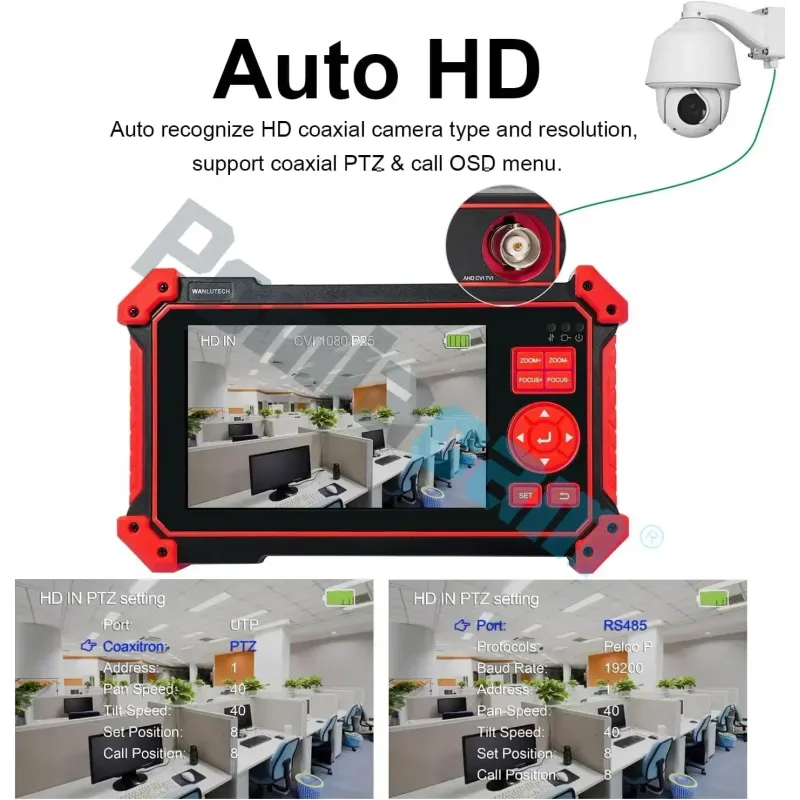

Auto HD app:Connect camera to “AHD/CVI/TVI” port, enter “HD” app. The tester can auto recognize AHD/CVI/TVI signal and display the image, as well as display the camera type and frame
HDMI in / VGA in:1 channel HDMI input, support 4K 30FPS, 1 channel VGA input, support 1920 x 1200P 60FPS
Power output: DC12V/1A, supply temporarily power for the camera.
Power input: DC5V/2A
UTP cable test:UTP cable continuity test, support to detect the faulty pin point of the RJ45 cable plug on the tester, support for measuring network cable length
Other Functions:The CCTV camera tester has LED lighting for working in the dark
Battery:Built-in 3.7V Li-ion battery, 4000mAh
Audio test:1 channel audio signal input, test the audio whether is normal




This model does not support to test IP network camera.
Connecting the camera to the “AHD/CVI/TVI” port and enter the “HD” application. The tester automatically recognizes the AHD/CVI/TVI signal and displays the image, and also shows the camera type and resolution.

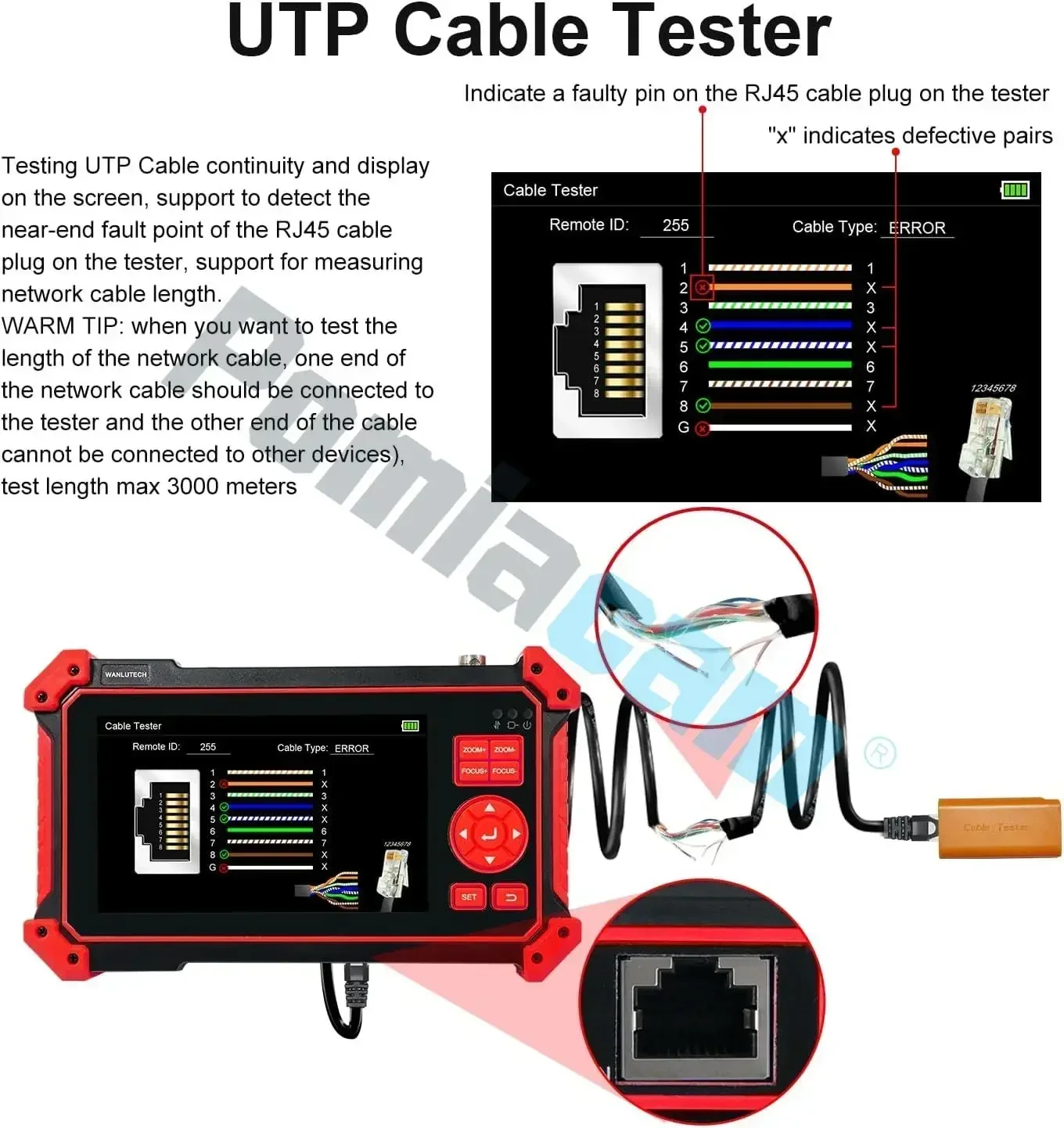

UTP Cable Test

UTP cable continuity test, support to detect the faulty pin of the RJ45 cable plug on the tester, support for measuring network cable length (When testing the length of the network cable, one end of the network cable should be connected to the tester and the other end of the cable cannot be connected to other devices), test length max 3000 meters

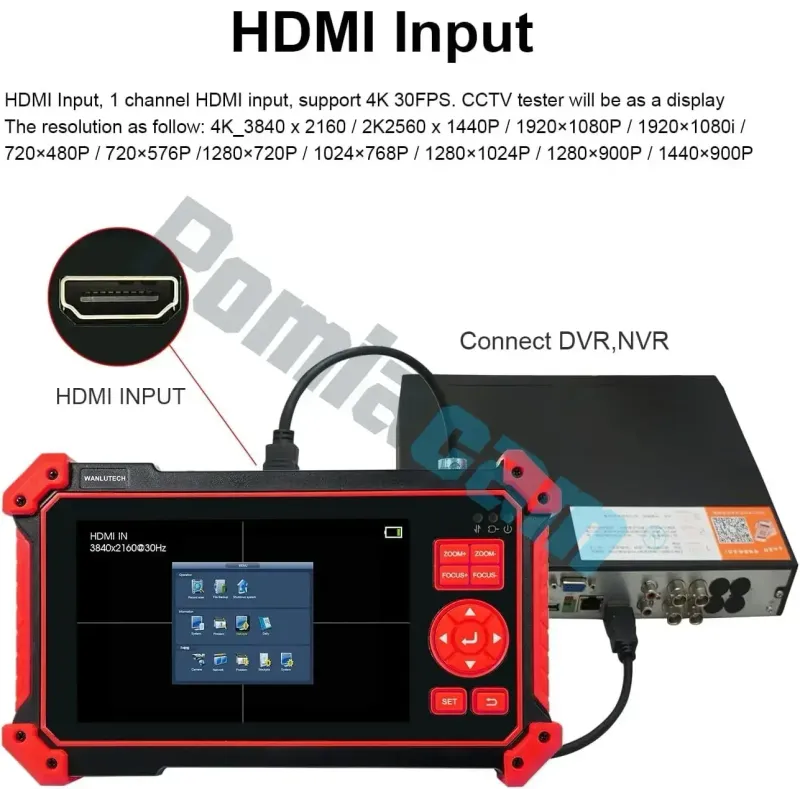

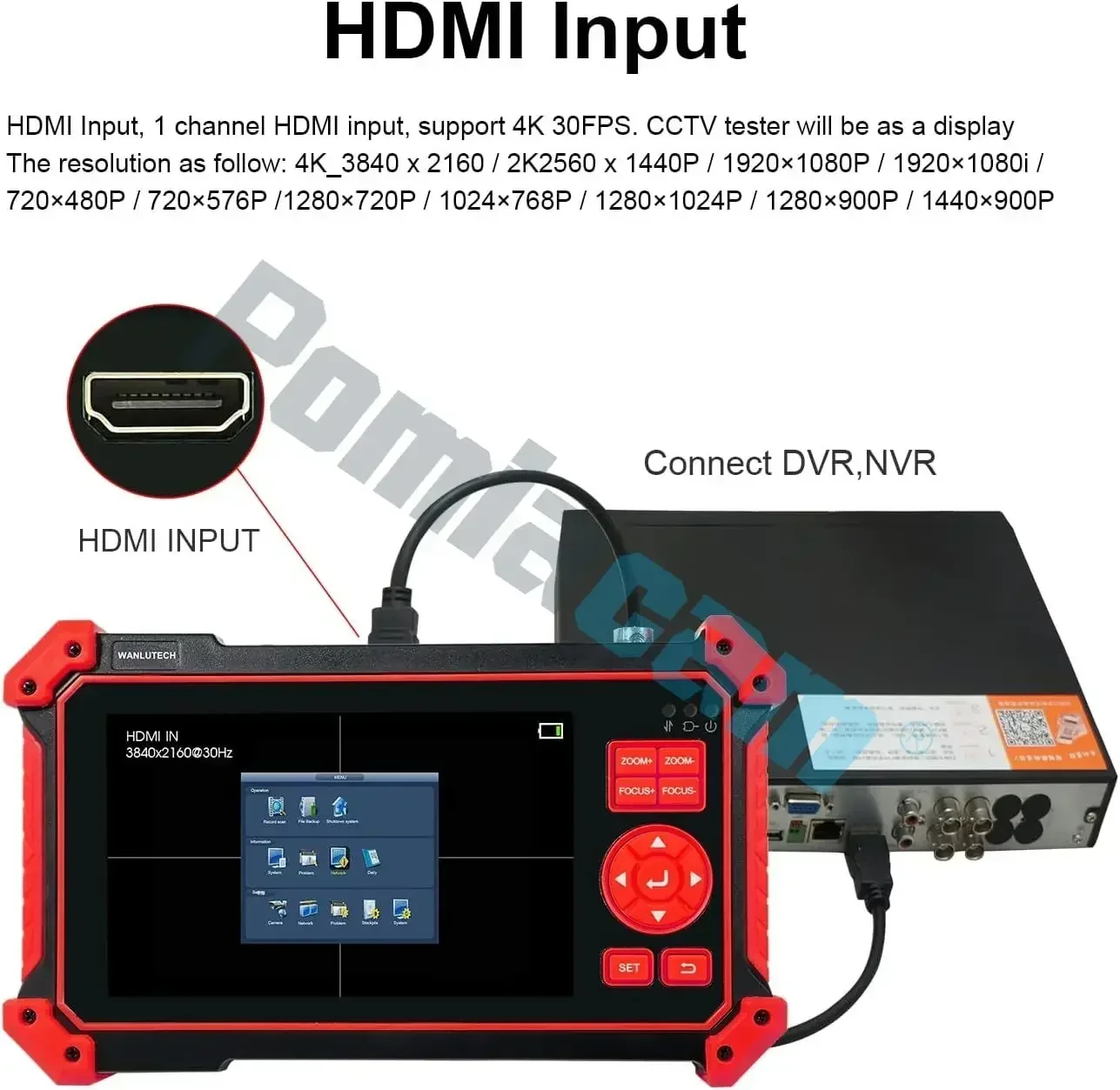

HDMI in

1 channel HDMI input, support 4K 30FPS. CCTV tester will be a display.

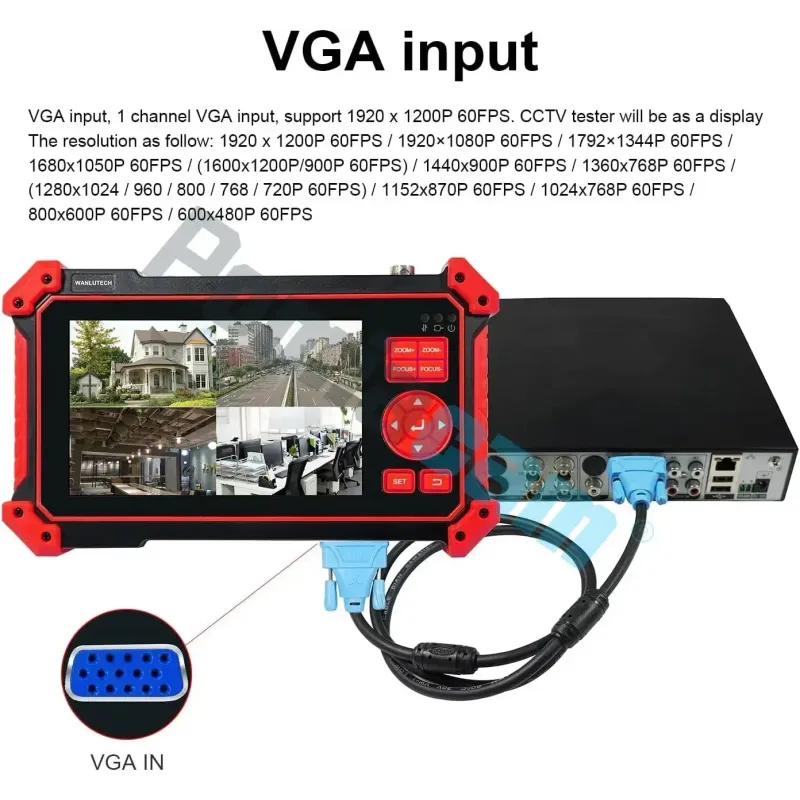

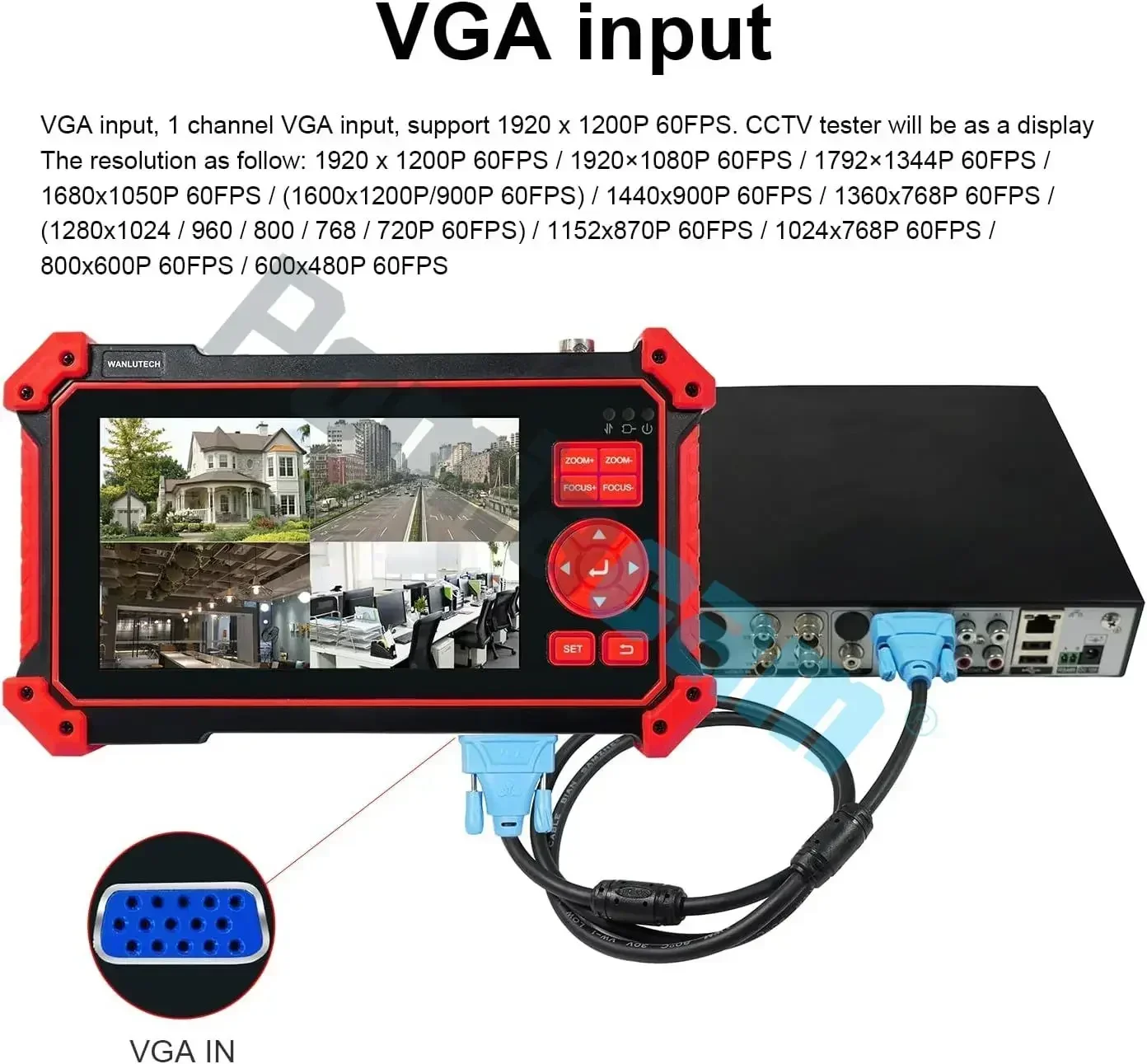

VGA in

1 channel VGA input, support 1920 x 1200P 60FPS. CCTV tester will be a display.

LED lighting

The CCTV camera tester has LED lighting for working in the dark.

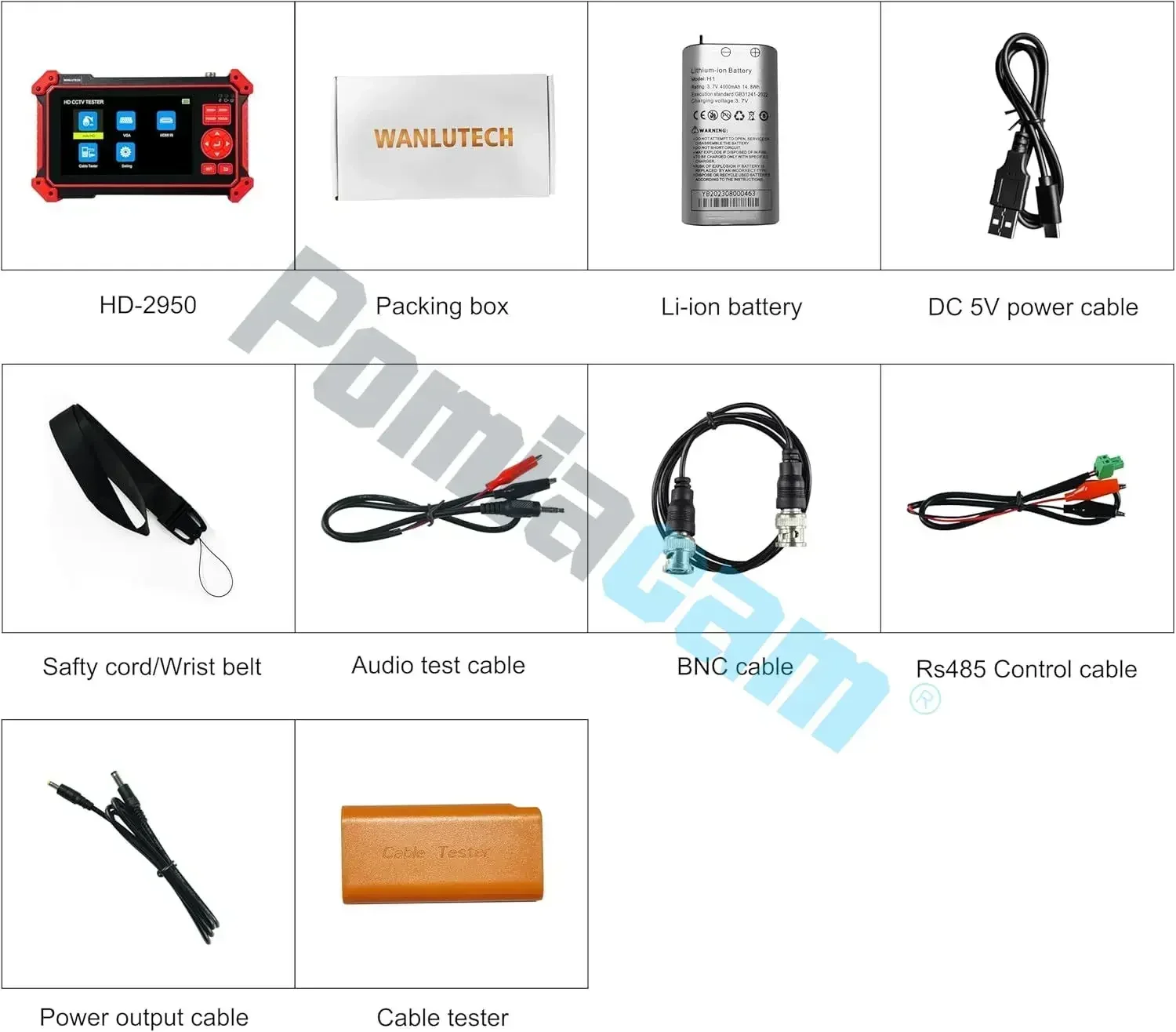

Packing List
1*CCTV tester HD-2950
1*Packing box
1*RS485 cable
1*BNC cable
1*Wrist belt
1*Audio test cable
1*DC12V Power output cable
1* 5V 2A USB charging cable
