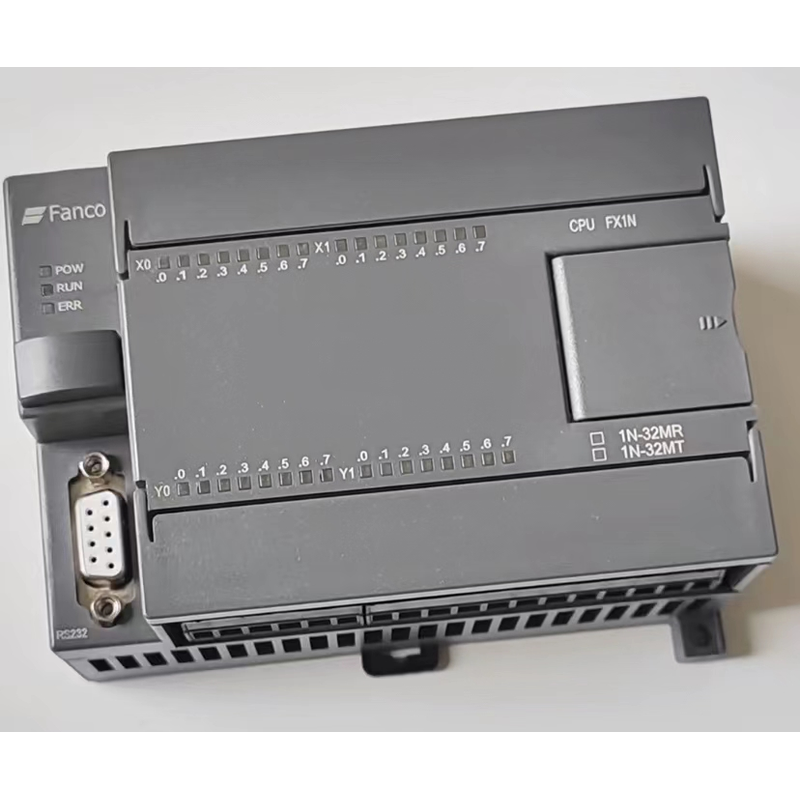

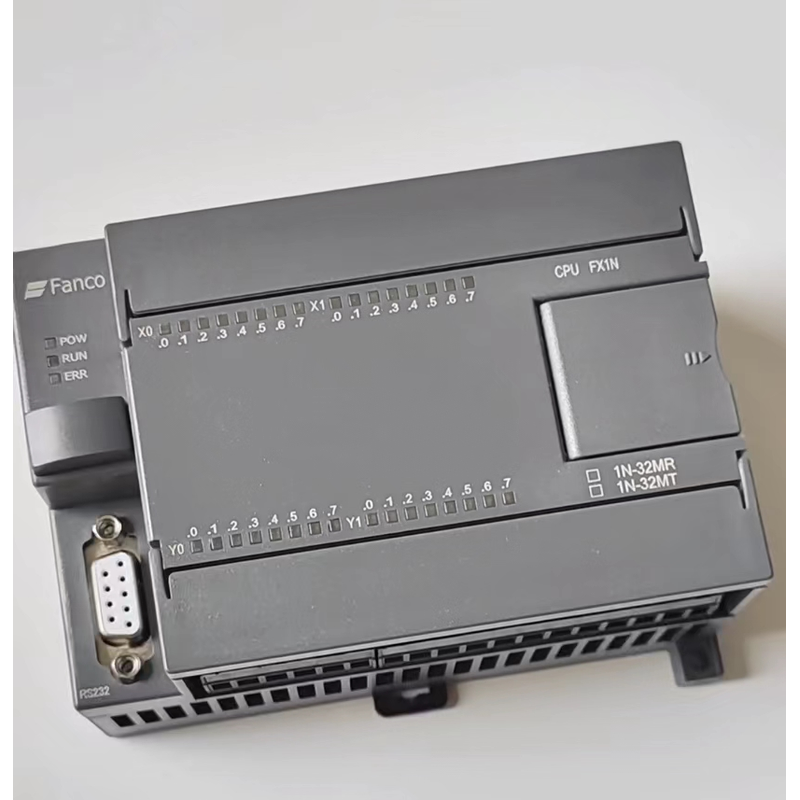

Programmable Logic Controllers Industrial Automation PLC Control Board HMI PLC FX1N 32MR 16 Point Input 16 Point Output DC24V

$73.99

Includes all taxes

Color
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Programmable Logic Controllers Industrial Automation PLC Control Board HMI PLC FX1N 32MR 16 Point Input 16 Point Output DC24V

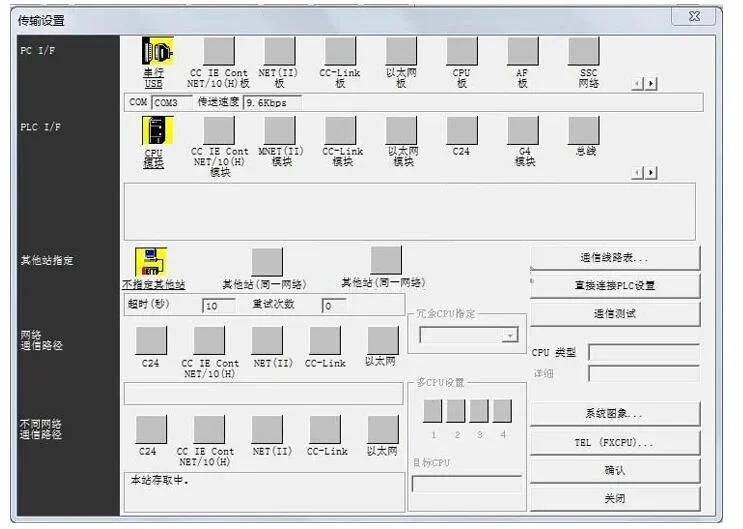

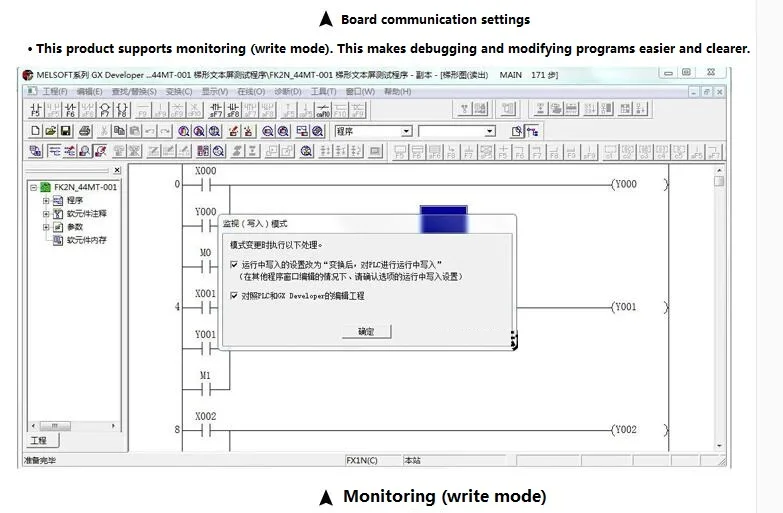

 This PLC transmission baud rate is 9600 as shown below

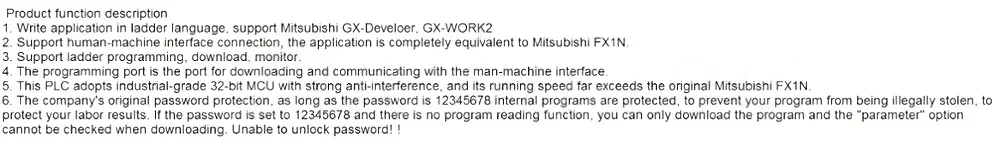

Product Resource Description

1. Board 16 points input 16 points output (16 relay outputs)
2. The board is powered by DC. Do not input AC or 220V voltage.
3. The internal resources of the board are allocated as follows:

project

performance

Operation control method

Stored program repeatedly scanning mode

Input and output control mode

Batch mode (when executing END instruction), input and output refresh command, pulse capture function

Programming language

Ladder diagram, SFC stepping instructions

Ladder programming software

GX Developer, GX Works2

Program memory

8K step EEPROM



Type of instruction

Direct instruction

27

Step ladder instruction

2

Basic application instruction

70

Instructions speed

Basic instructions

0.1μS-0.55μS instruction



Application instructions

0.8μS-10μS instruction

input Output

Input relay X

X0-X127,128 points

Output relay Y

Y0-Y127,128 poinst

Auxiliary relay M

General use

M0-M1523,1524 points

Special use

M8000-M1535,1152 points( after M500 Power down save)

State S

S10-S999,1000 points



Timer T

100MS

T0-199,200 points

10MS

T200-T245,46 points

1MS

T246-T249,4 points

100MS accumulation

T250-T255,6 points

Counter C

Counter 16 bits

C0-C199,200point(after C100 Power down save)

Counter 32 bits

C200-C255,56 points

Data register

General use

D0-D500(after D200 Power down save),500point

Special use

D8000-D8255,255 points

Indexing

V7-V0,Z7-Z0,16 points

Nested pointer

P0-P127,128 points



constant

K 16 bit

-32768-32767

K 32 bit

-2 147 483 648-2 147 483 647

H 16 bit

0-FFFF

H 32 bit

0-FFFFFFFF

Support instruction set

27 basic instructions

Mnemonic, name

function

Available Soft Components

[LD] take

Operation start"a"contact

XYMSTC

[LD] take reverse

Operation start"b"contact

XYMSTC

[LDP] take pulse rising edge

The rising edge detects the start of the operation

XYMSTC

[LDF] take the pulse falling edge

The falling edge detects the start of the operation

XYMSTC

[AND] and

Series"a"contact

XYMSTC

[ANI] and reversal

Series"b"contact

XYMSTC

[ANDP] with pulse rising edge

The rising edge detects"a"series connection

XYMSTC

[ANDF] with pulse falling edge

Falling edge detects serial connection

XYMSTC

[OR] or

Parallel"a"contact

XYMSTC

[ORI] or inversion

Parallel"b"contact

XYMSTC

[ORP] or pulse rising edge

The rising edge detects a parallel connection

XYMSTC

[OUT]output

Coil drive command

YMSTC

[SET] set

Coil hold command

YMS

[RST]Reset

Coil reset command

YMSTCD

[PLS] rising edge pulse

Rising edge detection command

YM

[PLF] rising edge pulse

Falling edge detection instruction

YM

[MC] Master

Connecting coil of common series point


[MCR] master reset

Clearing coil of common series point


[MPS] onto the stack

Operational storage


[MRD] read stack

Storage readout


[MPP] popping

Save read and reset



[INV]Reverse

Reverse of operation result


[NOP] empty operation

No action


[END] end

End of sequence program


Application instruction

classification

FNC NO.

Instruction mnemonic

Instruction name



   Procedure flow chart

00

CJ

Conditional jump

01

CALL

Subroutine call

02

SRET

Subroutine return

06

FEND

End of main program

07

WDT

Watchdog timer

08

FOR

Repeat range begins

09

NEXT

End of repeat range


Transfer and comparison

10

CMP

Comparison

11

ZCP

Regional comparison

12

MOV

Transfer

15

BMOV

Batch transfer

18

BCD

BCD exchange

19

BIN

BIN exchange


Four arithmetic operations

20

ADD

BIN addition

21

SUB

BIN subtraction

22

MUL

BIN multiplication

23

DIV

BIN division

24

INC

BIN increment

25

DEC

BIN decrement

26

WAND

Logic and

27

WOR

Logical or

28

WXOR

Logical XOR



Rotation displacement

34

SFTR

Right shift

35

SFTL

Left  shift

38

SFWR

Shift write

39

SFRD

Shift write out



Bit processing

40

ZRST

Reset all

41

DECO

decoding

42

ENCO

coding




  • The board is supplied by 24V DC. Do not input AC or 220V.

  • The board uses serial port download program.

  • PLC industrial control board FX1N 32MR 16 point input 16 point output DC 24V plc programmable logic controller
