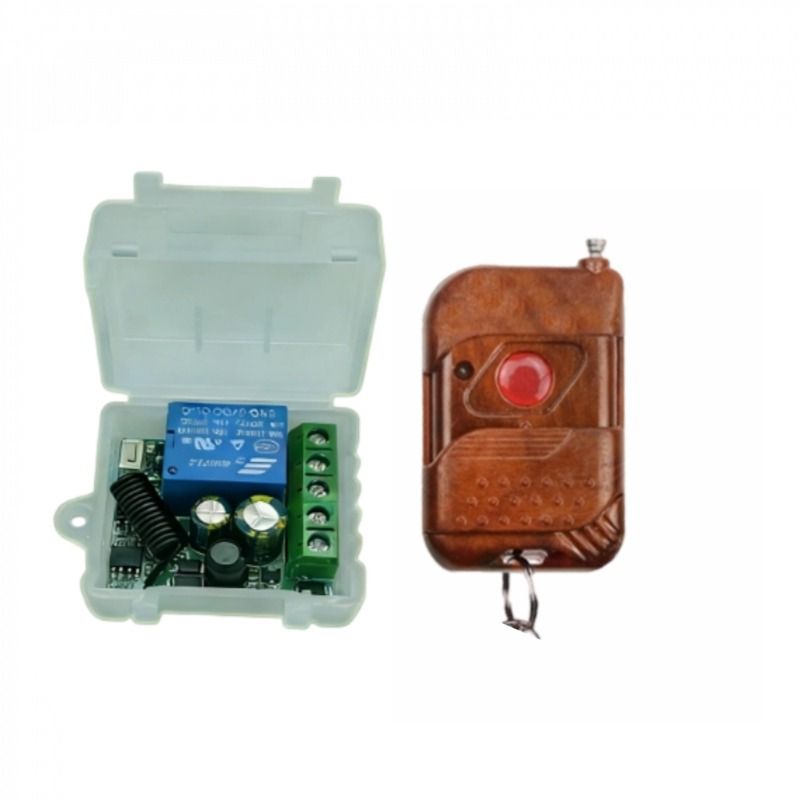

RF 433MHz Remote Wireless Switch Garage Door Command AC220V1-Channel 10A Relay Receiver 1/2-Channel Transmitter

$11.62

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Welcome to our Remote Control Switch Store!


We specialize in high-performance wireless remote control switches for home, office and industrial scenarios—including smart light switches, plug-in remote controls and multi-channel control kits. All products feature easy installation, stable signal transmission and long service life, with strict quality checks before shipment.


Enjoy fast delivery to worldwide destinations, competitive prices and 24/7 dedicated customer support. Whether you need a simple on-off remote or a multi-device control solution, we’ve got you covered!


Follow us for exclusive discounts and the latest product launches!


Technical Data:

Input Power: DC 12V or DC 24V
Standby Current: <5MA
RF Frequency: 433Mhz
RF working mode: superheterodyne
Receive sensitivity: >97dbm
Transmitting distance: 20-100m ( open space)
Decoding mode: MCU software decoding
Remote storage: 25pcs
Support remote type: Learning code, Fixed code ,
Working mode: Momentary, Toggle, Latching Time delay (5s ,10s ,15s )
Wiring type: fixed terminal
Output Terminal : NO , NC , COM

Specifications Of The Remote Control:

Operating frequency: 433.92MHz
Material: PVC.
Button: 1/2 buttons
Operating voltage: 3V ;
Operating Current: 12mA
Transmitting power: 10mw
Modulation mode: ASK (AM).
Encoding type: Learning.
Transfers distance: 80m

Controller and Remote Control Pairing Operation Method


Momentary (M) Function Description

Press and hold the remote control button to activate; release to stop.

Pairing Method:

Press the learning button on the control board once. The LED indicator will blink once, then light up steadily. Press the corresponding remote control button to be paired. The control board LED will blink three times continuously to indicate successful pairing.



Toggle (T) Function Description

The receiver’s switch is controlled by the same remote control button: press once to turn on, press again to turn off, and so on.

Pairing Method:

Press the learning button on the control board twice consecutively. The LED indicator will blink twice, then light up steadily. Press the corresponding remote control button to be paired. The control board LED will blink three times continuously to indicate successful pairing.



Interlock (L) Function Description

Press remote control button A to turn on and button B to turn off, or vice versa. If the remote control has multiple buttons, the paired button will turn on, while all other buttons will turn off.

Pairing Method:

Press the learning button on the control board three times consecutively. The LED indicator will blink three times, then light up steadily. Press the corresponding remote control button to be paired. The control board LED will blink three times continuously to indicate successful pairing.



5-Second Delay Learning Method

Pairing Method:

Press the learning button on the control board four times consecutively. The LED indicator will blink four times, then light up steadily. Press the corresponding remote control button to be paired. The control board LED will blink three times continuously to indicate successful pairing.



10-Second Delay Learning Method

Pairing Method:

Press the learning button on the control board five times consecutively. The LED indicator will blink five times, then light up steadily. Press the corresponding remote control button to be paired. The control board LED will blink three times continuously to indicate successful pairing.



15-Second Delay Learning Method

Pairing Method:

Press the learning button on the control board six times consecutively. The LED indicator will blink six times, then light up steadily. Press the corresponding remote control button to be paired. The control board LED will blink three times continuously to indicate successful pairing.



20-Second Delay Learning Method

Pairing Method:

Press the learning button on the control board seven times consecutively. The LED indicator will blink seven times, then light up steadily. Press the corresponding remote control button to be paired. The control board LED will blink three times continuously to indicate successful pairing.



Note: To switch modes, please clear previously paired data first.


Fields of Application


Motor and Electric Machinery Field

Electric gates, water pumps, ventilation and cooling systems, etc.



Automotive Modification Industry

Lighting, audio systems, exhaust sound enhancement, etc.



Household Application Scenarios

Lighting fixtures, LED decorative lights, routers, etc.



Access Control and Security Applications

Residential access control systems, electronic locks, security surveillance, etc.

Package Includes:
1x Single Channel Controller
1x Remote Control
