Description

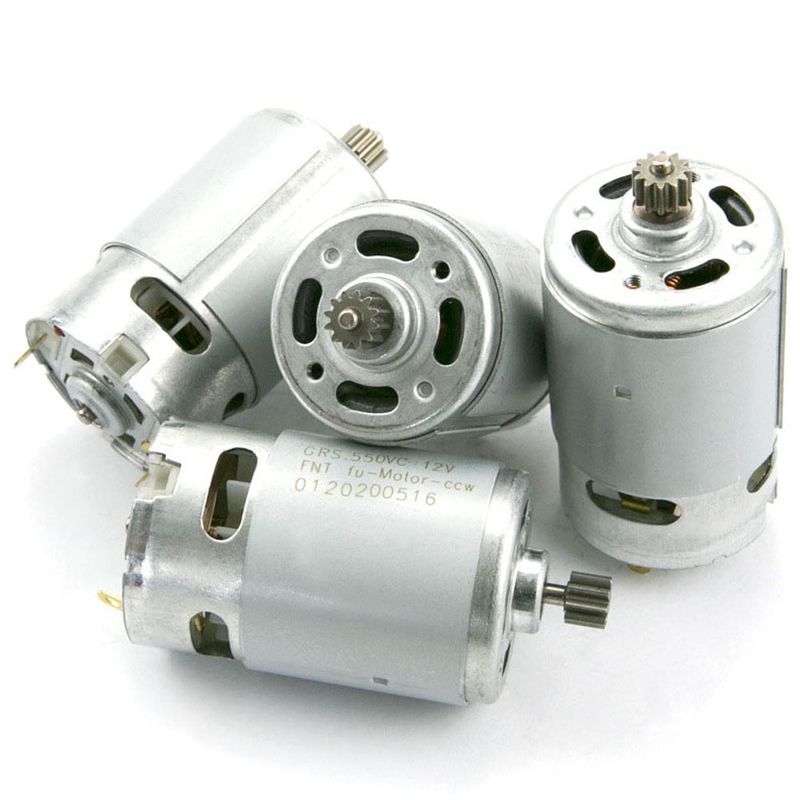

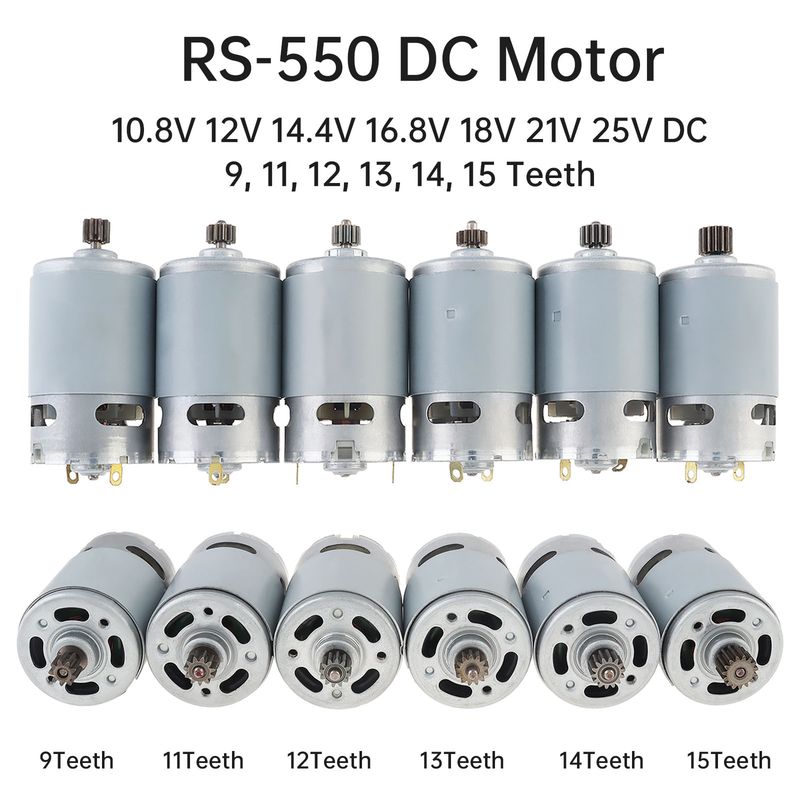

RS550 DC Motors 10.8V/12V/14.4V/16.8V/18V/21V/25V Drill Motor with 9/11/12/13/14/15 Teeth High Torque Gear Box Electric Motor Screwdriver
Features:

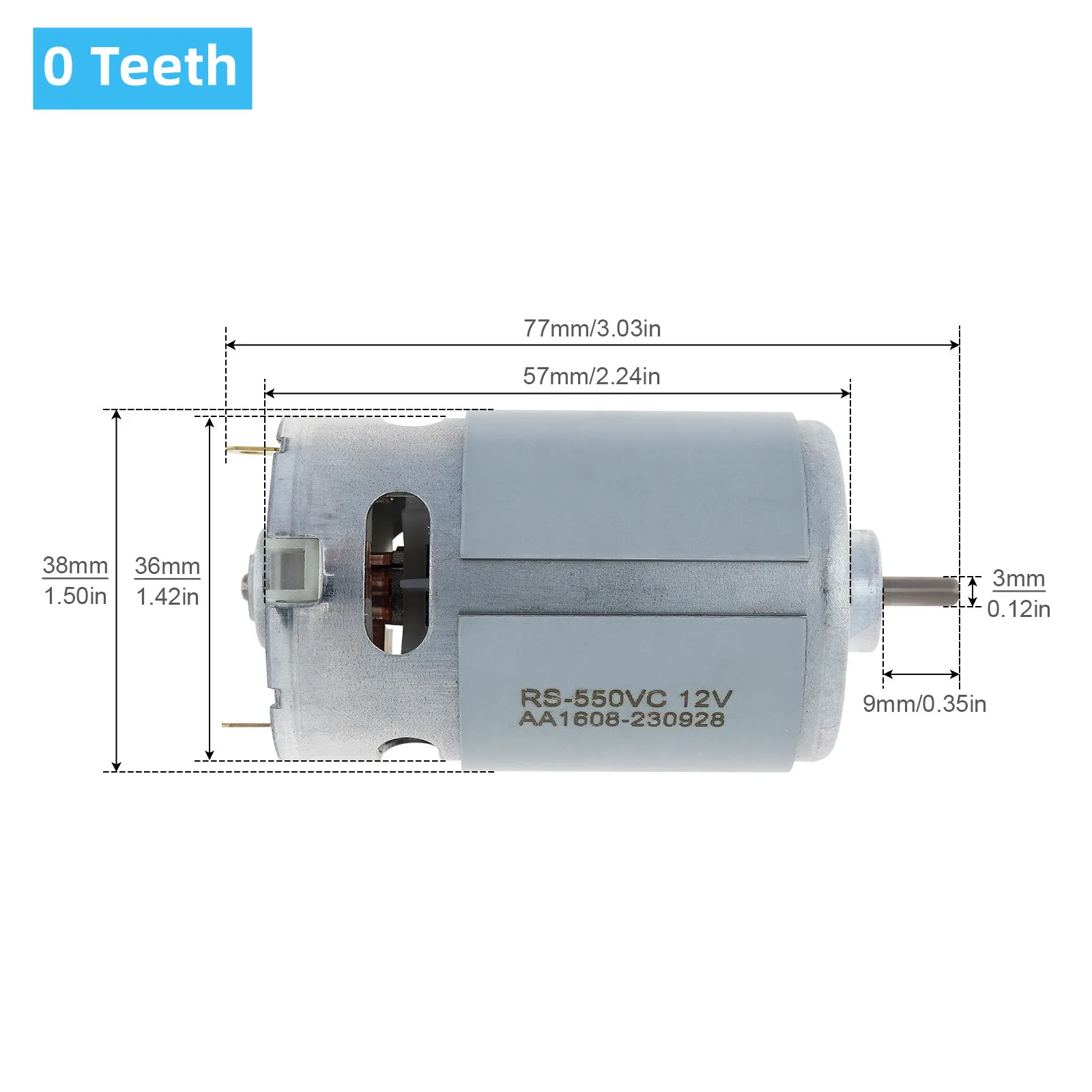

- RS550 with 0 gear, 9-15 gear teeth DC motor, are specially designed for replacement rechargeable lithium battery cordless electric drill / screwdriver.

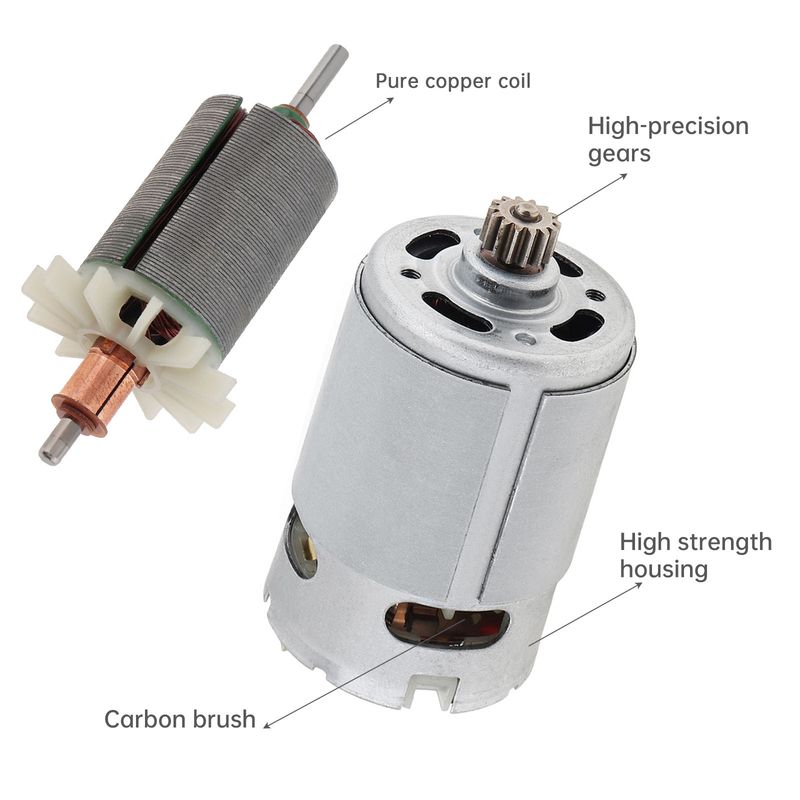

- Stainless steel shell material, Pure copper coil, low current, high efficiency, strong output power.
- Low noise, high speed and high torque, good heat dissipation, stable performance and long life.
- Easy to use, the front can be fixed with 2 M3 screws.
- Widely used in cordless drill, table drill, electric drill and electric screwdriver etc.
Detailed Description:
Motor Model: RS550
Material: Metal

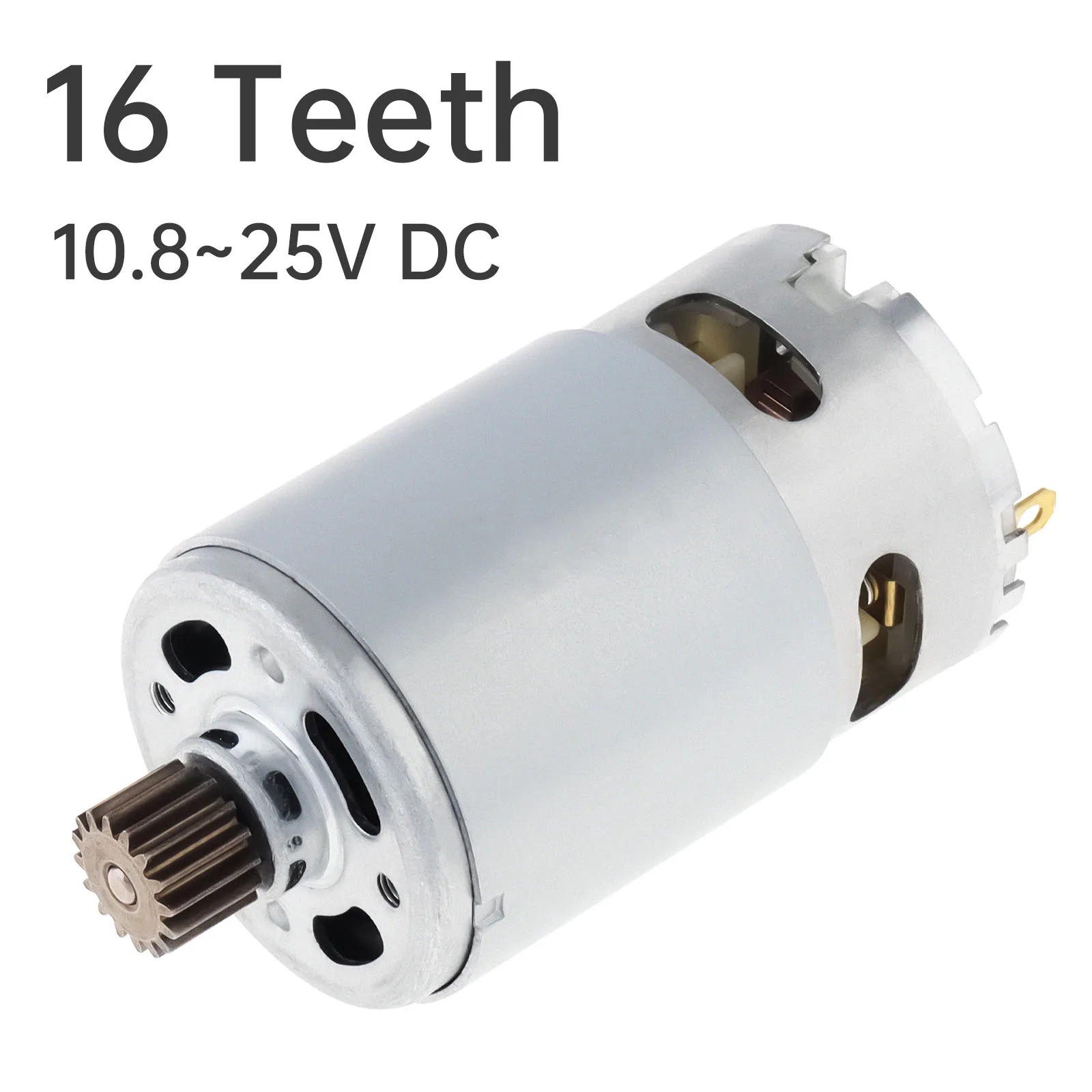

Number of gears: 9 teeth, 11 teeth, 12 teeth, 13 teeth, 14 teeth, 15 teeth,16 teeth
Voltage: 10.8V / 12V / 14.4V / 16.8V / 18V / 21V / 25V
No load Speed: 21500-29000RPM
Rated Power: 80W

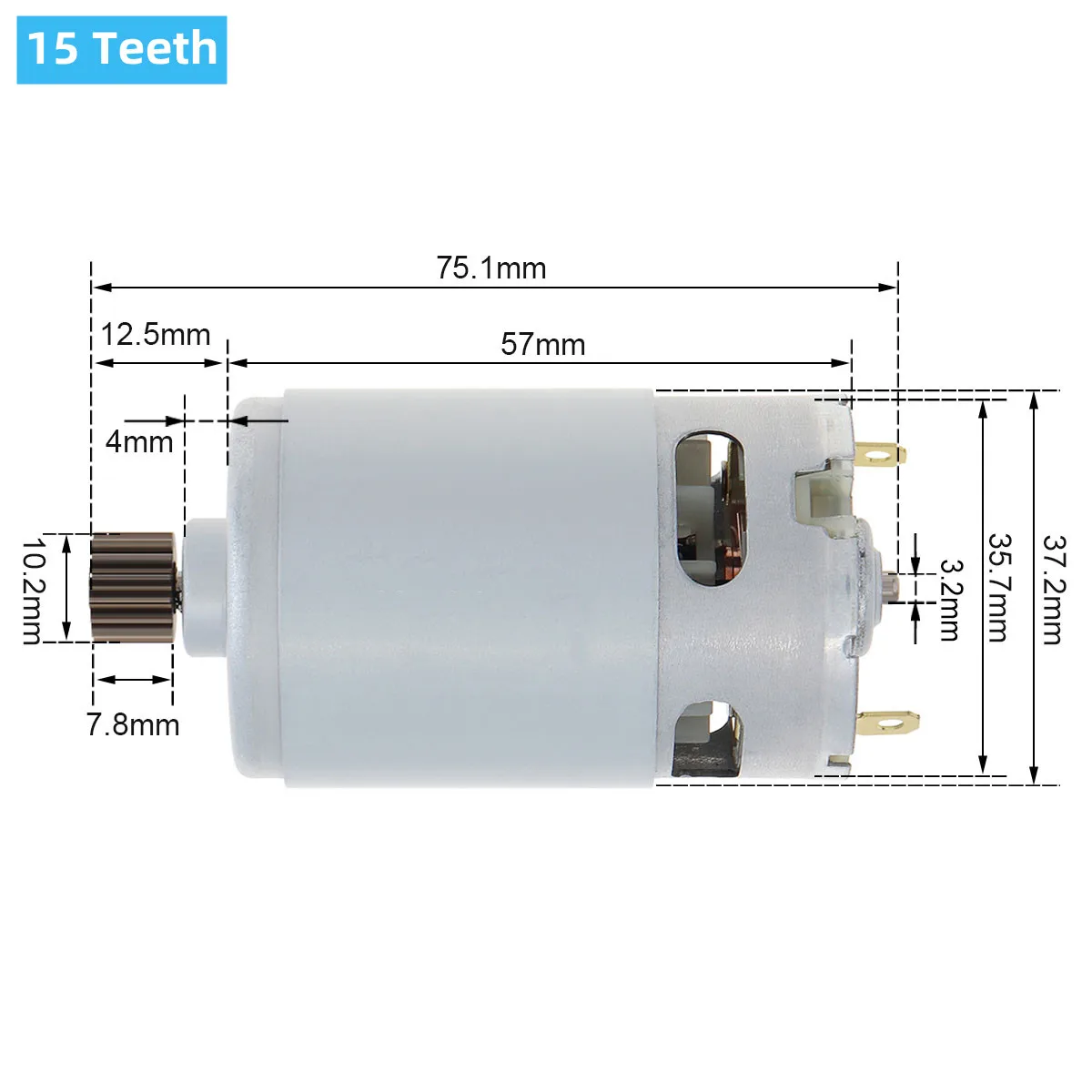

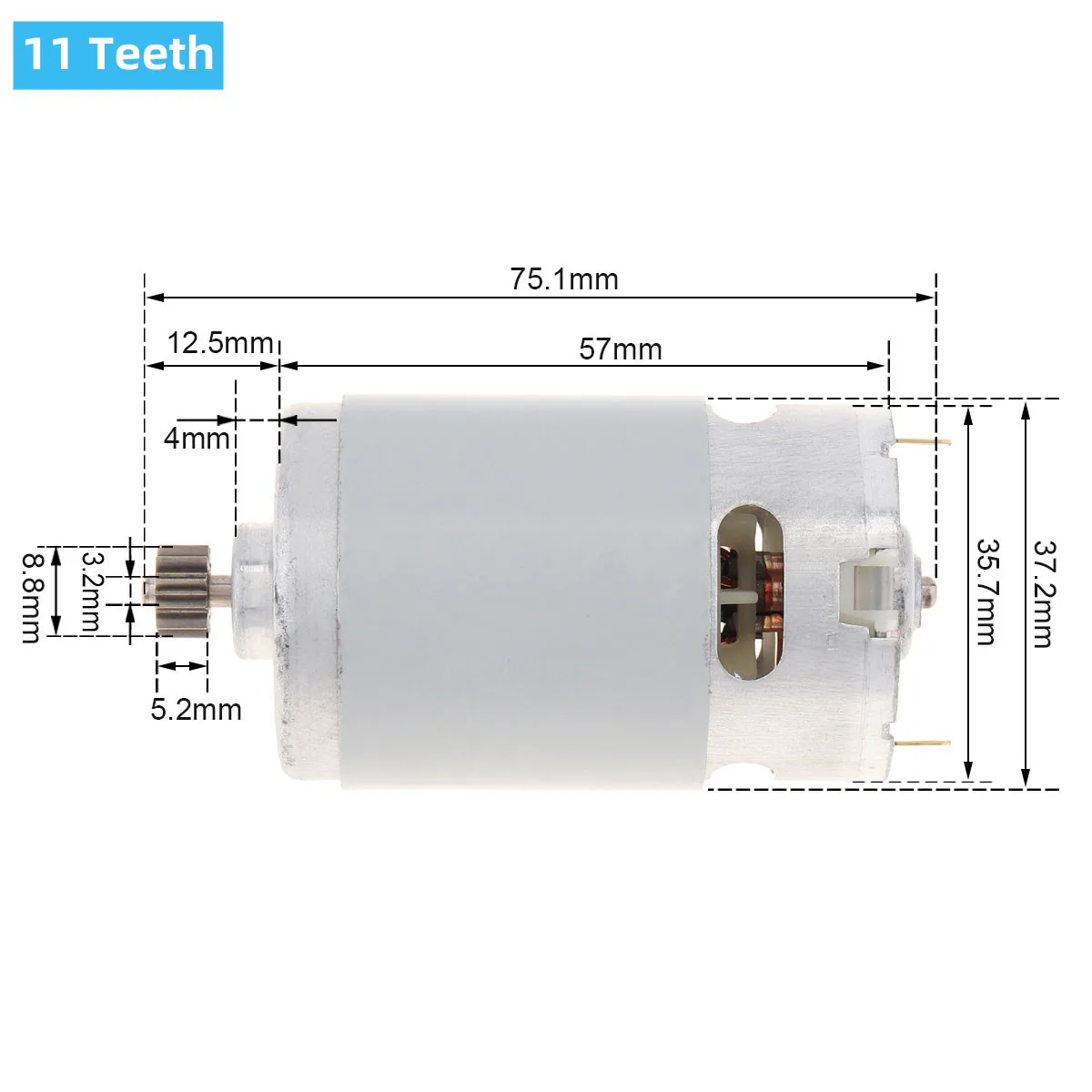

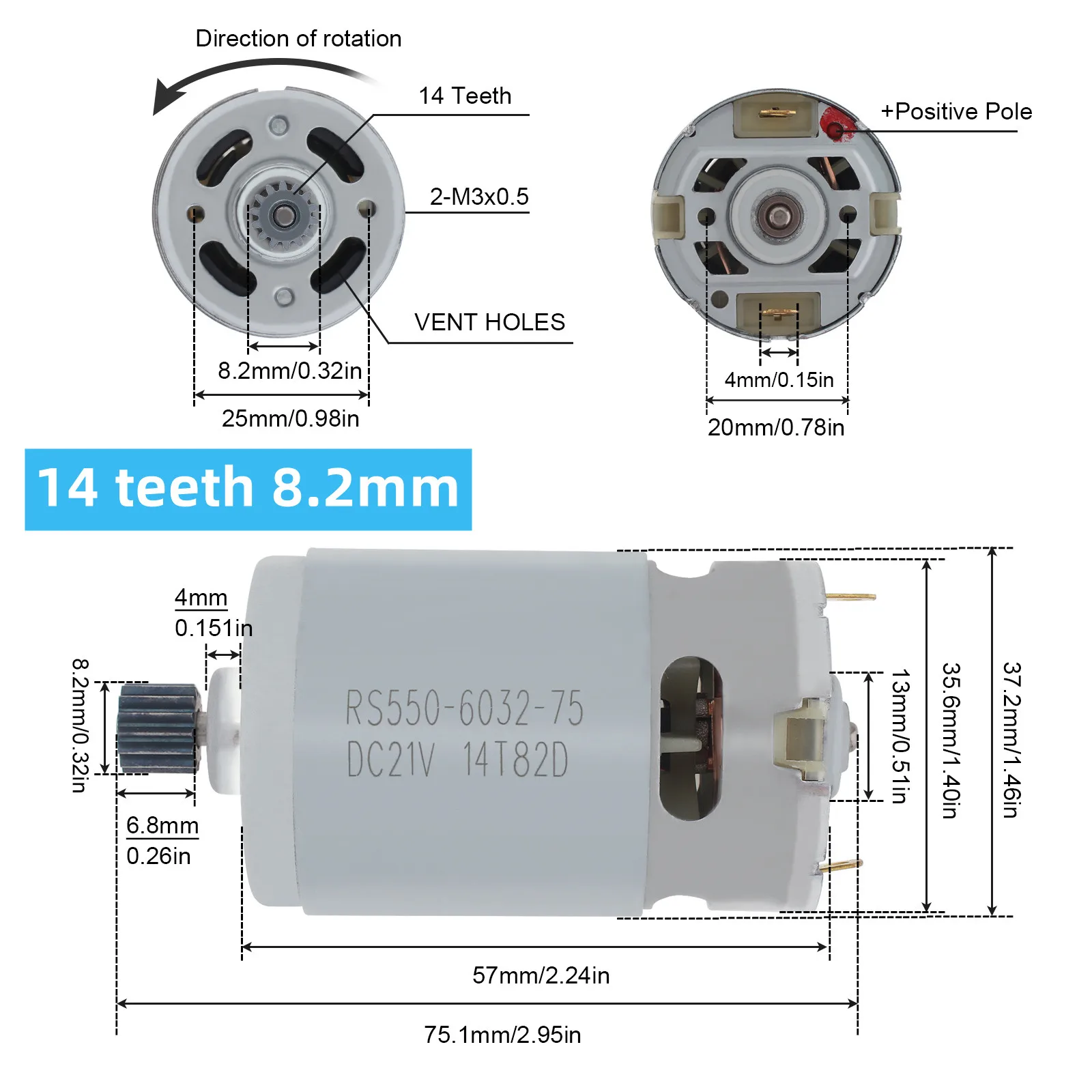

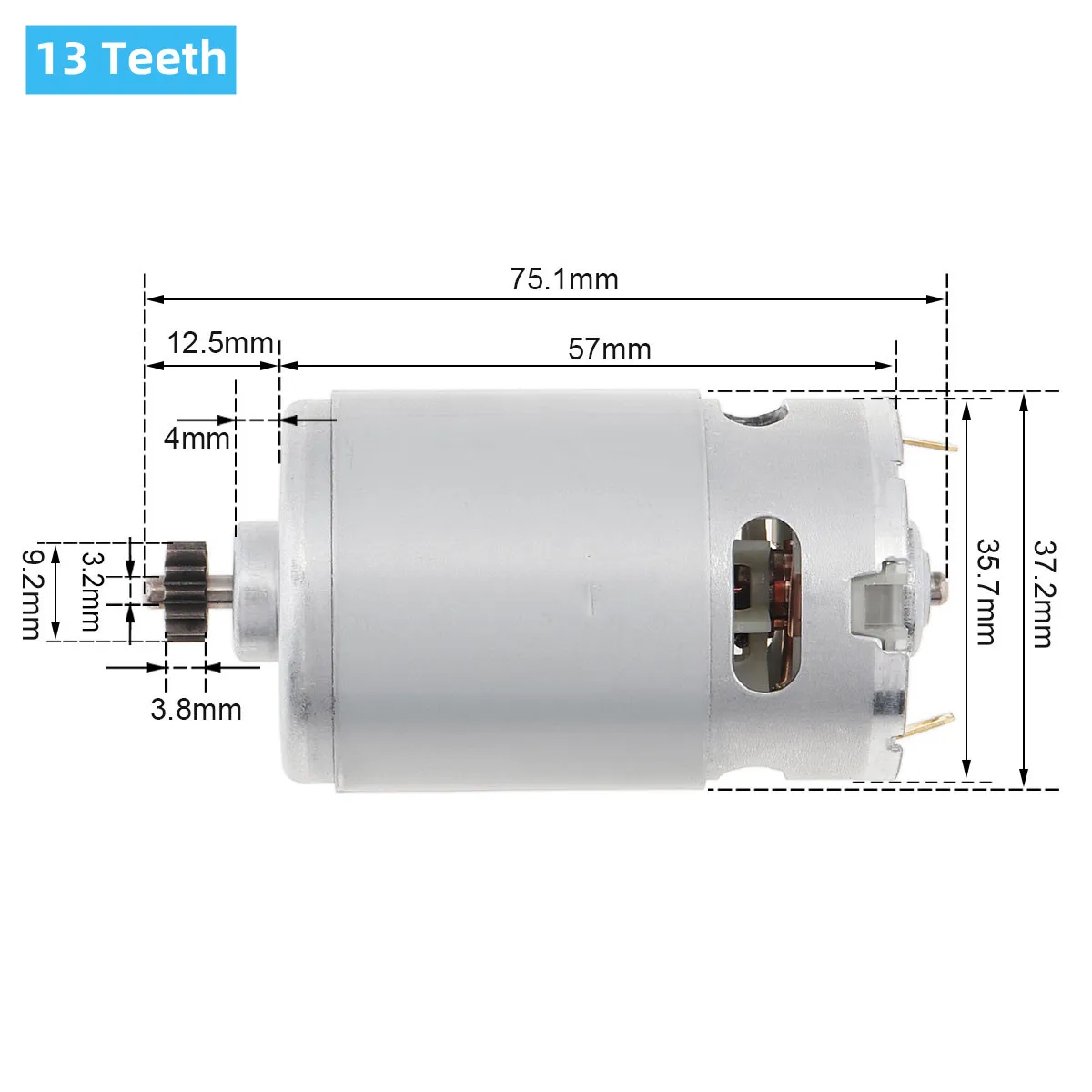

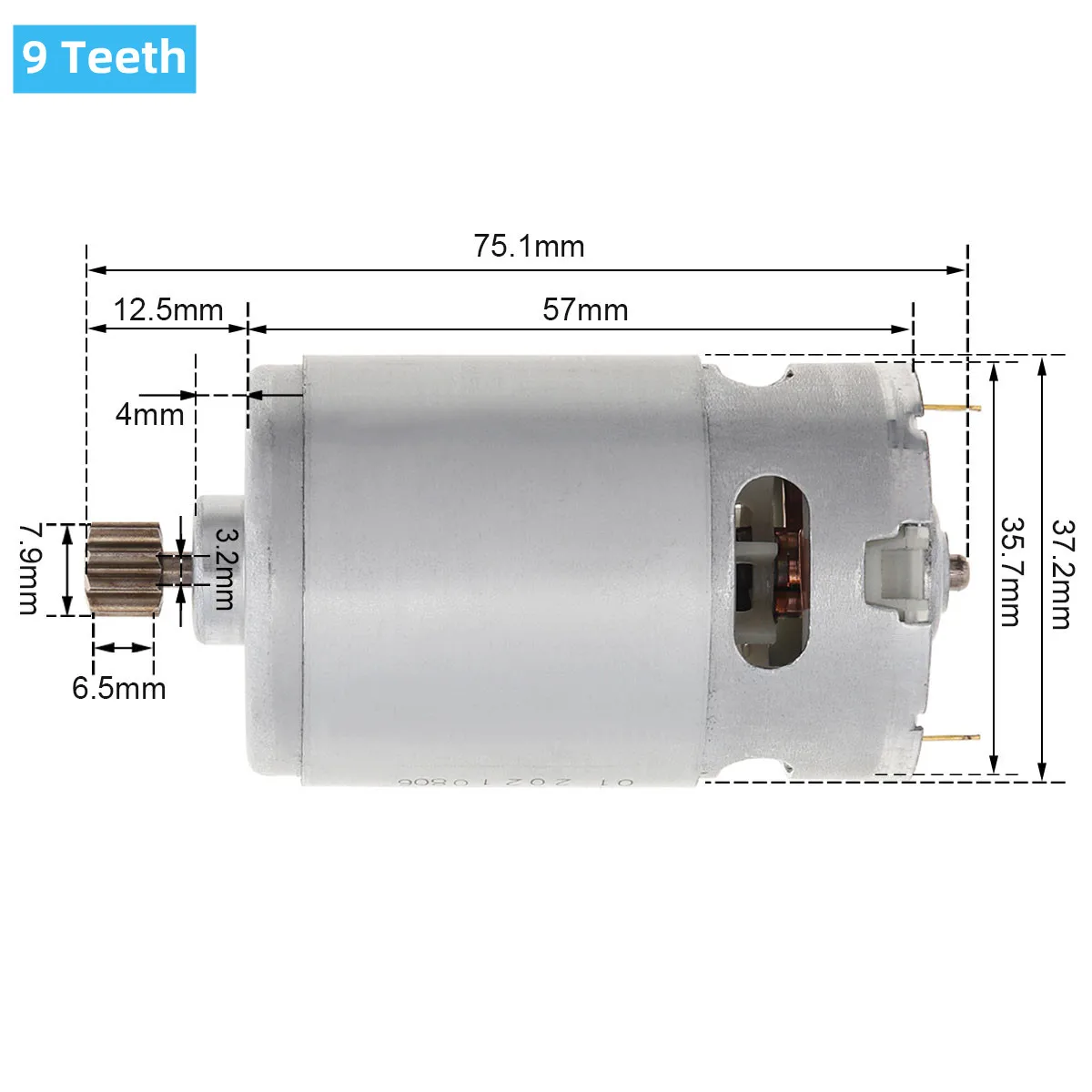

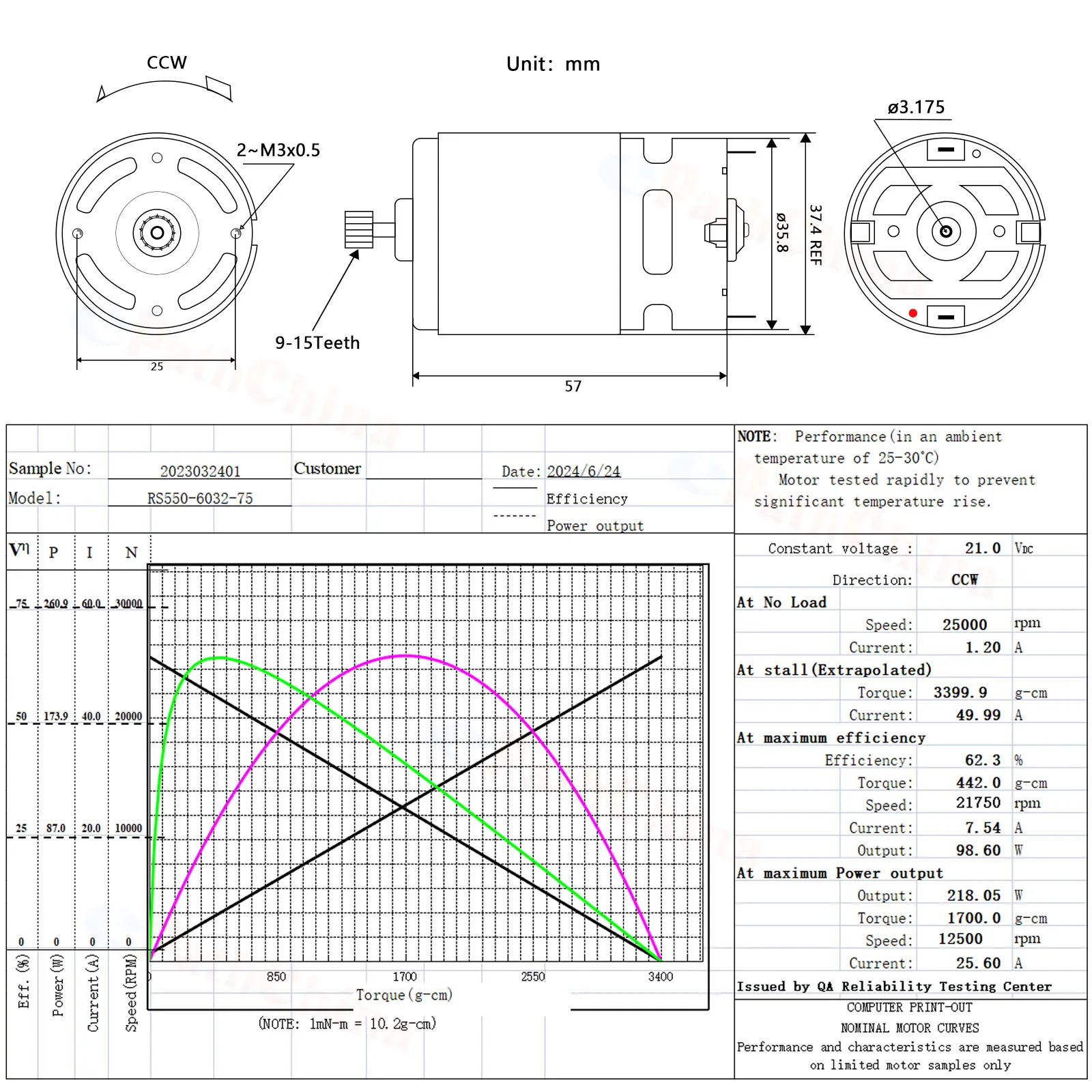

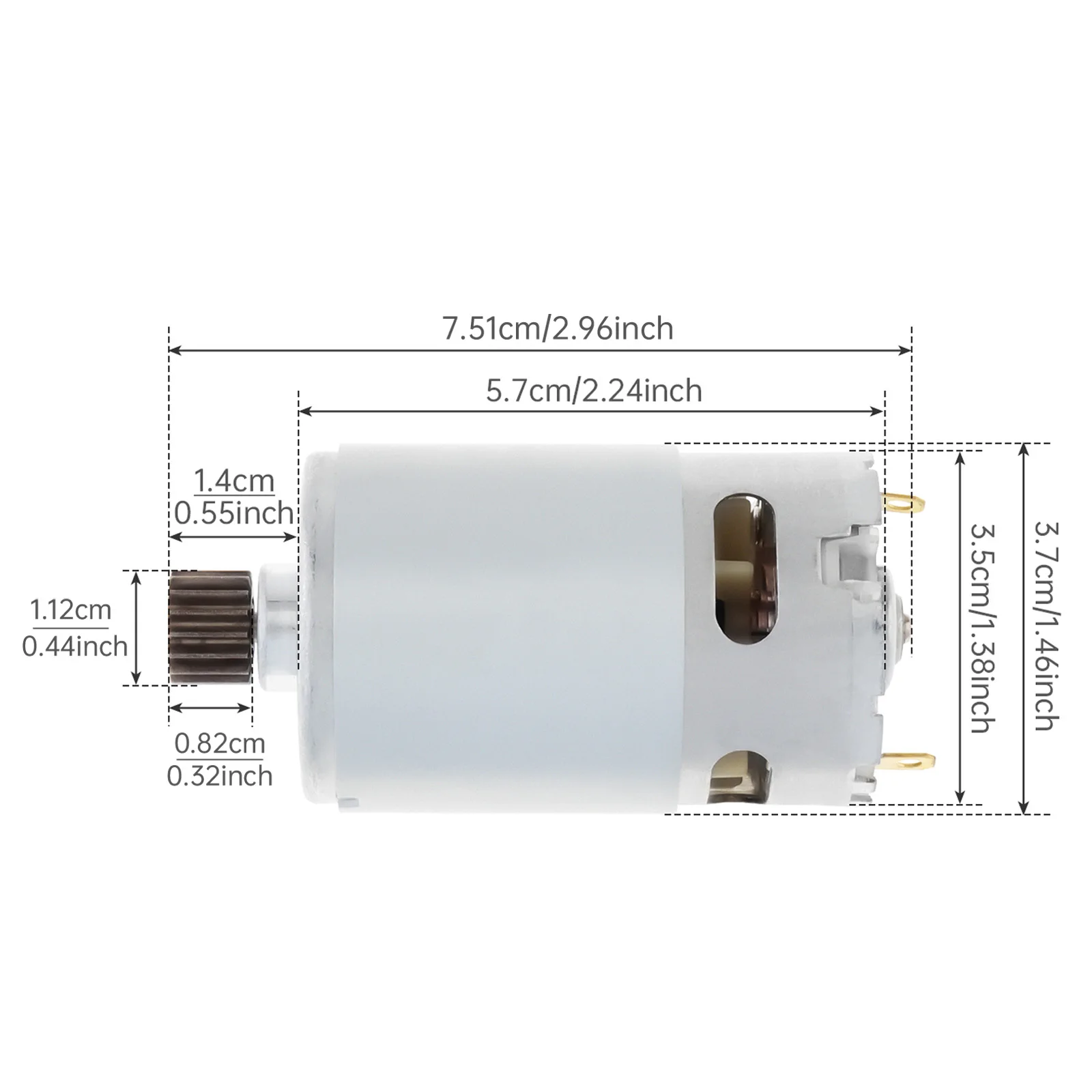

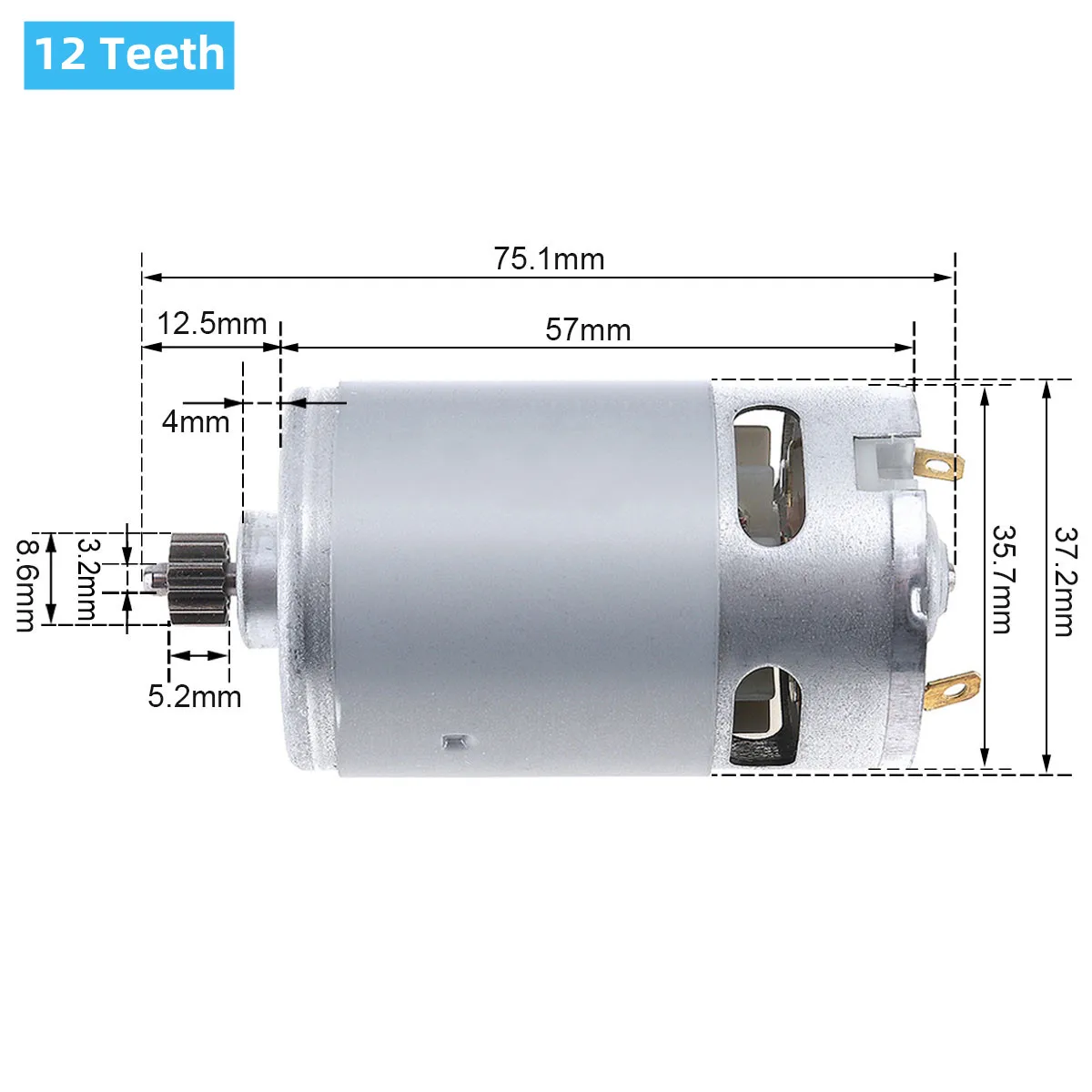

Size:
Motor length: 75.1mm
Motor diameter: 37.2mm
Motor shaft length: 12mm
Motor shaft diameter: 3.2mm
Motor gear diameter: 7.9mm (9 Teeth), 8.8mm(11 Teeth),8.6mm(12Teeth),9.2mm(13 Teeth), 8.2mm(14 Teeth)9.5mm(14 Teeth),10.4mm(15 Teeth) ,11.2mm(16 Teeth)
Motor gear thickness: 6.5mm (9 Teeth), 5.2mm (11 Teeth),5.2mm(12Teeth), 3.8mm (13 Teeth), 6.8(14 Teeth),5.8mm(14 Teeth),8.0mm(15 Teeth) Motor installation hole distance: 25mm
How to choose a motor for a rechargeable electric drill / screwdriver:
1. Confirm your motor model is RS550 or motor diameter(about 37.2mm), and motor body length(about 57mm), and total length(about 75.1mm).
2. Confirm the voltage of your motor (DC10.8V-25V) and choose a motor with the same or similar voltage.
3. Confirm the number of teeth of your motor (9-15 teeth), make sure to choose the motor with the same number of teeth, and verify that the outer diameter and thickness of the gears are the same or similar.
Note:

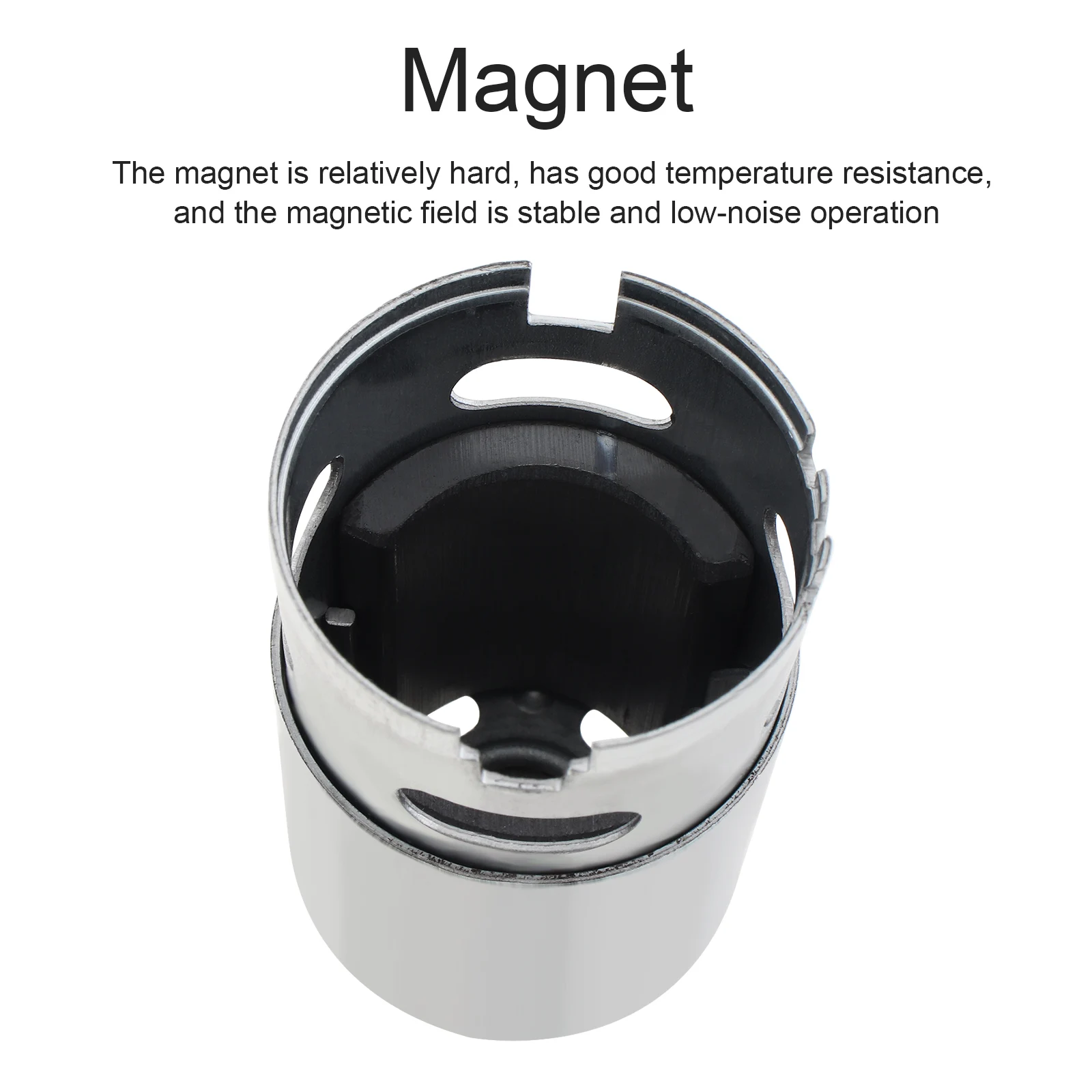

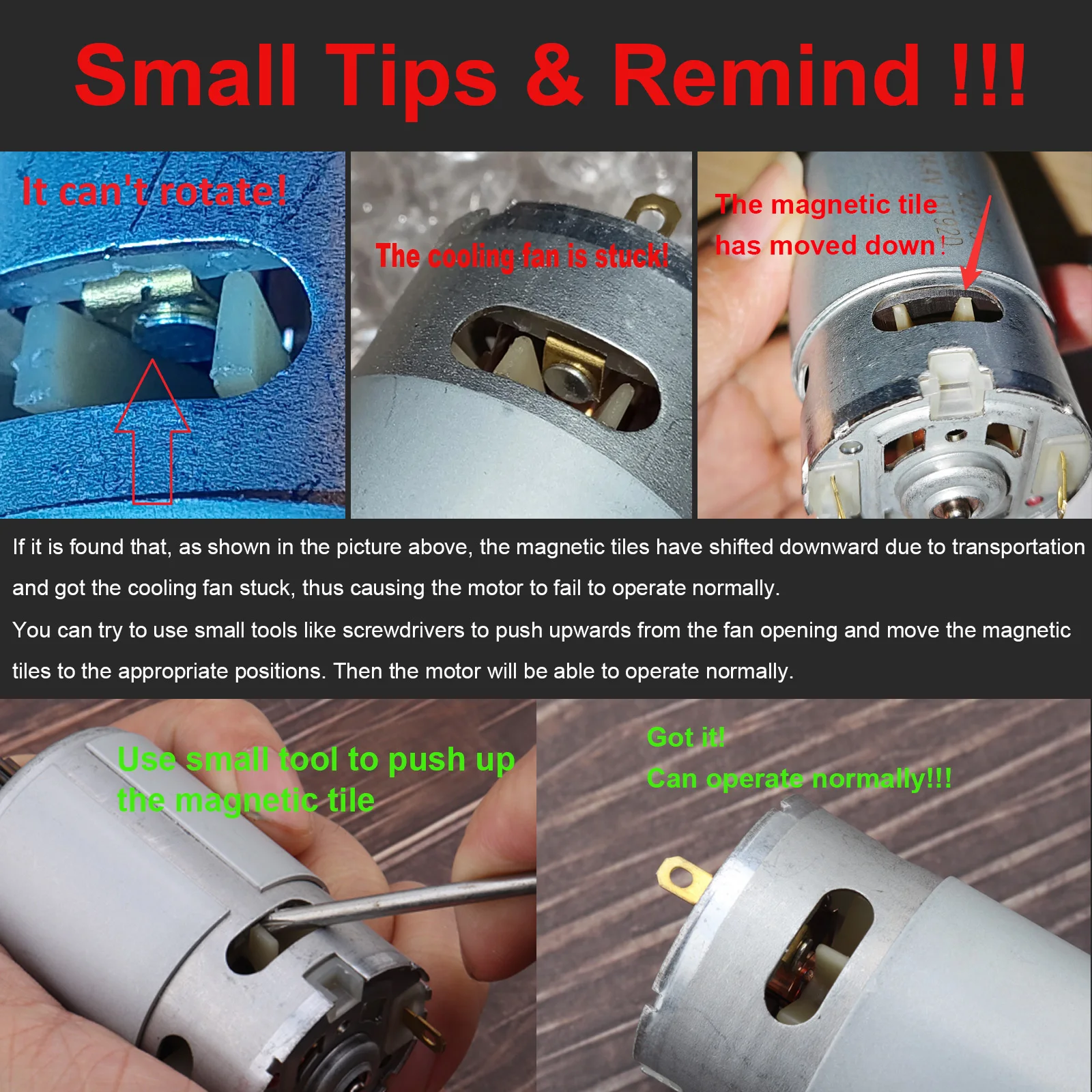

If it is found that the motor has moved down and the cooling fan is stuck like in the picture due to transportation, and the magnetic
tile inside is not broken, a screwdriver can be used to push it up from the fan mouth to the appropriate position, and the motor can operate normally.
Part of applicable lithium electric drill models:
10.8V: GSR 10.8-2-LI, GSB 10.8-2-LI, GSR 108-2-LI, GSB 108-2-LI
12V: GSR 12-2-LI, GSB 12-2-LI, GSR 120-LI, GSB 120-LI
14.4V: GSR 14.4-2-LI, GSB 14.4-2-LI, GSR 144-2-LI, GSB 144-2-LI
18V: GSR 18-2-LI, GSB 18-2-LI, GSR 180-2-LI, GSB 180-2-LI
GSR 10.8 V LI-2 - 3 601 H68 100, GSR 12-LI - 3 601 J92 901
GSR 12-2-LI - 3 601 H68 101, PS21 - 3 601 J92 910
GSR 12V-15 - 3 601 H68 102, PS21 - 3 601 J92 911
PS31 - 3 601 H68 110, GSR 10.8 V LI - 3 601 J92 9E0
PS31 - 3 601 H68 111, GSR 10.8 V LI - 3 601 J92 9F0
GSR 10.8-2-LI - 3 601 H68 150, GSR 10.8 V LI - 3 601 J92 9G0
GSR 10.8-2-LI - 3 601 H68 180, GSR 10.8 V LI - 3 601 J92 9H0
GSR 12-2-LI - 3 601 H68 181, GSR 12V-15FC - 3 601 JF6 000
GSR 10.8-2-LI - 3 601 H68 1B0, GSR 12V-140FC - 3 601 JF6 010
GSR 10.8-2-LI - 3 601 H68 1C0, GSR 10.8-15 FC - 3 601 JF6 050
GSR 10.8-2-LI - 3 601 H68 1E0, GSR 12V-15FC - 3 601 JF6 080
GSR 10.8-2-LI - 3 601 H68 1G0, GSR 10.8-15 FC - 3 601 JF6 0B0
GSR 10.8-2-LI - 3 601 H68 1H0, GSR 12V-15FC - 3 601 JF6 0E0
GSR 12-2-LI - 3 601 H68 1L0, GSR 12V-15FC - 3 601 JF6 0K0
Package include
Package included:
1x RS550 Electric Motor
